Manufacturer	Schneider Electric
Product line	Modicon
Part number	170ADI34000
Product type	Discrete input module
Input group	1 group of 16 inputs
Input voltage	24 VDC
Input voltage range	-3 to +30 V
Input logic	Positive
Input resistance	4 kOhm
Current consumption	250 mA
Power dissipation	5 W
Response time	3.3 ms
Channel-to-bus isolation	500 VAC
Electrostatic discharge resistance	8 kV
Channel status indicators	16 LEDs
Weight	1.00 lb (0.45 kg)
EAN	3595861000247

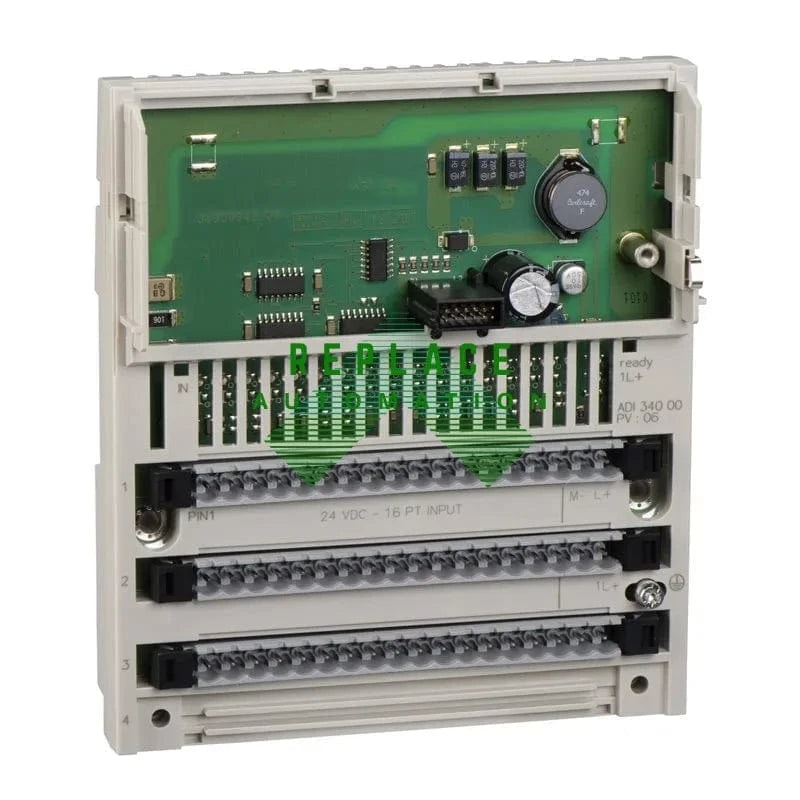

What is the Schneider Electric 170ADI34000?

The 170ADI34000 is a Modicon Momentum discrete input module with 16 inputs arranged in one 16-input group. It is designed for a 24 V DC supply and supports positive input logic.

What input voltage range does the 170ADI34000 accept?

The module accepts an input voltage range of -3 to +30 V, with a nominal operating voltage of 24 V DC. Its input resistance is 4 kOhm.

How quickly does the 170ADI34000 respond to an input signal?

The module has a response time of 3.3 ms.

What isolation does the 170ADI34000 provide?

The module provides 500 VAC isolation between the channels and the bus.

What are the module's power figures?

The 170ADI34000 has a power dissipation rating of 5 W and a current consumption of 250 mA.

How is channel status indicated?

Channel status is indicated locally by 16 LEDs, one for each input.

What protection features are specified for the 170ADI34000?

The module is specified with TC protective treatment and resistance to electrostatic discharge of 8 kV. It is also described as complying with IEC 1131-2 Type 1.

Does the Schneider Electric 170ADI34000 come with a warranty?

Yes. The 170ADI34000 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 170ADI34000 a genuine Schneider Electric part?

The 170ADI34000 is sourced and verified independently. Replace Industrial is not an authorized distributor, affiliate, or representative of Schneider Electric, and all warranties are provided directly by Replace Industrial.

Is the Schneider Electric 170ADI34000 new or used?

We offer the 170ADI34000 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 170ADI34000?

The 170ADI34000 runs on 24 VDC.

What is the Schneider Electric 170ADI34000?

The 170ADI34000 is a Schneider Electric Modicon Momentum Discrete input module.

Schneider Electric

170ADI34000

Rate this product

PLCs Modicon Momentum

Schneider Electric 170ADI34000 is a Modicon Momentum discrete input module with one group of 16 DC inputs. It supports a 24 V DC nominal supply and accepts input voltages from -3 V to +30 V, with positive input logic and 4 kΩ input resistance. The module provides a 3.3 ms response time, 500 VAC channel-to-bus isolation, 5 W power dissipation, and 250 mA current consumption. Sixteen channel-status LEDs support local diagnostics, and the unit is rated for IEC 1131-2 Type 1 operation with TC protective treatment.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Schneider Electric 170ADI34000

The Schneider Electric 170ADI34000 is a Modicon Momentum discrete input module designed for reliable acquisition of digital signals in industrial automation systems. It provides 16 discrete inputs arranged as one 16-input group and is intended for a 24 V DC supply.

The module supports positive input logic and is rated for an input voltage range of -3 to +30 V. Its protective treatment is identified as TC, and it is designed to comply with IEC 1131-2 Type 1.

Key Features

With 16 channels in a single group, the 170ADI34000 consolidates discrete input handling for compact control applications. The 4 kOhm input resistance supports signal acquisition from compatible field devices.

Local channel status is indicated by 16 LEDs, helping operators and maintenance personnel monitor input conditions. The module also provides 500 VAC isolation between the channels and the bus.

Performance and Capacity

The module delivers a response time of 3.3 ms for discrete input signals. Its rated power dissipation is 5 W, with a current consumption of 250 mA during operation.

Electrostatic discharge resistance is rated at 8 kV, supporting dependable operation in industrial environments where transient electrical disturbances may occur.

Installation and Compatibility

The 170ADI34000 is part of the Modicon Momentum product line and is configured as a discrete input module for 24 V DC applications. Its 16-input grouping provides a straightforward capacity for systems requiring a single block of digital inputs.

Installation should follow the applicable system wiring and safety requirements. The module is intended for use within compatible industrial automation and machine-control platforms.

Applications and Industries

This discrete input module is suited to industrial automation applications that require dependable monitoring of switches, sensors, and other digital field devices. Its 16-channel capacity supports centralized input collection in control panels and machine-control systems.

Designed for the Modicon Momentum platform, the 170ADI34000 can be used where standardized discrete input handling, local channel indication, and protection against electrical disturbances are required.
