| UPC | 10662073735929 |
| Brand | Allen-Bradley |
| Series | SLC 500 |
| Outputs | Four (4) |
| Indicators | LEDs |
| Resolution | 14 bits |
| Module Type | Analog Output Module |
| Update Time | 512 microseconds |
| Manufacturer | Rockwell Automation |
| Step Response | 2.5 milliseconds |
| Output Voltage | -10 to +10VDC |
| Backplane Current | (5 Volts) 55 milliamps; (24 Volts DC) 145 milliamps |
| Conversion Method | R-2R Ladder |
| Full Scale Output | 10 VDC |
| Voltage Output Coding | -32,768 to +32,764 |
| Part Number/Catalog No. | 1746-NO4V |
| Backplane Current (5 Volts) | 55 milliamps |
| Backplane Current (24 Volts) | 145 milliamps |
| Ambient Operating Temperature | 0 to 60 degrees Celsius |
Does the Allen-Bradley 1746-NO4V come with a warranty?
Yes. The 1746-NO4V is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1746-NO4V a genuine Allen-Bradley part?
The 1746-NO4V is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1746-NO4V new or used?
We offer the 1746-NO4V in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1746-NO4V?
The 1746-NO4V operates across 0 to 60 degrees Celsius.
What is the Allen-Bradley 1746-NO4V?
The 1746-NO4V is an Allen-Bradley SLC 500 Analog Output Module.

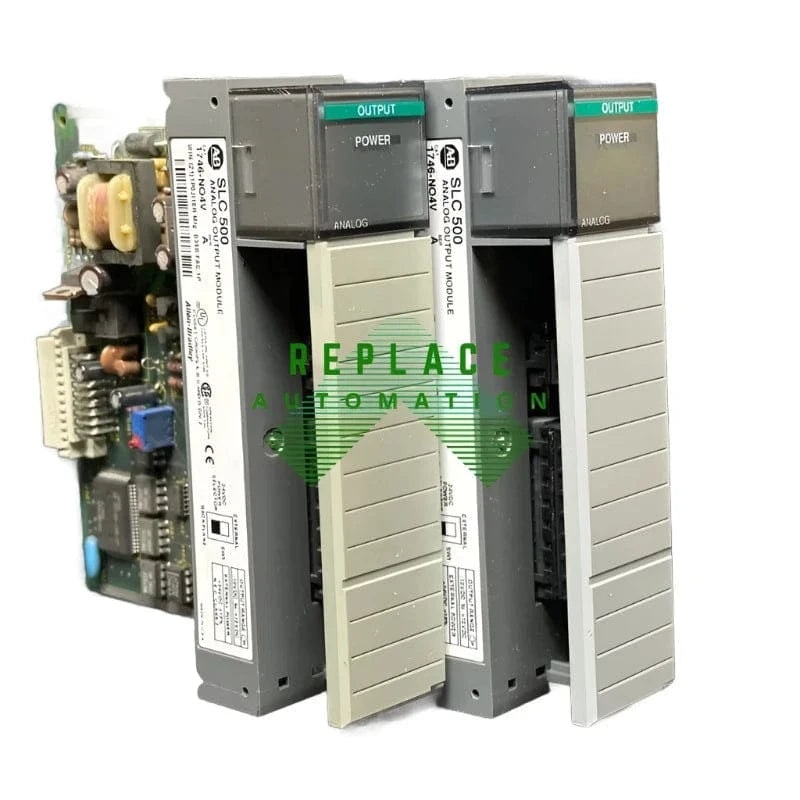

1746-NO4V
The Allen-Bradley 1746-NO4V is an analog output module for the SLC 500 series by Rockwell Automation, supporting four -10 to +10VDC outputs with a 14-bit resolution and 512-microsecond update time. It operates at 0-60°C with LED indicators, and requires 55mA at 5V, or 145mA at 24V from the backplane.
