Is the Allen-Bradley 1747-AENTR new or used?

We offer the 1747-AENTR in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1747-AENTR?

The 1747-AENTR operates across 0 to 60 degrees Celsius.

What is the Allen-Bradley 1747-AENTR?

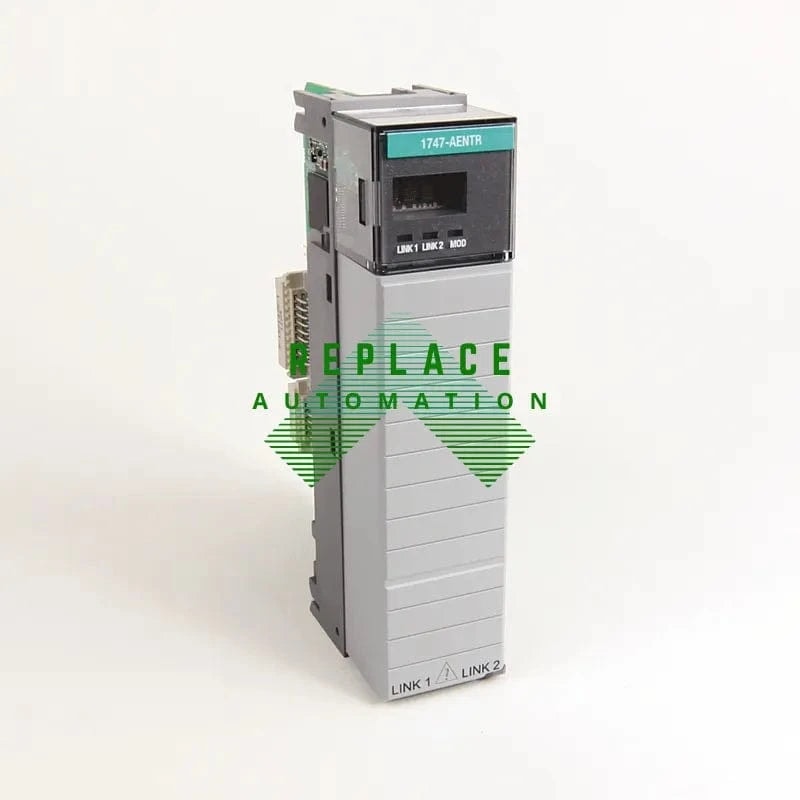

The 1747-AENTR is an Allen-Bradley SLC 500 Ethernet/IP Adapter Module.

UPC	10885630230501
Brand	Allen-Bradley
Series	SLC 500
Weight	0.37 pounds (168 grams)
Firmware	1.001 or later
Location	Slot 0
Enclosure	Open
Dimensions	5.72 x 1.37 x 5.15 inches
Module Type	Ethernet/IP Adapter Module
Manufacturer	Rockwell Automation
Isolation Voltage	50 Volts Continuous
Ethernet Connector	RJ-45, Category 5
Current Consumption	470 mA
Thermal Dissipation	2.49 Watts
Operating Temperature	0 to 60 degrees Celsius
Part Number/Catalog No.	1747-AENTR
Backplane Current (5 Volts)	470 milliamps

Allen-Bradley

1747-AENTR

Rate this product

PLCs SLC 500

The Rockwell Automation 1747-AENTR from the Allen-Bradley brand is an Ethernet/IP Adapter Module for the SLC 500 series. This open-styled module requires firmware version 1.001 or later and connects via an RJ-45 Ethernet port. It operates at 0-60°C, consumes 470mA with 50V isolation, and measures 5.72 x 1.37 x 5.15 inches.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1747-AENTR

The Allen-Bradley 1747-AENTR is a communication module designed by Rockwell Automation as part of the Allen-Bradley SLC 500 system. It enables SLC I/O modules to communicate with an Ethernet/IP network. The 1747-AENTR serves as a bridge between the SLC 500 system's backplane and Ethernet/IP, allowing users to control and monitor their SLC 500 system via an Ethernet connection.

Features of the 1747-AENTR

This Ethernet adapter is equipped with two Ethernet ports for network communication and supports ring topologies through the Device Level Ring (DLR) protocol. It can be used with both copper and fiber optic cables, depending on the network requirements. Moreover, the 1747-AENTR module has diagnostic and status indicators that assist with network health and troubleshooting issues.

Configuration and Compatibility

The 1747-AENTR Ethernet adapter is configured through the RSLogix 500 programming software, ensuring easy setup and integration with existing SLC 500 configurations. It is compatible with a range of SLC 500 processors, including SLC 5/03, SLC 5/04, and SLC 5/05, among others. This compatibility ensures a degree of flexibility and scalability for users who may need to expand or modify their control systems.

Applications of the 1747-AENTR

With its robust communication abilities, the Allen-Bradley 1747-AENTR is particularly suited for industrial environments that require reliable real-time monitoring and control of machinery and processes. Common applications include manufacturing, packaging, material handling, and automation systems. The module's ability to integrate with various I/O configurations makes it a versatile choice for diverse industrial setups. POINT I/O modules are designed to simplify installation, maintenance, and system uptime in industrial environments. With Removal and Insertion Under Power (RIUP), modules can be replaced without shutting down the system, helping minimize disruptions. Integration is streamlined through Add-On Profiles in the Studio 5000 Logix Designer application, allowing seamless use within Integrated Architecture systems. The modular, slide-together design makes installation and removal straightforward, while features like Auto Device Replacement (ADR) help reduce downtime by quickly restoring configurations. A removable wiring system further improves efficiency by saving time during both installation and troubleshooting. These modules can be mounted horizontally or vertically without requiring performance de-rating, and their flexible, modular design allows independent selection of I/O, network interfaces, and termination styles. Additional options, such as configurable modules and conformal coating, along with robust diagnostics capabilities, make POINT I/O a versatile and user-friendly solution for a wide range of applications.
