Is the Allen-Bradley 1756-A10 new or used?

We offer the 1756-A10 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 1756-A10?

The 1756-A10 is an Allen-Bradley ControlLogix 1756 Chassis.

How fast does the 1756-A10 ship?

In-stock orders for the 1756-A10 ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

UPC	10612598129277
Brand	Allen-Bradley
Slots	10
Series	ControlLogix
UNSPSC	32151704
Weight	3.2 pounds (1.45 kilograms)
Mounting	Horizontal
Enclosure	Open
Dimensions	20 x 30 x 8 inches
Module Type	Chassis
Manufacturer	Rockwell Automation
Part Number/Catalog No.	1756-A10
Power Dissipation (Max)	5 Watts
Backplane Current (5 Volts DC)	10 amps
Backplane Current (24 Volts DC)	2.8 Amps

Allen-Bradley

1756-A10

Rate this product

PLCs ControlLogix 1756

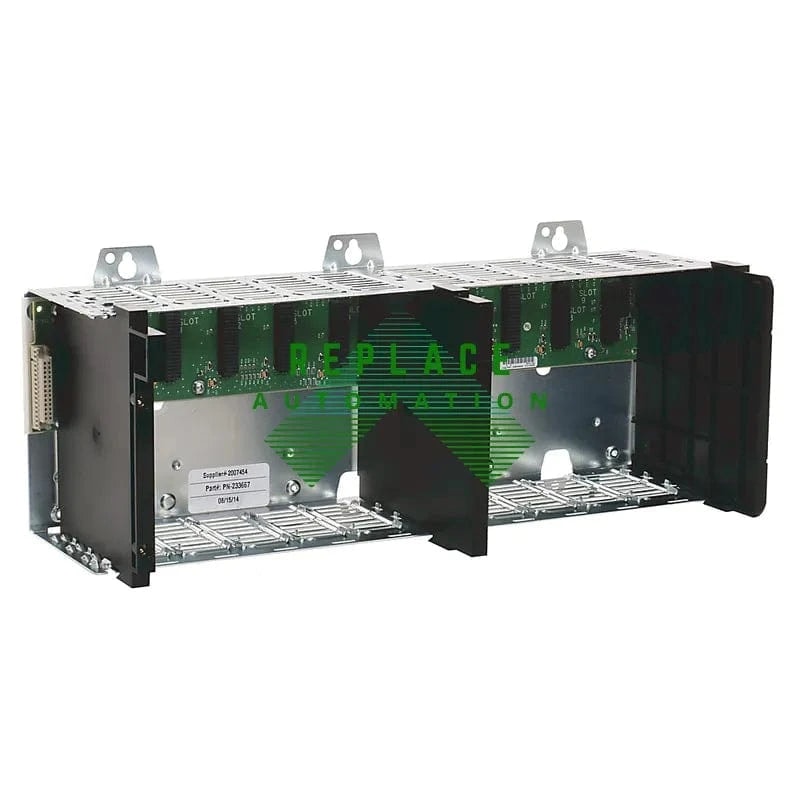

The Allen-Bradley 1756-A10 is a 10-slot ControlLogix chassis by Rockwell Automation designed for modular mounting with a power dissipation of 5W. Its open enclosure measures 20 x 30 x 8 inches, weighs 3.2 pounds, and supports a 5V DC backplane current of 10 amps and a 24V DC current of 2.8 amps.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Introduction to Allen-Bradley 1756-A10

The Allen-Bradley 1756-A10 is a part of Rockwell Automation's ControlLogix platform, which is well-regarded for its reliable performance in industrial automation systems. As a 10-slot chassis, it serves as a foundational component for hosting a variety of modules, including processors, I/O (Input/Output), power supplies, and other specialized modules necessary for comprehensive control applications.

Design and Build

Engineered for a robust industrial environment, the 1756-A10 chassis features a sturdy rack-mounted design. Its construction allows for efficient heat dissipation and provides a secure housing that shields the electronic modules from harsh industrial conditions, such as dust, vibration, and electrical interference. The 10-slot configuration offers ample space for system expansion and flexibility in a compact form factor.

Compatibility and Flexibility

The 1756-A10 chassis is compatible with a diverse range of modules from the ControlLogix family, assuring users that they can tailor the system to meet specific application needs. The device's flexibility is evident in its support for multiple communication protocols and network interfaces, making it an adaptable solution for various operational requirements.

Installation and Maintenance

Installation of the 1756-A10 chassis is streamlined due to its user-friendly design. The backplane provides a direct connection point for modules, which can be inserted or removed easily. This simplifies maintenance and reduces potential downtime, as engineers can quickly replace or upgrade system components without fuss. Moreover, the chassis's design includes features that simplify wiring and reduce installation time.

Performance and Reliability

As with all Allen-Bradley products, the 1756-A10 is designed to deliver high performance and reliability. With its ability to house various processing and I/O modules, the chassis provides the backbone for a system that can handle complex automation tasks with precision and efficiency. The assurance of durability and long operational life makes it a trusted choice for demanding industrial applications.
