Is the Allen-Bradley 1756-IB16I new or used?

We offer the 1756-IB16I in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1756-IB16I?

The 1756-IB16I runs on 12-24 Volts DC Sink-Source and draws 1.5 milliamperes.

What is the Allen-Bradley 1756-IB16I?

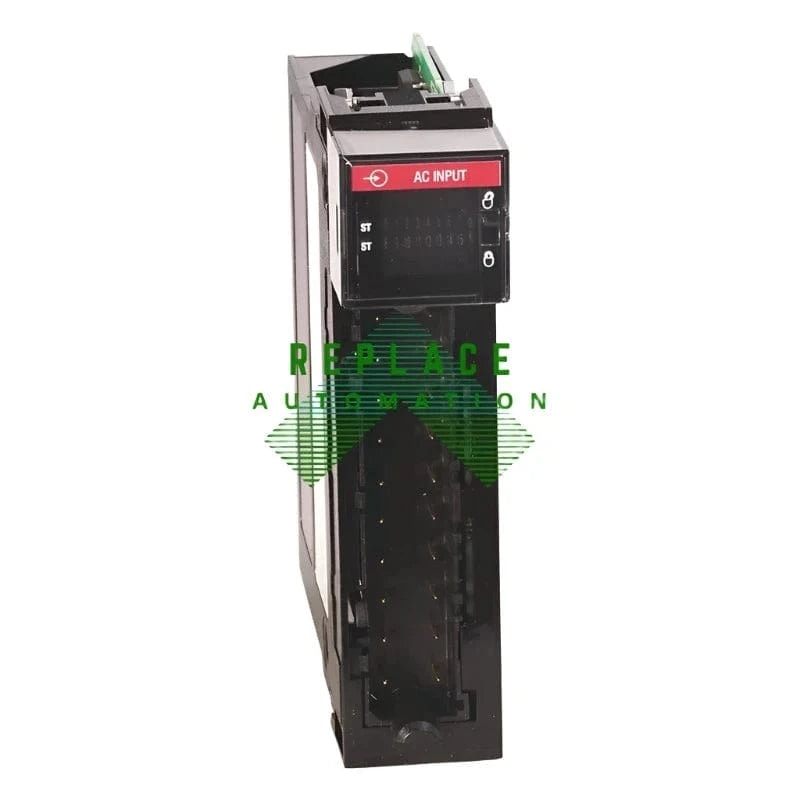

The 1756-IB16I is an Allen-Bradley ControlLogix 1756 Digital DC Isolated Input Module.

UPC	10612598164506
Brand	Allen-Bradley
Inputs	16 Individually Isolated Inputs
Series	ControlLogix
Module Type	Digital DC Isolated Input Module
Manufacturer	Rockwell Automation
Input Voltage	12-24 Volts DC Sink-Source
Input Delay Time	4 milliseconds plus selected filter time
RSLogix 5000 Software	Verson 8.02.00 or later
Operating Voltage Range	10-30 Volts DC
Part Number/Catalog No.	1756-IB16I
Power Dissipation (Max)	5 Watts at 60 degrees Celsius
Maximum Operating Current	10 milliamperes at 30 Volts DC
Minimum Operating Current	2 milliamperes at 10 Volts DC
Removeable Terminal Block(s)	1756-TBCH, 1756-TBS6H
Maximum Input Current, Off-State	1.5 milliamperes

Allen-Bradley

1756-IB16I

Rate this product

Ready to ShipPLCs ControlLogix 1756

The Allen-Bradley 1756-IB16I is a ControlLogix Digital DC Isolated Input Module with 16 individually isolated inputs, operating on a 10-30V DC range with sink-source capabilities. It features a 4ms input delay time, supports up to 10mA input current, and is compatible with the 1756-TBCH and 1756-TBS6H terminal blocks and RSLogix 5000 software version 8.02.00 or later.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1756-IB16I

The Allen-Bradley 1756-IB16I is a digital input module that forms part of the ControlLogix series of programmable automation controllers. It is designed to be used in industrial environments for data acquisition and control. This module provides 16 isolated inputs, which allows it to be used to monitor discrete sensors such as switches, push-buttons, and encoders.

Key Features of the 1756-IB16I

One of the key features of the 1756-IB16I module is its high level of input isolation, which helps to protect the module and the system from electrical noise and transient voltages that can cause damage. The module operates with a 10...30V DC input voltage range. Additionally, it supports various input types, including sink/source, to accommodate different types of input devices.

Installation and Compatibility

The 1756-IB16I input module is compatible with the Allen-Bradley ControlLogix chassis and requires a removable terminal block (RTB) for connections. Users can select from a variety of RTBs to suit their installation requirements. This input module is also designed for easy installation and removal, with a backplane current draw of 125 mA at 5.1V DC and 4 mA at 24V DC.

Diagnostics and Status Indicators

Equipped with built-in diagnostic capabilities, the 1756-IB16I can help in quickly identifying issues within the system, reducing downtime. Each channel has its own status LED indicator, which simplifies troubleshooting by allowing users to easily determine the status of each input signal.

Integration with ControlLogix Systems

As part of the ControlLogix family, the 1756-IB16I can be seamlessly integrated with other ControlLogix modules. It utilizes the RSLogix5000 software platform to simplify configuration, programming, and diagnostics. With its robust design and comprehensive features, the 1756-IB16I is a reliable choice for various industrial applications where isolation and discrete input monitoring are essential.
