| Manufacturer | Allen-Bradley |
| Product Line | ControlLogix |
| Series | 5580 |
| Module Type | ControlLogix Controller |
| User Memory | 3 MB |
| Maximum I/O | 128,000 |
| Maximum Analog I/O | 4,000 |
| Maximum Digital I/O | 128,000 |
| Current Draw (1.2 Volts DC) | 5.0 Miliamperes |
| Current Draw (5.1 Volts) | 1.20 Miliamperes |
| Power Dissipation | 6.2 Watts |
| Thermal Dissipation | 21.2 BTU per hour |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None (Open-Style) |
| Weight | 1.31 lbs (0.60 kg) |
| Maximum Tasks | 32 |
| Maximum Programs per Task | 1,000 |
| Communication Networks | EtherNet/IP, DeviceNet, ControlNet, Remote I/O, Data Highway Plus, SynchLink |
| Ethernet Speeds | 10 Mbps, 100 Mbps, 1000 Mbps |
| Ports | USB 2.0, 1 Gbps Ethernet |
| Conformal Coating | Yes |
| Operating Temperature Range | -25…+70 °C (-13…+158 °F) |
| Programming Languages | Function Block Diagram (FBD), Ladder Diagram (LD), Structured Text (ST), Sequential Function Chart (SFC) |
| EtherNet/IP Nodes | 100 |
What is the user memory capacity of the 1756-L81EK controller?
The 1756-L81EK ControlLogix 5580 series controller features 3 MB of user memory.
What is the maximum number of I/O points supported by the 1756-L81EK?
The controller supports a maximum of 128,000 I/O points, which includes up to 4,000 analog I/O points and 128,000 digital I/O points.
Which communication networks are supported by the 1756-L81EK?
The 1756-L81EK communicates via EtherNet/IP, DeviceNet, ControlNet, Remote I/O, Data Highway Plus, and SynchLink networks. It also supports Ethernet communication speeds of 10 Mbps, 100 Mbps, and 1000 Mbps.
What physical ports are available on the 1756-L81EK controller?
The unit includes USB 2.0 and 1 Gbps Ethernet ports for communication and connectivity.
How many tasks and programs can the 1756-L81EK handle?
The controller supports up to 32 tasks, with a capacity of up to 1,000 programs per task.
Is the 1756-L81EK suitable for harsh or corrosive environments?
Yes, the 1756-L81EK features conformal coating, which provides an extra degree of protection against harsh, corrosive environments. It is designed to withstand temperature ranges from -25°C to +70°C (-13°F to +158°F).
What programming languages are supported by the 1756-L81EK?
The controller supports Function Block Diagram (FBD), Ladder Diagram (LD), Structured Text (ST), and Sequential Function Chart (SFC) programming languages.
What is the power dissipation of the 1756-L81EK?
The power dissipation for the 1756-L81EK is 6.2 Watts, with a thermal dissipation of 21.2 BTU per hour.
Does the Allen-Bradley 1756-L81EK come with a warranty?
Yes. The 1756-L81EK is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-L81EK a genuine Allen-Bradley part?
The 1756-L81EK is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-L81EK new or used?
We offer the 1756-L81EK in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-L81EK?
The 1756-L81EK draws 5.0 Miliamperes and operates across -25…+70 °C (-13…+158 °F).
What is the Allen-Bradley 1756-L81EK?
The 1756-L81EK is an Allen-Bradley ControlLogix 1756 ControlLogix Controller.

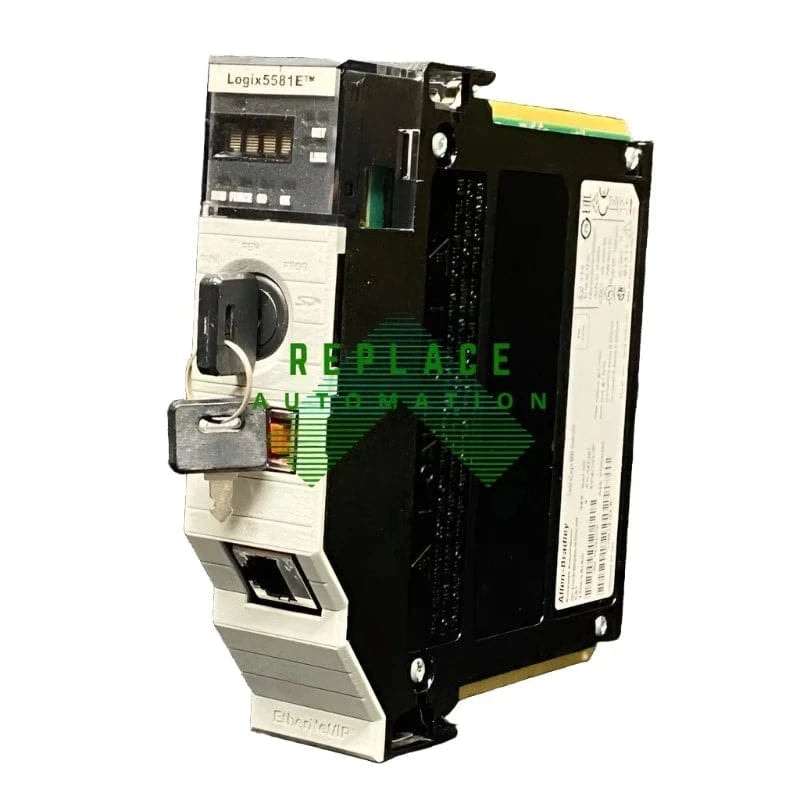

1756-L81EK
The Allen-Bradley 1756-L81EK is a ControlLogix 5580 series standard controller featuring 3 MB of user memory and conformal coating for protection against harsh, corrosive environments. It supports up to 128,000 I/O points and communicates via EtherNet/IP, DeviceNet, ControlNet, Remote I/O, Data Highway Plus, and SynchLink networks. The unit includes USB 2.0 and 1 Gbps Ethernet ports, supports 32 tasks with up to 1,000 programs per task, and is designed for industrial automation applications requiring reliable performance and flexible integration.
