| Pins | 36-Pin Connection |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Weight | 0.3 pounds (0.1 kilograms) |
| Enclosure | None |
| Wire Size | 20 AWG |
| Dimensions | 5.51 x 4.41 x 5.71 inches |
| Module Type | Terminal Block |
| Manufacturer | Rockwell Automation |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Part Number/Catalog No. | 1756-TBE |
| Power Dissipation (Max) | 6.19 Watts |
| Backplane Current (5Volts) | 1,200 milliamps |
| Backplane Current (24 Volts) | 2.5 milliamps |
Does the Allen-Bradley 1756-TBE come with a warranty?
Yes. The 1756-TBE is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-TBE a genuine Allen-Bradley part?
The 1756-TBE is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-TBE new or used?
We offer the 1756-TBE in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-TBE?
The 1756-TBE operates across 32-140 Fahrenheit (0-60 Celsius).
What is the Allen-Bradley 1756-TBE?
The 1756-TBE is an Allen-Bradley ControlLogix 1756 Terminal Block.

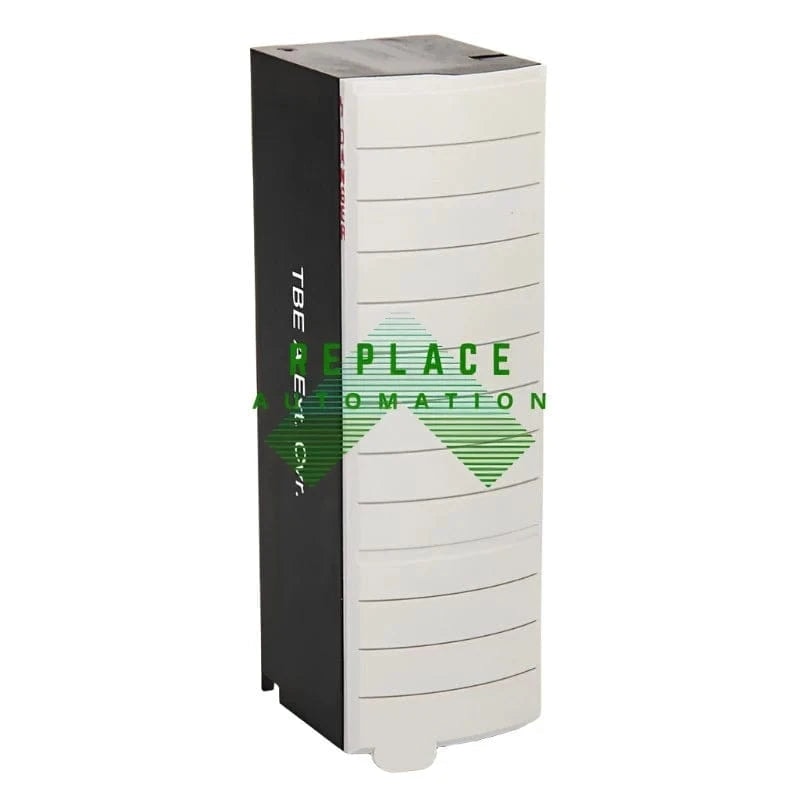

1756-TBE
The Allen-Bradley 1756-TBE from Rockwell Automation is a ControlLogix terminal block module featuring a 36-pin connection with a weight of 0.3 pounds. Designed to accommodate 20 AWG wire sizes, it has dimensions of 5.51 x 4.41 x 5.71 inches and operates between 32-140°F without an enclosure.
