Replace Industrial
UPC10612598207265
BrandAllen-Bradley
SeriesMicroLogix
OutputsEight (8) AC/DC Relay
ManufacturerRockwell Automation
Product TypeRelay Output Module
Signal Delay10 ms
Mounting TypeDIN Rail; Panel Mounting
No. of GroupsTwo (2)
Shipping Weight228 g (0.50 lbs.)
Heat Dissipation2.9 Total Watts
Voltage CategoryAC/DC Normally Open Relay
Channels Per groupFour (4)
Compatible ControllersMicroLogix 1100 / 1200 / 1400
Configuration SoftwareRSLogix 500
Max. Current per point2.5 A
Operating Voltage Range5-265V AC; 5-125V DC
Part Number/Catalog No.1762-OW16
Power Supply Distance Rating6 Modules
Relay Contact Voltage Ratings24-125 VDC;120-240VAC
Allen-Bradley

1762-OW8

4.8 (8)
Ready to ShipPLCsMicroLogix 1200

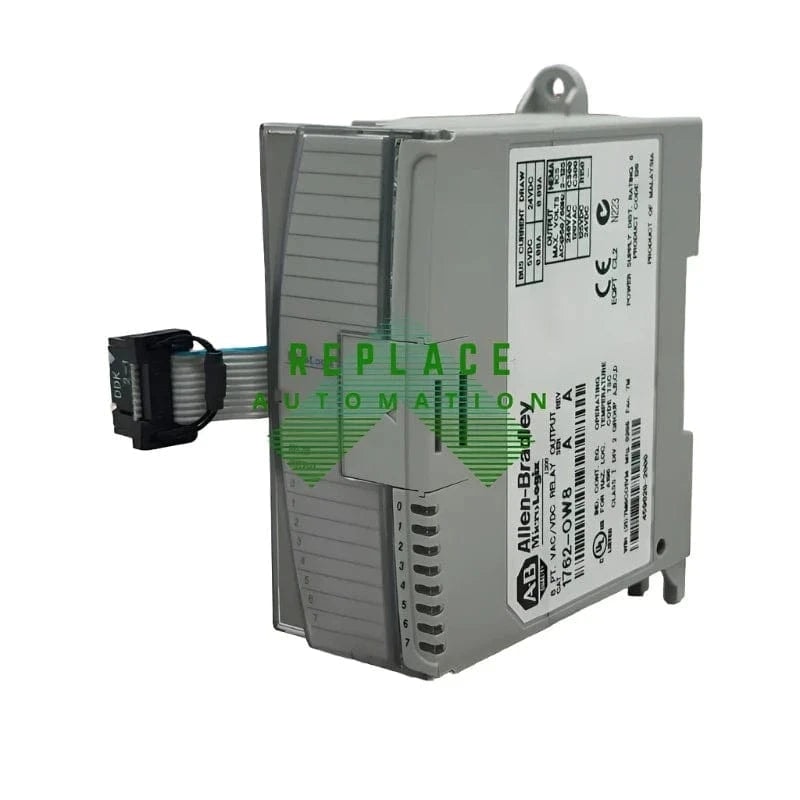

The Allen-Bradley MicroLogix 1200 1762-OW8 is a relay output module by Rockwell Automation designed for use with MicroLogix 1100, 1200, and 1400 series controllers. It features eight AC/DC relay outputs with voltage ratings of 24-125 VDC and 120-240 VAC and can be mounted on a DIN rail or panel. The module supports a maximum current of 2.5 A per point and allows configuration via RSLogix 500 software.

  PDF
