| UPC | 10612598314239 |
| Brand | Allen-Bradley |
| Series | A and B |
| UNSPSC | 32151705 |
| Mounting | Chassis mount; DIN Rail or Panel |
| Software | RSLogix5000 |
| Description | ASCII communication module |
| Handshaking | RTS/CTS Hardware Handshaking Enabled |
| Input Words | 108 |
| Module Type | Communication Interface Module |
| Manufacturer | Industrial Automation / Allen-Bradley |
| Power Rating | 425mA @ 5Vdc |
| Product Line | CompactLogix |
| Product Type | Specialty module |
| Shipping Weight | 2 lbs. |
| Number of Inputs | 2 full duplex (RS-232, RS-422) 2 half duplex (RS-485) |
| Backplane Current | 1.4 Amps at 24 Volts |
| Isolation Voltage | 30 Volts Continuous |
| Power Consumption | 33.6 Watts |
| Power Dissipation | 7.5 Watts |
| Recommended cable | Belden 8761 (Shielded) |
| Temperature Range | 0-62 deg. C (32 to 140 deg. F) |
| Serial Port status | TX FIFO overflow, RX FIFO overflow, RX parity error, handshake error, new data flag |
| Configuration Words | 31 |
| Shipping Dimensions | 8 x 8 x 5 in. |
| Thermal Dissipation | 7.3 BTU/hr. |
| Power Dissipation, Max | 2.13 Watts |
| Part Number/Catalog No. | 1769-ASCII |
| Transmits Transaction ID | 0…255 |
| Serial Input Voltage Signal | 3…25V dc with respect to signal ground (SG) “0â€, Asserted, ON, Space, Active -3…-25V dc with respect to signal ground (SG) “1â€, Disasserted, OFF, Mark, Inactive |
| CompactLogix Power Supply Distance Rating | 4 |
Does the Allen-Bradley 1769-ASCII come with a warranty?
Yes. The 1769-ASCII is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1769-ASCII a genuine Allen-Bradley part?
The 1769-ASCII is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1769-ASCII new or used?
We offer the 1769-ASCII in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1769-ASCII?
The 1769-ASCII is rated at 425mA @ 5Vdc, operates across 0-62 deg. C (32 to 140 deg. F), and runs on 3…25V dc with respect to signal ground (SG) “0â€, Asserted, ON, Space, Active -3…-25V dc with respect to signal ground (SG) “1â€, Disasserted, OFF, Mark, Inactive.
What is the Allen-Bradley 1769-ASCII?
The 1769-ASCII is an Allen-Bradley CompactLogix 1769 Communication Interface Module.
1769-ASCII

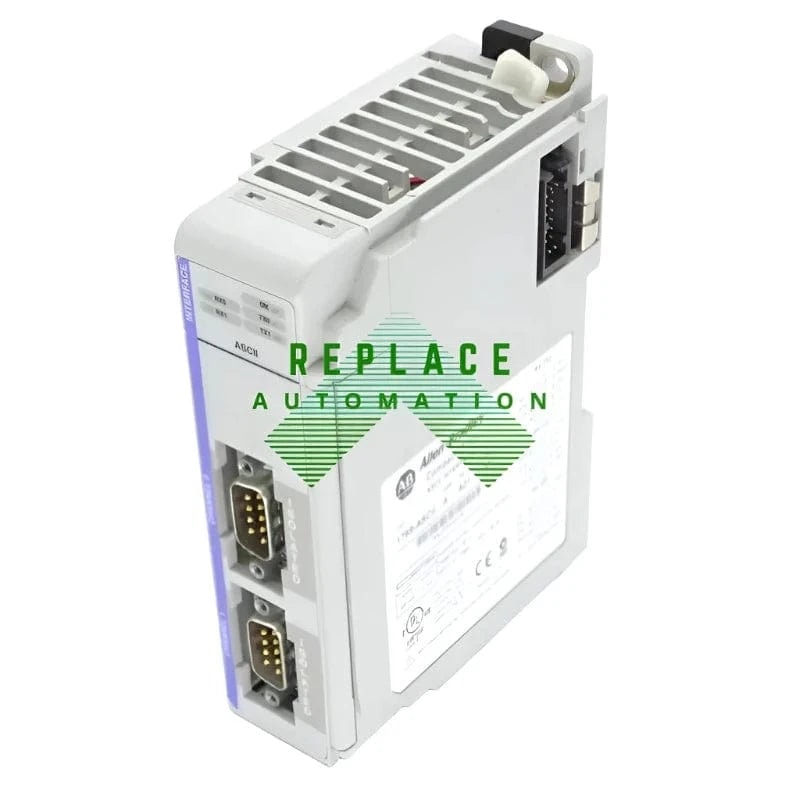

The Allen-Bradley 1769-ASCII is a CompactLogix communication module that enables ASCII data exchanges, compatible with RSLogix5000 software. Designed for chassis or DIN rail mounting, it supports RTS/CTS hardware handshaking and operates within a temperature range of 0-62°C. The module consumes 2.13 Watts with 425mA at 5Vdc power rating.
