What is the Allen-Bradley 1769-IF16C?

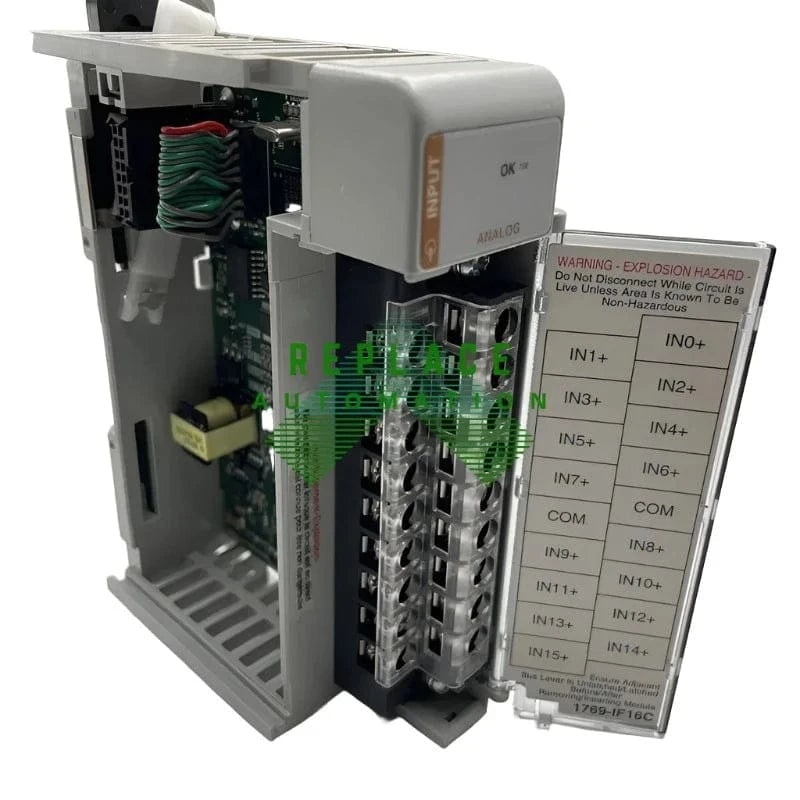

The 1769-IF16C is an Allen-Bradley CompactLogix 1769 16 Point Analog Current Input Module.

UPC	10612598626783
Brand	Allen-Bradley
Series	A and B
Software	RSLogix5000
Input Type	Analog Input
Module Type	16 Point Analog Current Input Module
Manufacturer	Rockwell Automation
Product Line	CompactLogix
Enclosure Type	Open
Shipping Weight	2 pounds
Backplane Current	1.4 Amps at 24 Volts
Isolation Voltage	30 Volts DC
Power Consumption	33.6 Watts
Power Dissipation	7.5 Watts
Communication Cable	16 Point
Shipping Dimensions	8 x 8 x 5 inches
Part Number/Catalog No.	1769-IF16C

Allen-Bradley

1769-IF16C

Rate this product

PLCs CompactLogix 1769

The Rockwell Automation Allen-Bradley 1769-IF16C is a CompactLogix 16-point analog current input module designed for industrial data acquisition. Working with RSLogix5000 software, it facilitates precise input handling with Series A and B compatibility, 30V DC isolation, and 1.4A backplane current on a 24V circuit.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1769-IF16C

The Allen-Bradley 1769-IF16C is an analog input module designed for use with CompactLogix and MicroLogix 1500 systems. It is part of Rockwell Automation's extensive range of automation solutions. This input module helps to convert analog signals from various field devices into digital data that the processor can understand and use for control and monitoring tasks.

Technical Specifications

This module provides 16 differential or 8 differential voltage/current input channels. It operates at a voltage range of 0...10V, 0...5V or 1...5V and a current range of 0...20mA or 4...20mA. Its high-resolution 16-bit input supports precise measurement, and it incorporates Input Filtering for enhanced measurement accuracy in industrial environments susceptible to noise and interferences.

Installation and Compact Design

The 1769-IF16C module is well-suited for compact control solutions due to its small footprint and flexible mounting options. It is easy to install and maintain, as it allows for quick connection to the CompactLogix or MicroLogix system through the backplane. With status LEDs on its face, the module helps in diagnostics and troubleshooting, by indicating the signal and power status.

Configuration and Integration

For configuration, the 1769-IF16C module uses the powerful RSLogix5000 programming environment. Its integration with the Allen-Bradley Integrated Architecture system provides users with seamless scalability and the convenience of using familiar tools and networks. This module supports Over-range and Under-range detection, making it suitable for various complex applications requiring high accuracy analog signal processing.

Safety and Reliability

As with most Allen-Bradley products, the 1769-IF16C is designed with an emphasis on safety and reliability. Its robust construction and compliance with industry standards ensure that it can withstand harsh industrial conditions without compromising performance. The module comes with built-in diagnostic capabilities to reduce system downtime and increase productivity.
