1769-IF4I

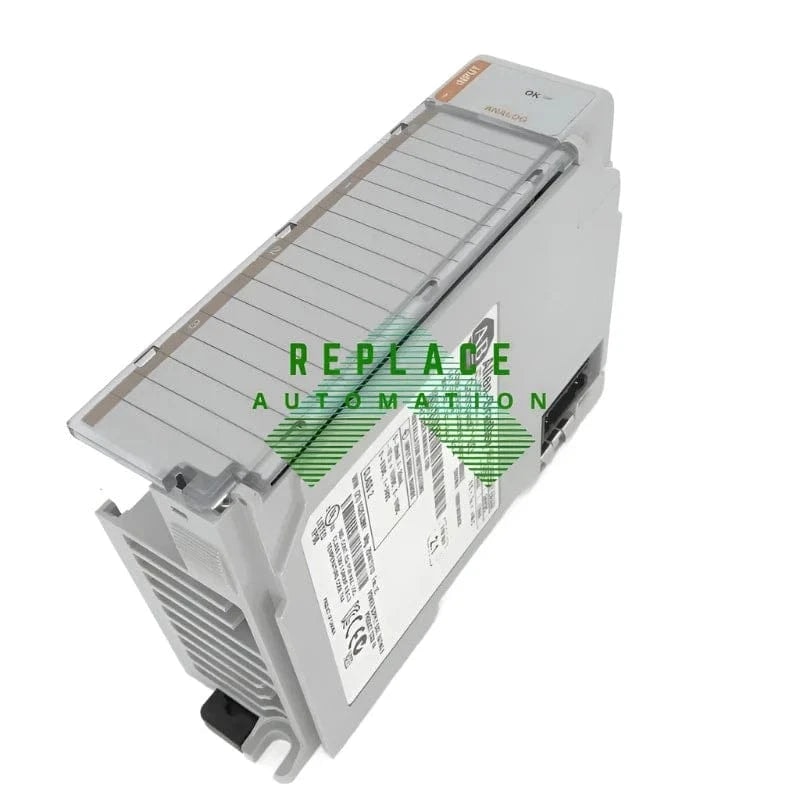

Overview of Allen-Bradley 1769-IF4I

The Allen-Bradley 1769-IF4I is a compact analog input module designed to be used with the Allen-Bradley CompactLogix and MicroLogix 1500 systems. As part of the Rockwell Automation's Compact I/O series, this module is specifically engineered for industrial environments requiring precise data input from analog sensors. It enables the conversion of analog input signals to digital data that can be utilized by the automation controller for monitoring and control applications.

Module Specifications

The 1769-IF4I has four differential or single-ended inputs with an input range that supports various signal types, including ±10V DC, 0-10V DC, ±20 mA, 0-20 mA or 4-20 mA. It offers 16-bit resolution and provides high accuracy in measurement. Its isolation between channel to bus and channel to channel ensures robust performance in noisy environments, while protecting the system from electrical surges and spikes.

Configuration and Wiring

Configuring the 1769-IF4I is done through the RSLogix 5000 or Studio 5000 software, where users can set up the module according to their particular application needs. Wiring the device requires careful attention to the labeled terminals, where the analog inputs must be connected according to the required signal types and grounding practices to maintain signal integrity and avoid potential damage to the device.

Applications and Integration

The 1769-IF4I module is versatile and can be used in a wide range of industrial applications, including process control, automation, and monitoring systems. It integrates seamlessly with other Allen-Bradley devices, offering a complete solution for control systems that require high-speed data acquisition and precise control. Its compact size allows for efficient use of panel space, making it suitable for applications where space is at a premium.
