Is the Allen-Bradley 1769-IQ16 new or used?

We offer the 1769-IQ16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1769-IQ16?

The 1769-IQ16 runs on 10â€¦30V DC @ 30 Â°C (86 Â°F) 10â€¦26.4V DC @ 60 Â°C (140 Â°F).

What is the Allen-Bradley 1769-IQ16?

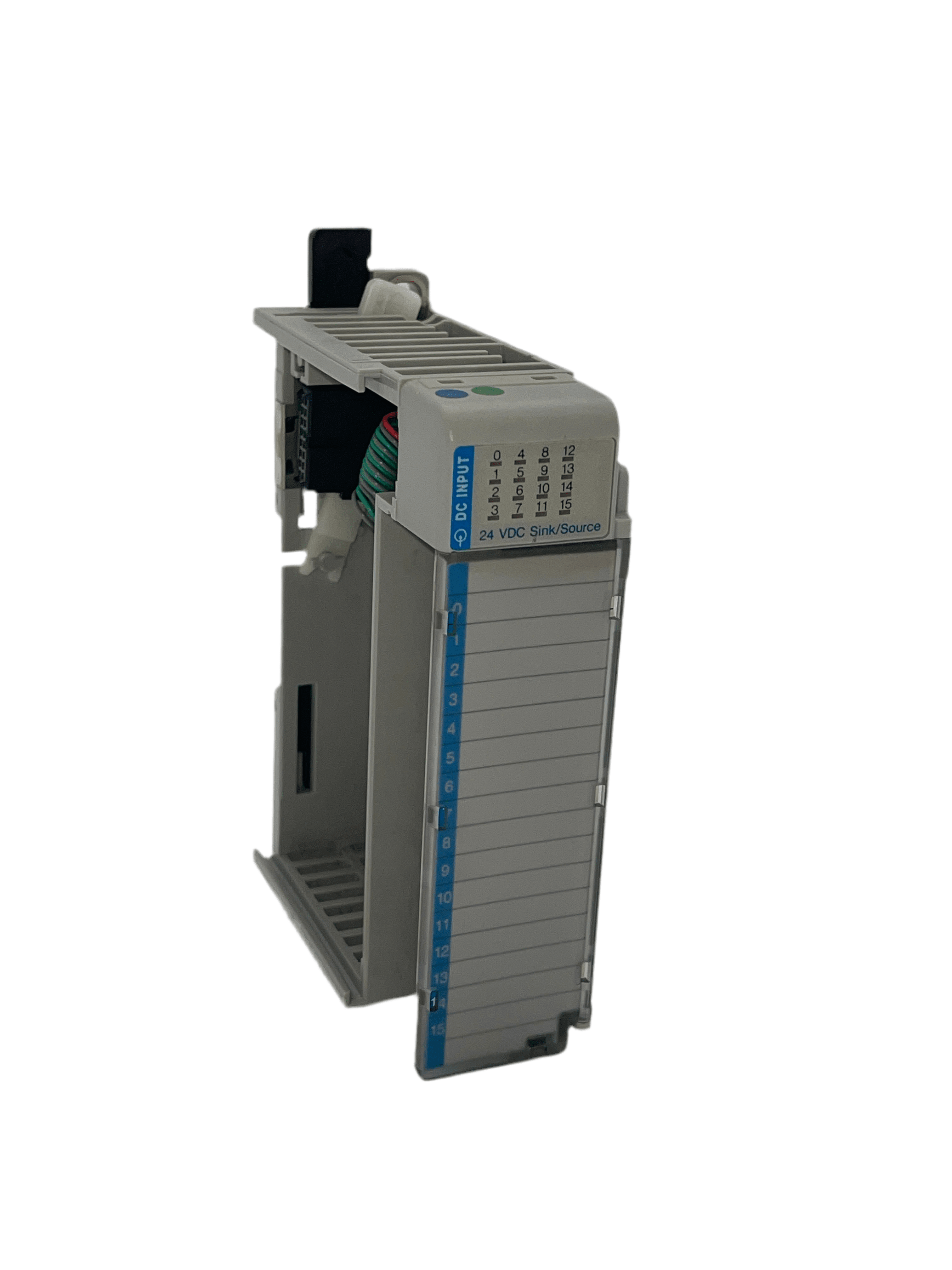

The 1769-IQ16 is an Allen-Bradley CompactLogix 1769 DC Input Module.

UPC	10662468992814
Brand	Allen-Bradley
Series	A and B
Software	RSLogix5000
Wire Size	22-14 AWG (Solid); 22-16 AWG (stranded)
Wire Type	Copper-90 degrees Celsius
Input Type	Digital Input
Module Type	DC Input Module
Manufacturer	Industrial Automation / Allen-Bradley
Power Supply	1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Product Line	CompactLogix
Product Type	Discrete Input Module
No. of Groups	2 groups (8 inputs each)
No. of Inputs	16
Product Family	Compact I/O
Distance Rating	8 Modules
Input delay, On	8 ms
Shipping Weight	2 lbs.
On-state Voltage	10V DC
Voltage Category	24V DC sink/source
Off-state Voltage	5V DC
Wire Size (Solid)	22-14 AWG
Communication Cable	16 Point
Shipping Dimensions	8 x 8 x 5 in.
Programming Software	RSLogix 500; RSLogix 5000 / Studio 5000
Compatible Controllers	MicroLogix 1500; CompactLogix
Working Voltage Rating	30 Volts AC/ 30 Volts DC
Operating Voltage range	10â€¦30V DC @ 30 Â°C (86 Â°F) 10â€¦26.4V DC @ 60 Â°C (140 Â°F)
Part Number/Catalog No.	1769-IQ16
Replacement Terminal Block	1769-RTBN18
Power Supply Distance rating	8

Allen-Bradley

1769-IQ16

Rate this product

Ready to ShipPLCs CompactLogix 1769

The Allen-Bradley 1769-IQ16 is a Compact I/O discrete input module designed for use with CompactLogix and MicroLogix 1500 controllers. This 24V DC sink/source input module has 16 digital inputs, divided into two groups, is compatible with RSLogix5000 software, and suitable for 22-14 AWG wiring. Its compact design benefits industrial automation by optimizing space and simplifying installation.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1769-IQ16

The Allen-Bradley 1769-IQ16 is a CompactLogix 16-point 24V DC sink/source input module. It belongs to the Compact I/O range developed by Rockwell Automation and is designed to be used with the CompactLogix and MicroLogix 1500 systems. The module provides flexibility to users with its input dual-sourcing capabilities, making it suitable for a wide array partner with other modules in a larger system, it helps to meet a variety of digital input needs in a compact format.

Technical Specifications

The 1769-IQ16 module operates with a voltage category of 24V DC and has 16 digital inputs. Each input can act as either a sinking or a sourcing input, giving the user the ability to connect to different types of sensors and input devices. The inputs are organized in two groups of eight, and each group has its own common. This module also offers features like integrated LED status indicators for each input, which assist in troubleshooting by providing real-time feedback on the state of each input.

Installation and Wiring

Designed for easy installation, the 1769-IQ16 has a compact design that allows it to be used in space-constrained applications. It can be mounted using a DIN rail or panel mount and fits within the standard CompactLogix or MicroLogix 1500 chassis. Wiring the inputs to the module is straightforward, with removable terminal blocks that make it easier to connect and disconnect wiring as necessary. However, proper care must be given to the voltage and current requirements to ensure safe and correct operation.

Integration and Communication

This input module communicates with the controller through the backplane of the CompactLogix or MicroLogix system. Data exchange is seamless as the module is automatically detected by the system's I/O configuration. The 1769-IQ16 is also designed to work efficiently in distributed networks, allowing for scalable automation solutions. Additionally, it supports RSLogix5000 programming software, easing the process of integration and setup.

Application and Usage

The Allen-Bradley 1769-IQ16 is used in various industrial and manufacturing environments due to its reliable performance in processing digital inputs. Applications range from automated assembly lines to material handling systems, where accurate and rapid input sensing is crucial. Its compatibility with other Allen-Bradley products allows users to create tailored solutions for complex automation tasks.
