Is the Allen-Bradley 1769-L18ER-BB1B new or used?

We offer the 1769-L18ER-BB1B in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 1769-L18ER-BB1B?

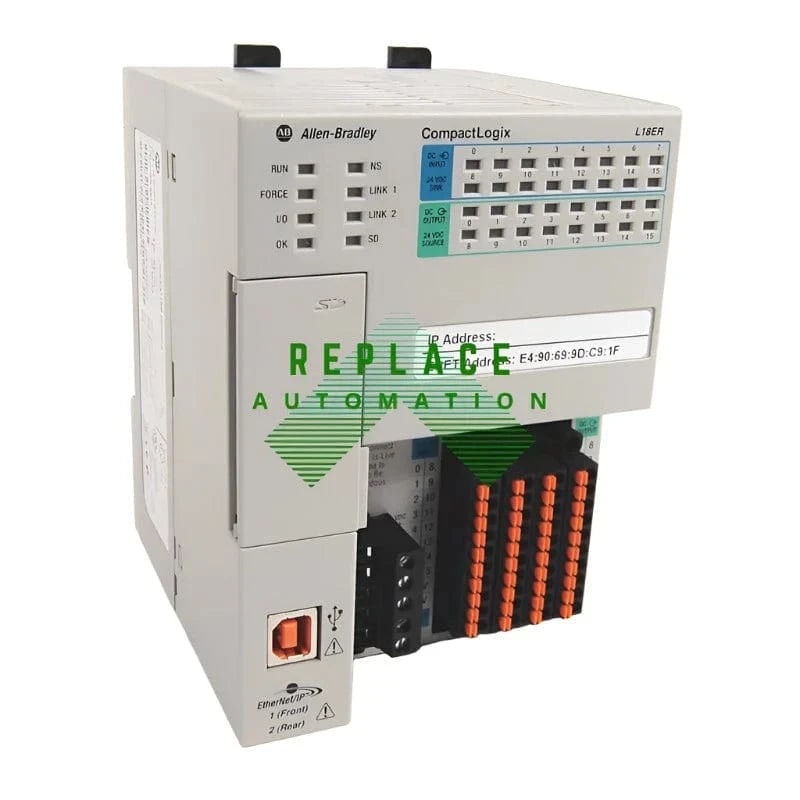

The 1769-L18ER-BB1B is an Allen-Bradley CompactLogix 1769 Processor Module.

How fast does the 1769-L18ER-BB1B ship?

In-stock orders for the 1769-L18ER-BB1B ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

UPC	10885630101221
Brand	Allen-Bradley
Memory	512KB
Series	A and B
Software	RSLogix5000
Wire Type	Copper-90 degrees Celsius
Input Power	24 Volts DC
Module Type	Processor Module
Manufacturer	Rockwell Automation
Product Line	CompactLogix
Communication	Ethernet
Shipping Weight	3 pounds
Wire Size (Solid)	22 to 14 AWG
Communication Cable	6 Point
Shipping Dimensions	11 x 8 x 6 inches
Part Number/Catalog No.	1769-L18ER-BB1B
Replacement Terminal Block Part Number	1769-RTBN18

Allen-Bradley

1769-L18ER-BB1B

Rate this product

PLCs CompactLogix 1769

The Allen-Bradley 1769-L18ER-BB1B is a CompactLogix processor module featuring Ethernet communication, designed for control applications. It operates on 24V DC, utilizes RSLogix5000 software, and has a 512KB memory. This module accommodates a 6-point communication cable and 22 to 14 AWG copper wires, compatible with series A and B.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Introduction to Allen-Bradley 1769-L18ER-BB1B

The Allen-Bradley 1769-L18ER-BB1B is a compact, powerful Programmable Automation Controller (PAC) that is part of the CompactLogix 5370 series. It provides a flexible, low-cost solution for small to mid-size control applications. As an integrated control system, it combines both the computational power of a PLC with the dynamic capabilities of motion control and safety features, making it a versatile solution for a multitude of industrial automation processes.

System Features

The 1769-L18ER-BB1B is equipped with an embedded dual Ethernet port with Device Level Ring (DLR) capability, enabling fault-tolerant connectivity and network resilience. It supports up to 8 I/O modules, granting scalability and flexibility in configuring the system based on the application needs. Furthermore, it is designed with 1 MB memory, which is substantial for small to medium complexity programs.

Programming and Compatibility

Programming the 1769-L18ER-BB1B is done using the Studio 5000 Logix Designer software, allowing for streamlined application development. This interface simplifies the process of programming, managing, and configuring the system to meet custom requirements. Additionally, the controller is compatible with a wide range of Allen-Bradley I/O modules and other peripheral devices, offering a comprehensive automation solution for diverse industrial environments.

Installation and Maintenance

With an emphasis on ease of use, the 1769-L18ER-BBC1B’s compact and modular design makes it ideal for space-constrained applications. The controller can be easily installed on a DIN rail or directly mounted to a panel. Maintenance is straightforward due to its removable terminal blocks, LED status indicators, and built-in diagnostic capabilities, which help in quickly identifying and resolving issues.
