Is the Allen-Bradley 1769-L32E new or used?

We offer the 1769-L32E in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1769-L32E?

The 1769-L32E operates across 0Â° to +60Â°C (+32Â° to +140Â°F).

What is the Allen-Bradley 1769-L32E?

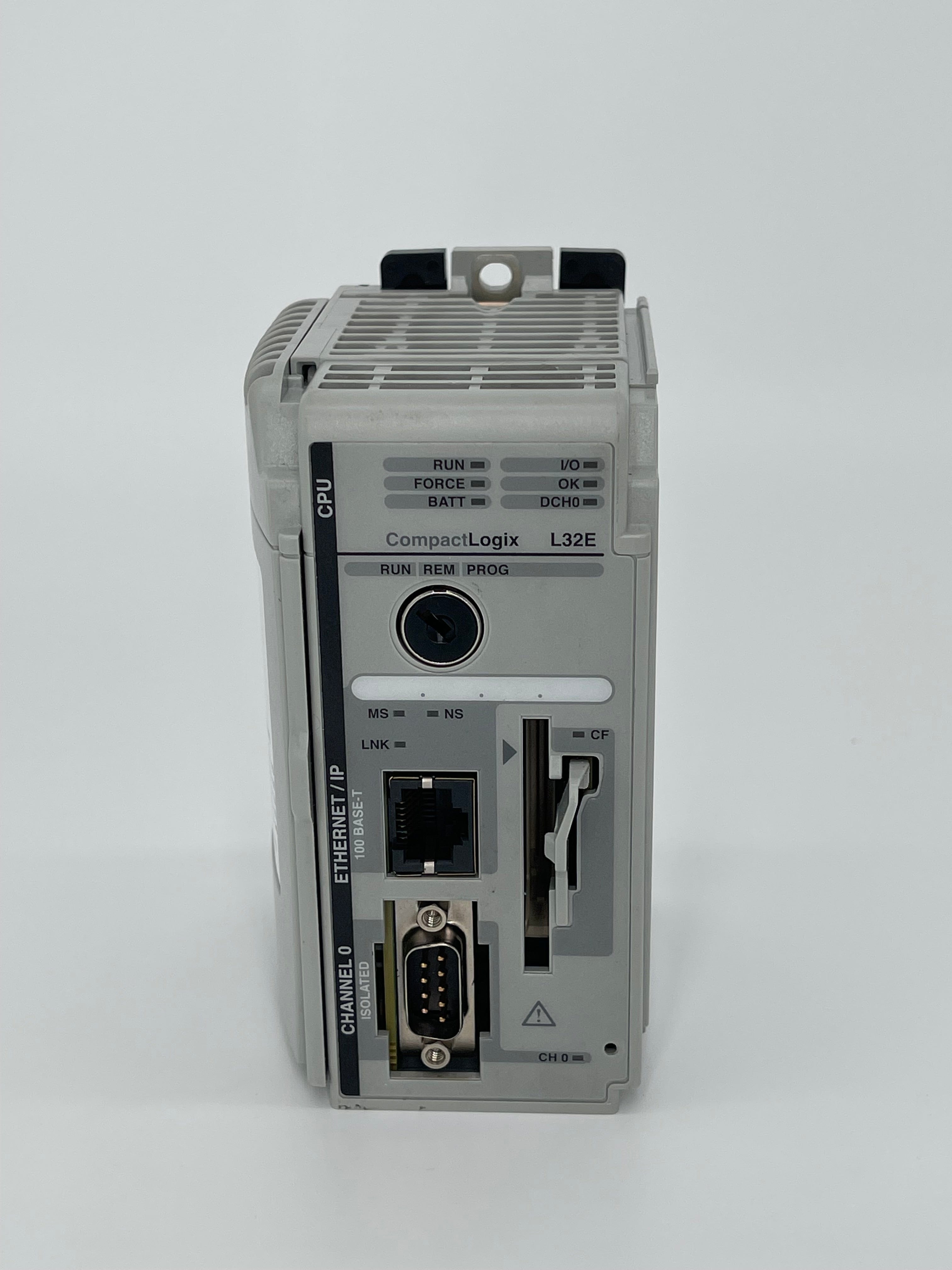

The 1769-L32E is an Allen-Bradley CompactLogix 1769 Processor Module.

UPC	10612598313935
Brand	Allen-Bradley
Memory	750 KB
Series	A and B
UNSPSC	32151705
Battery	1747-BA
Mounting	DIN Rail; Panel Mounting
Software	RSLogix5000
Vibration	Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak
Wire Type	Copper-90 degrees Celsius
Module Type	Processor Module
Manufacturer	Industrial Automation / Allen-Bradley
Product Line	CompactLogix
Product Type	Programmable Automation Controller
Communication	Ethernet/IP
Certifications	c-UL-us; CE; C-Tick; CI
Shipping Weight	2 pounds
Modules Supported	16 I/O Modules
Programming cable	1747-CP3 / 1756-CP3
Wire Size (Solid)	22 to 14 AWG
Communication ports	1 RS232; 1 Ethernet
Shipping Dimensions	8 x 8 x 5 inches
Supported Protocols	DH485; DF1; ASCII; EtherNet
Programming Language	Relay ladder, Structured Text, Function block, SFC
Programming Software	RSLogix 5000 / Studio 5000 Logix Designer
Wire Size (Stranded)	22 to 16 AWG
Operating Temperature	0Â° to +60Â°C (+32Â° to +140Â°F)
Part Number/Catalog No.	1769-L32E
Power supply distance rating	4
Maximum number of I/Obanks supported	3 banks
Maximum number of I/Omodules supported	16 Modules

Allen-Bradley

1769-L32E

Rate this product

PLCs CompactLogix 1769

The Allen-Bradley CompactLogix 1769-L32E is a robust PLC providing Ethernet/IP communication and RSLogix5000 software compatibility. This processor module, with 750 KB memory, supports up to 16 I/O modules across 3 banks. Ideal for industrial automation, it ensures reliable performance with options for various protocols and a temperature range of 0° to +60°C.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradody 1769-L32E

The Allen-Bradley 1769-L32E is a CompactLogix EtherNet Processor part of the CompactLogix family of controllers. It provides a compact, scalable, integrated control solution that combines a variety of input/output (I/O) and communication options. The 1769-L32E is well suited for addressing the needs of control systems in terms of performance, network integration, and compact footprint.

Technical Specifications

This controller features a 750 kilobyte memory for user information and can manage I/O scanning for up to 32 EtherNet/IP devices. The 1769-L32E supports a built-in EtherNet/IP port for peer-to-peer messaging, I/O devices, produced/consumed data, and HMI connections. It also enables web capabilities, allowing devices such as a PC or smartphone to access data and control system information.

Programming and Configuration

The Allen-Bradley 1769-L32E is programmable with RSLogix 5000 software (now known as Studio 5000 Logix Designer), which is a design and configuration software from Rockwell Automation. The software supports ladder diagram, structured text, function block diagram, and sequential function chart languages for versatile programming. The integration of the software with the hardware provides users with a complete solution for automation projects.

Network Integration and Security

With its EtherNet/IP connectivity, the 1769-L32E integrates seamlessly into factory networks allowing for easy data sharing across various devices and platforms. The built-in security features of the EtherNet/IP protocol help to ensure secure communication and protection against unauthorized access, helping to maintain system integrity and safety.

Compact and Robust Design

The 1769-L32E comes in a compact size, making it an excellent solution for space-constrained applications. Despite its small footprint, it is designed to withstand the harsh industrial environments and offers reliable performance in a wide range of operating conditions. It can be easily installed in a control panel along with other Compact I/O modules and has various certifications for global use, including CE, UL, and C-Tick.
