| Category | Drives |
| Function | Motor motion control |
| Operating configuration | Standalone device or grouped with other servo modules into a multi-axis configuration with shared DC, shared AC, shared AC/DC hybrid, or shared DC/AC |
| Supply voltage | 240 V (single phase); 240/480 V (three phase) |
| Control input supply | 24 VDC |
| Continuous output current | 3.5 Amperes (0-peak) |
| Peak output current | 6.3 Amperes |
| Internal shunt power | 30 W |
| Short-circuit current rating | 200,000 A (rms) symmetrical |
| Recommended bus fuse | KTK-R-7 for 240 VAC or 480 VAC, three-phase, UL-rated applications |
| Supported motor size | 0.5 kW to 1.6 kW motors, depending on output voltage |
| Velocity loop | 300 Hz |
| Current loop | 1000 Hz |
| Efficiency | 0.97 |
| Safe Torque Off | Hardwired |
| Integrated Safety Over Ethernet/IP | No |
| Safety ratings | ISO 13849-1, Performance Level d (PL d) and Category 3; SIL CL 2 per IEC 61508, IEC 61800-5-2, and IEC 62061 |
| Protection system | UL 508 C |
| Motor overload protection | Solid-state motor overload protection |
| External temperature sensor input | Input for an external temperature sensor device implanted in the motor |
| Frame size | Frame Size 1 |
| Dimensions | 1.97 x 8.90 x 8.46 in (50 x 226 x 215 mm) |
| Housing space | 50 x 170 x 200 millimeter (1.97 x 6.69 x 7.87 inch) |
| Cable length | 50 meters (164 feet) for standard non-flex cables; 30 meters (98.4 feet) for continuous flex cables |
| Manufacturer | Allen Bradley |
| Product line | Kinetix 5500 Servo Drive |
| Part number | 2198-H008-ERS |
What input voltages does the drive support?
The drive supports 240 V AC single-phase input and 240 V or 480 V AC three-phase input. The listed input ranges are 195–264 V rms for a 240 V nominal supply and 324–528 V rms for a 480 V nominal supply, at 50/60 Hz.
What output power is available by input configuration?
Output power is 0.5 kW at 195–264 V rms single-phase, 0.8 kW at 195–264 V rms three-phase, and 1.6 kW at 324–528 V rms three-phase.
What control input voltage is required?
The control input requires 24 V DC and has a listed control-input current of 2.4 A.
Is Safe Torque Off available?
The drive includes a hardwired Safe Torque Off (STO) feature and hardwired STO functionality.
Which controllers are compatible with the drive?
The drive is compatible with ControlLogix 5570, ControlLogix 5580, CompactLogix 5370, or CompactLogix 5380 controllers; the listed integration is for the hardwired version of Safe Torque Off (STO) functionality.
What motor sizes can the drive support?
The drive supports 0.5 kW to 1.6 kW motors, depending on output voltage.
What cable lengths are supported?
The listed cable-length limits are 50 meters (164 feet) for standard non-flex cables and 30 meters (98.4 feet) for continuous flex cables.
Does the Allen-Bradley 2198-H008-ERS come with a warranty?
Yes. The 2198-H008-ERS is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 2198-H008-ERS a genuine Allen-Bradley part?
The 2198-H008-ERS is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 2198-H008-ERS new or used?
We offer the 2198-H008-ERS in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 2198-H008-ERS?
The 2198-H008-ERS runs on 240 V (single phase); 240/480 V (three phase) and draws 3.5 Amperes (0-peak).
What is the Allen-Bradley 2198-H008-ERS?
The 2198-H008-ERS is part of the Allen-Bradley Kinetix 5500 line.

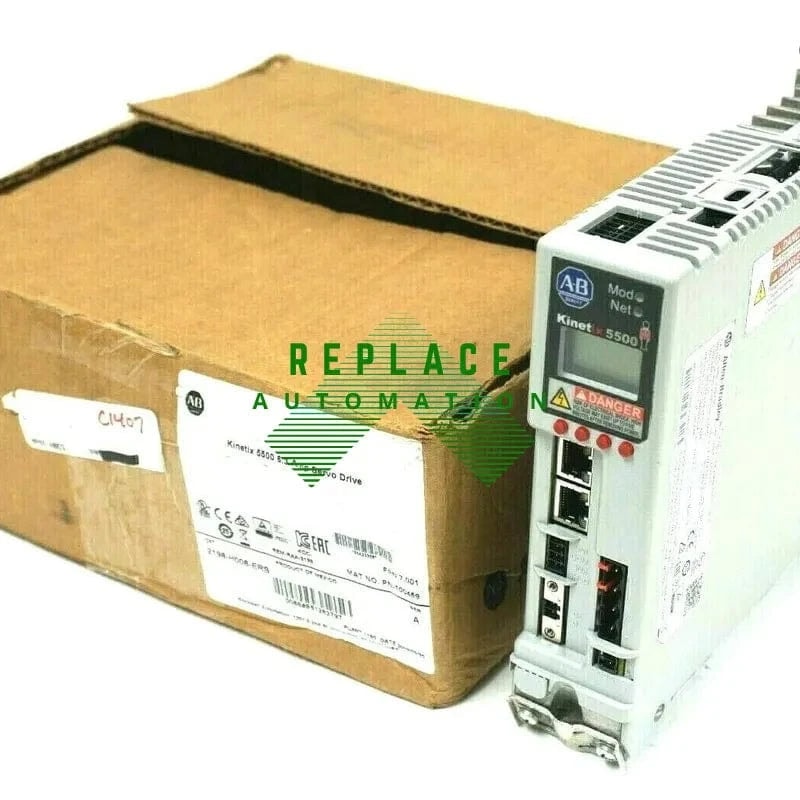

2198-H008-ERS
The Allen-Bradley 2198-H008-ERS Kinetix 5500 Servo Drive delivers precision motion control with a peak current output of 57.5 Amps, accommodating input voltages of 230V and 480V AC three-phase. Ideal for demanding applications, it ensures efficient, reliable performance for complex industrial automation systems.
