Manufacturer	Allen-Bradley
Product Line	PanelView 1000
Product Type	PanelView 1000 Operator Interface
Display Size	10.1 in.
Display Type	Color active matrix TFT
Display Color	Multi-Color
Resolution	640 x 480
Display Area	211 x 158 mm (8.3 x 6.2 in.)
Input Type	Keypad
Function Keys	16 function keys (F1…F16)
Communication Port	DH-485
Printer Port	RS-232
Input Power	85-264 Volts Alternating Current
Input Voltage Range	85…264V AC, 47…63 Hz
Memory	256 Kilobytes
Application Memory	310KB application runtime; 1008 KB nonvolatile memory (application objects plus text and bitmaps)
ATA Memory Card	Supported
Enclosure Type	NEMA Type 12/13 or 4X
Backlight	50,000 hr 1/2 life at 25 °C (77 °F)
Weight	11.06 lbs (5.02 kg)
Product Lifecycle Status	Discontinued/Obsolete

What type of operator input does the 2711-K10C3 have?

The 2711-K10C3 features a keypad as its operator input, including 16 fully programmable function keys (F1 through F16).

What communication ports are available on the 2711-K10C3?

The 2711-K10C3 includes a DH-485 communication port for data transfer and an RS-232 port dedicated to printing. Note that for terminals with DH-485 communication, the RS-232 port is for printing only.

What is the display size and resolution of the 2711-K10C3?

The terminal features a 10.1-inch multi-color active matrix TFT display with a resolution of 640 x 480 pixels and an effective display area of 211 x 158 mm (8.3 x 6.2 in.).

What is the input power requirement for the 2711-K10C3?

The 2711-K10C3 operates on an AC input voltage range of 85 to 264 VAC at 47 to 63 Hz.

How much memory does the 2711-K10C3 have?

The terminal contains 1008 KB of nonvolatile memory for application objects, text, and bitmaps, along with 310 KB of application runtime memory.

What enclosure rating is the 2711-K10C3 designed for?

The 2711-K10C3 is designed for installation in a NEMA Type 12/13 or NEMA 4X rated enclosure.

Does the 2711-K10C3 require a license to run the HMI application?

No. Once the developed HMI application is downloaded to the operator terminal, it may be launched to perform the designed HMI functionalities without a separate license.

Does the Allen-Bradley 2711-K10C3 come with a warranty?

Yes. The 2711-K10C3 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 2711-K10C3 a genuine Allen-Bradley part?

The 2711-K10C3 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.

Is the Allen-Bradley 2711-K10C3 new or used?

We offer the 2711-K10C3 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 2711-K10C3?

The 2711-K10C3 runs on 85…264V AC, 47…63 Hz.

What is the Allen-Bradley 2711-K10C3?

The 2711-K10C3 is an Allen-Bradley Panelview 1000 PanelView 1000 Operator Interface.

Allen-Bradley

2711-K10C3

Rate this product

HMIs Panelview 1000

The 2711-K10C3 is a robust Allen Bradley PanelView 1000 Color terminal that provides a vibrant, interactive display for controlling and monitoring industrial machines. Its 10-inch screen and intuitive interface offer a user-friendly experience, making it an essential component for streamlining operations in various manufacturing environments.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 2711-K10C3

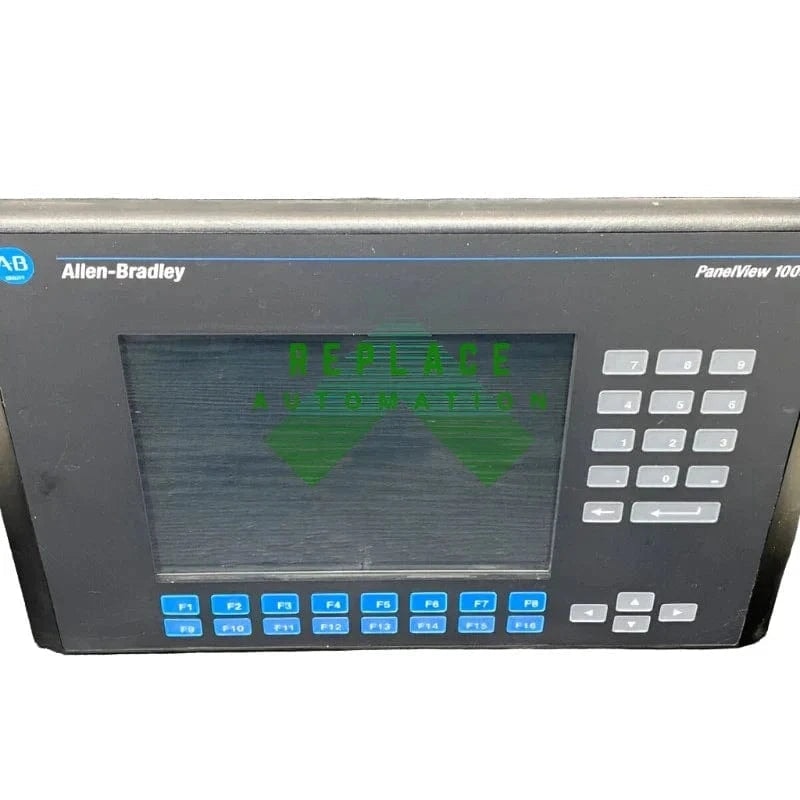

The Allen-Bradley 2711-K10C3 is a PanelView 1000 Standard Operator Terminal designed for industrial machine control and monitoring. This robust HMI unit features a 10.1-inch multi-color display and a keypad interface, providing operators with a clear and interactive view of process data. As part of the PanelView Standard product family, it is engineered to deliver reliable performance in demanding manufacturing environments.

Currently listed as discontinued or obsolete by the manufacturer, the 2711-K10C3 remains a critical component for maintaining existing industrial systems. It supports the PanelBuilder 32 software for application development and offers a durable design suitable for long-term operation in various industrial settings.

Key Features

The terminal is equipped with a 10.1-inch color active matrix TFT display with a resolution of 640 x 480 pixels and an effective display area of 211 x 158 mm (8.3 x 6.2 in.). It features 16 fully programmable function keys (F1 through F16) for intuitive operator input. The unit includes an RS-232 port dedicated to printing and supports ATA memory cards for expanded storage capabilities.

Power is supplied via an external 85 to 264 VAC source at 47 to 63 Hz. The terminal is housed in a NEMA Type 12/13 or 4X rated enclosure, ensuring protection against dust and water ingress. The backlight is rated for a 50,000-hour half-life at 25 °C (77 °F), ensuring consistent visibility over extended periods of use.

Performance and Capacity

The 2711-K10C3 utilizes 1008 KB of nonvolatile memory for application objects, text, and bitmaps, along with 310 KB of application runtime memory. This configuration allows for the storage and execution of complex HMI applications without the need for external licensing once the application is downloaded to the terminal. The device supports fixed palettes of 32 standard EGA colors, providing clear visual differentiation for process variables and alarms.

Communication is handled via a DH-485 interface, which is used for both data exchange with controllers and for uploading or downloading applications. The terminal is compatible with a range of Allen-Bradley controllers, including PLC, SLC500, MicroLogix, CompactLogix, and ControlLogix systems, facilitating seamless integration into existing control architectures.

Installation and Compatibility

Installation of the 2711-K10C3 requires the use of SELV power supplies as the main power source. Proper space must be allowed for airflow, mounting, maintenance, and the installation of memory cards. The terminal is designed to be mounted in enclosures rated NEMA Type 12/13 or NEMA 4X. Configuration tasks, including printer setup and memory card addition, should be performed according to the manufacturer's manual after installation.

The unit supports multiple revisions, including Series A through F and Series X. Accessories such as function key legend inserts, anti-glare overlays, backlight replacements, and real-time clock replacements are available to support maintenance and customization. The ASCII scratchpad feature is available with a keyboard in four languages: Spanish, French, Italian, and German.

Applications and Industries

The 2711-K10C3 is suitable for a wide range of industrial applications where real-time monitoring and control are required. Its rugged hardware and scalable design make it appropriate for use in manufacturing, process control, and machinery operation environments. The terminal provides a direct interface to the process or machine, enabling operators to monitor status, adjust parameters, and respond to alarms efficiently.

Given its compatibility with major Allen-Bradley controller lines, the 2711-K10C3 is a versatile solution for industries that rely on Rockwell Automation control systems. It serves as a reliable operator interface for both new installations and the maintenance of legacy systems, ensuring continuity in industrial operations.
