Is the Allen-Bradley 5069-SERIAL new or used?

We offer the 5069-SERIAL in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 5069-SERIAL?

The 5069-SERIAL is part of the Allen-Bradley CompactLogix 5069 line.

How fast does the 5069-SERIAL ship?

In-stock orders for the 5069-SERIAL ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

Brand	Allen-Bradley
Category	IO Modules
Sub Brand	CompactLogix
Special Features	Standard

Allen-Bradley

5069-SERIAL

Rate this product

PLCs CompactLogix 5069

The Allen-Bradley 5069-SERIAL module from the CompactLogix category is a versatile IO interface featuring 2-channel support for multiple protocols including Generic ASCII, Modbus RTU/ASCII, DF1, and DH485. It accommodates RS232C, RS422, and RS485 wiring, showcasing its standard special features for diverse industrial communications.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

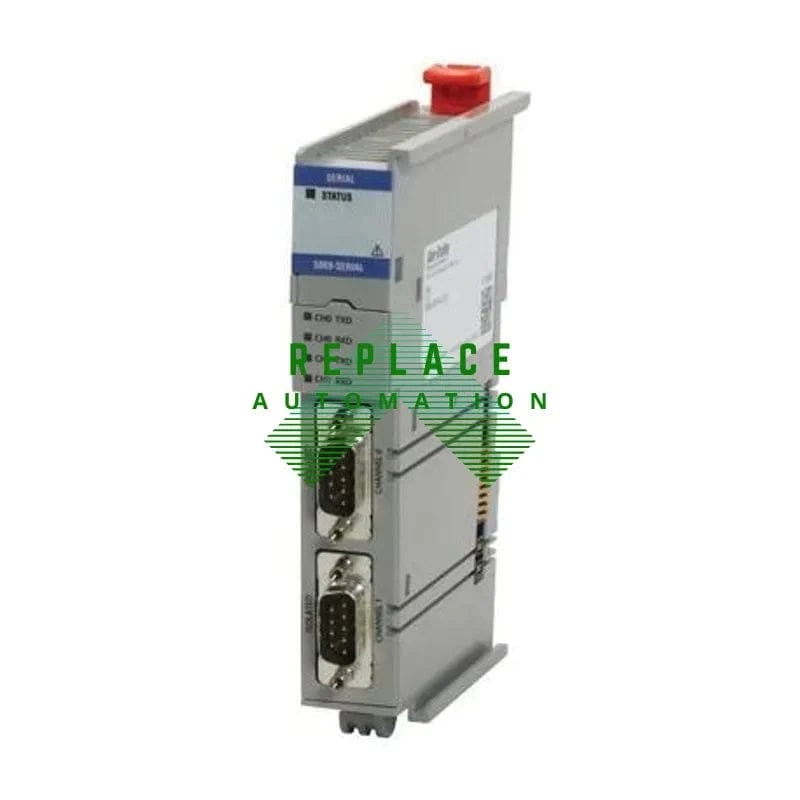

Introduction to Allen-Bradley 5069-SERIAL

The Allen-Bradley 5069-SERIAL is a CompactLogix serial I/O module designed to add serial communication capabilities to Allen-Bradley 5069 CompactLogix systems. It is part of Rockwell Automation's extensive line of industrial automation hardware and provides a reliable solution for interfacing with devices that utilize serial communication protocols.

Key Features of the 5069-SERIAL

This module supports RS-232, RS-422, and RS-485 communication standards, making it versatile and compatible with a wide range of devices. The 5069-SERIAL is designed for easy installation in a 5069 CompactLogix chassis and seamlessly integrates with the Studio 5000 programming environment. It offers isolated serial ports to protect against electrical noise and transient voltage, ensuring stable and secure communications in harsh industrial environments.

Applications of the 5069-SERIAL Module

The 5069-SERIAL is suitable for various applications that require serial data exchange, such as bar code readers, printers, weigh scales, and HMI (Human Machine Interface) systems. Its flexibility allows it to be used in industries like manufacturing, automotive, food and beverage, and pharmaceuticals, providing efficient data transmission and contributing to automated process control.

Configuration and Usage

Configuring the 5069-SERIAL module is user-friendly, as it can be done using the Studio 5000 software. Users can set up the serial port parameters, including baud rate, parity, data bits, and stop bits, to match the requirements of the connected devices. The module also supports ASCII/RTU, DF1, and DH-485 communication protocols, which users can select based on their specific application needs.

Benefits of Using the 5069-SERIAL

The integration of the 5069-SERIAL module within a CompactLogix system improves communication efficiency and helps to reduce wiring complexity and costs. With enhanced diagnostics and status indicators, troubleshooting becomes more straightforward, minimizing downtime and increasing overall system reliability. By leveraging the Allen-Bradley 5069-SERIAL, businesses can achieve better connectivity and control in their automation processes.
