Manufacturer	Siemens
Product Type	SIMODRIVE 611 Power Module
Product Line	SIMODRIVE
Part Number	6SN1123-1AB00-0BA1
EAN	4025515019527
Weight	9.31 lbs (4.22 kg)
Current Rating	25 A
Feedrate Current	9 A
Main Spindle Current	8 A
Axis	2-axis
Operating Temperature Range	0°C to 45°C
Cooling	Internal heat dissipation
Application	CNC systems, motor control
Input Voltage	380-480 V AC
Output Voltage	0-600 V DC
Country of Origin	Germany
Tariff/Customs Code EU	85049090
Tariff/Customs Code US	8504909690
ECCN	N
AL	N
Successor Part	6SN1123-1AB00-0BA2

What is the part number and product type of the Siemens 6SN1123-1AB00-0BA1?

The part number is 6SN1123-1AB00-0BA1, and it is a SIMODRIVE 611 Power Module manufactured by Siemens.

What are the current ratings for the Siemens 6SN1123-1AB00-0BA1?

The module has a total current rating of 25 A, with specific ratings of 9 A for feedrate and 8 A for the main spindle.

What are the input and output voltage specifications for this power module?

The module accepts an input voltage of 380-480 V AC and produces an output voltage adjustable from 0 to 600 V DC.

How many axes does the Siemens 6SN1123-1AB00-0BA1 support?

This power module is designed for 2-axis operations.

What is the operating temperature range and cooling method for the 6SN1123-1AB00-0BA1?

The module operates within a temperature range of 0°C to 45°C and utilizes internal heat dissipation for cooling.

Is the Siemens 6SN1123-1AB00-0BA1 currently in production?

The product was discontinued by the manufacturer and cancelled since September 30, 2014. The successor part number is 6SN1123-1AB00-0BA2.

What is the weight of the Siemens 6SN1123-1AB00-0BA1?

Reference data lists the weight as approximately 4.22 kg (9.31 lbs) to 6.5 kg (14.33 lbs), depending on the source.

Does the Siemens 6SN1123-1AB00-0BA1 come with a warranty?

Yes. The 6SN1123-1AB00-0BA1 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 6SN1123-1AB00-0BA1 a genuine Siemens part?

The 6SN1123-1AB00-0BA1 is sourced and verified independently. Replace Industrial is not an authorized distributor, affiliate, or representative of Siemens, and all warranties are provided directly by Replace Industrial.

Is the Siemens 6SN1123-1AB00-0BA1 new or used?

We offer the 6SN1123-1AB00-0BA1 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 6SN1123-1AB00-0BA1?

The 6SN1123-1AB00-0BA1 draws 25 A, operates across 0°C to 45°C, and runs on 380-480 V AC.

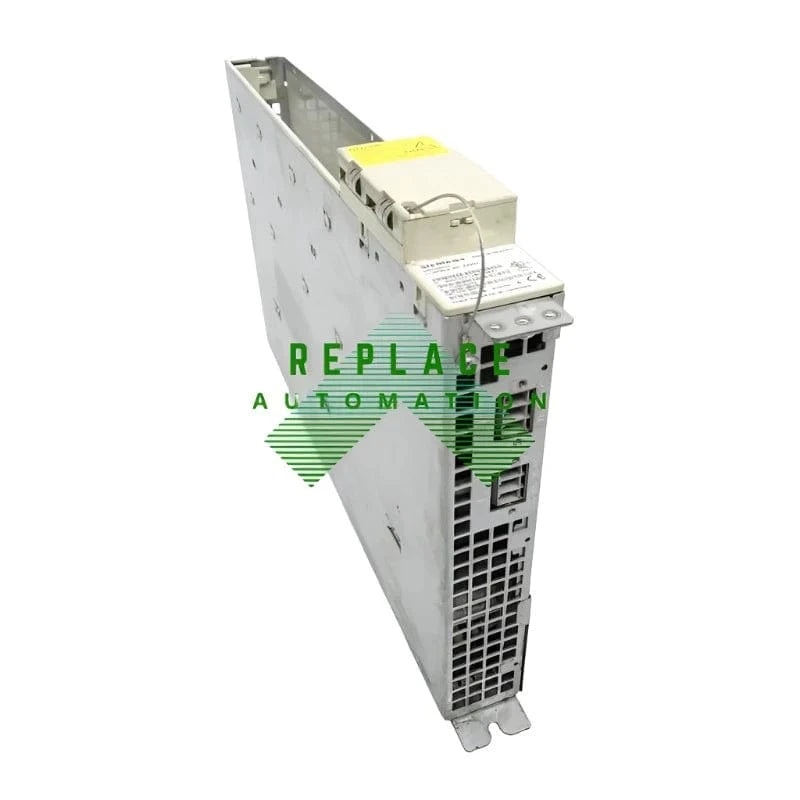

What is the Siemens 6SN1123-1AB00-0BA1?

The 6SN1123-1AB00-0BA1 is a Siemens Simodrive 611 SIMODRIVE 611 Power Module.

Siemens

6SN1123-1AB00-0BA1

Rate this product

Drives Simodrive 611

The Siemens 6SN1123-1AB00-0BA1 is a Simodrive power module designed to drive a range of motors with precision, integrating seamlessly into advanced industrial automation systems, offering reliable performance and efficient operation for complex motion control applications.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Siemens 6SN1123-1AB00-0BA1

The Siemens 6SN1123-1AB00-0BA1 is a power module from the SIMODRIVE 611 series, engineered for precision motor control within advanced industrial automation systems. This unit is designed to manage dual-axis operations, providing reliable power distribution for complex motion control tasks in CNC environments.

As a component of the SIMODRIVE product line, this module integrates seamlessly into machinery configurations, offering a robust solution for driving motors with high accuracy. It is a spare part available for systems requiring specific voltage and current characteristics for optimal performance.

Key Features

This power module features a 2-axis configuration, allowing it to control two separate motor axes simultaneously. It utilizes internal heat dissipation to maintain stable operating temperatures, eliminating the need for external cooling fans in many installations. The unit is rated for a total current of 25 A, with specific allocations for different motor types.

The module accepts an input voltage range of 380 to 480 V AC and produces an adjustable output voltage from 0 to 600 V DC. This versatility in voltage output makes it suitable for a wide range of motor control applications, ensuring flexibility in system design and operation.

Performance and Capacity

The 6SN1123-1AB00-0BA1 is rated for a total current of 25 A. This capacity is distributed to support specific motor functions, with a feedrate rating of 9 A and a main spindle rating of 8 A. These specifications ensure efficient energy delivery for the respective axes, supporting precise motion control in demanding applications.

Designed to operate within a temperature range of 0°C to 45°C, the module maintains consistent performance under standard industrial conditions. The internal cooling design aids in thermal management, contributing to the longevity and reliability of the power module during continuous operation.

Installation and Compatibility

With a weight of approximately 4.22 kg (9.31 lbs), the module is designed for straightforward installation and handling within industrial cabinets. It is compatible with SIMODRIVE 611 systems and is intended for use in CNC systems and general motor control applications. The unit is a spare part, ensuring availability for maintenance and replacement purposes.

Manufactured in Germany, this module meets international standards for drive technology. It is part of the Siemens drive technology portfolio, specifically categorized under SIMODRIVE, ensuring compatibility with other components in the same ecosystem for integrated motion control solutions.

Applications and Industries

The 6SN1123-1AB00-0BA1 is primarily used in CNC systems and motor control applications where precision and reliability are critical. It is suitable for industries that rely on complex motion control, such as manufacturing, machining, and automation, where dual-axis control is required for feedrate and main spindle operations.

This power module supports efficient operation in advanced industrial automation systems, providing the necessary power and control for motors in various configurations. Its ability to handle specific current ratings for feedrate and spindle motors makes it a valuable component for optimizing performance in precision machinery.
