| Phase | 3 phase |
| Supply | Internal supply for logic inputs 19...30 V 100 mA overload and short-circuit protection Internal supply for reference potentiometer (2.2 to 10 kOhm) 10...10.8 V 10 mA overload and short-circuit protection |
| EMC filter | Integrated |
| Option card | Communication card CANopen daisy chain Communication card DeviceNet Communication card Fipio Communication card Modbus TCP Communication card Profibus DP |
| Speed range | 1…50 |
| Line current | 2.2 A 380 V, Isc = 5 kA 1.7 A 500 V |
| Apparent power | 1.5 kVA |
| Assembly style | With heat sink |
| Motor power kW | 0.37 kW |
| component name | ATV312 |
| Range of Product | Altivar 312 |
| Supply frequency | 50...60 Hz - 5...5 % |
| Product destination | Asynchronous motors |
| Electrical connection | Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 0.00 in² (2.5 mm²) AWG 14 L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 0.01 in² (5 mm²) AWG 10 |
| Power dissipation in W | 32 W at nominal load |
| IP degree of protection | IP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part IP41 on upper part |
| Maximum transient current | 2.3 A 60 s |
| Product or Component Type | Variable speed drive |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Maximum Horse Power Rating | 0.5 hp |
| communication port protocol | CANopen Modbus |
| Product Specific Application | Simple machine |
| Asynchronous motor control profile | Factory set : constant torque Sensorless flux vector control with PWM type motor control signal |
Does the Schneider Electric ATV312H037N4 come with a warranty?
Yes. The ATV312H037N4 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this ATV312H037N4 a genuine Schneider Electric part?
The ATV312H037N4 is sourced and verified independently. Replace Industrial is not an authorized distributor, affiliate, or representative of Schneider Electric, and all warranties are provided directly by Replace Industrial.
Is the Schneider Electric ATV312H037N4 new or used?
We offer the ATV312H037N4 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the ATV312H037N4?
The ATV312H037N4 is rated at 0.37 kW, carries IP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part IP41 on upper part protection, and runs on 380...500 V - 15...10 %.
What is the Schneider Electric ATV312H037N4?
The ATV312H037N4 is a Schneider Electric ATV 312 Variable speed drive.

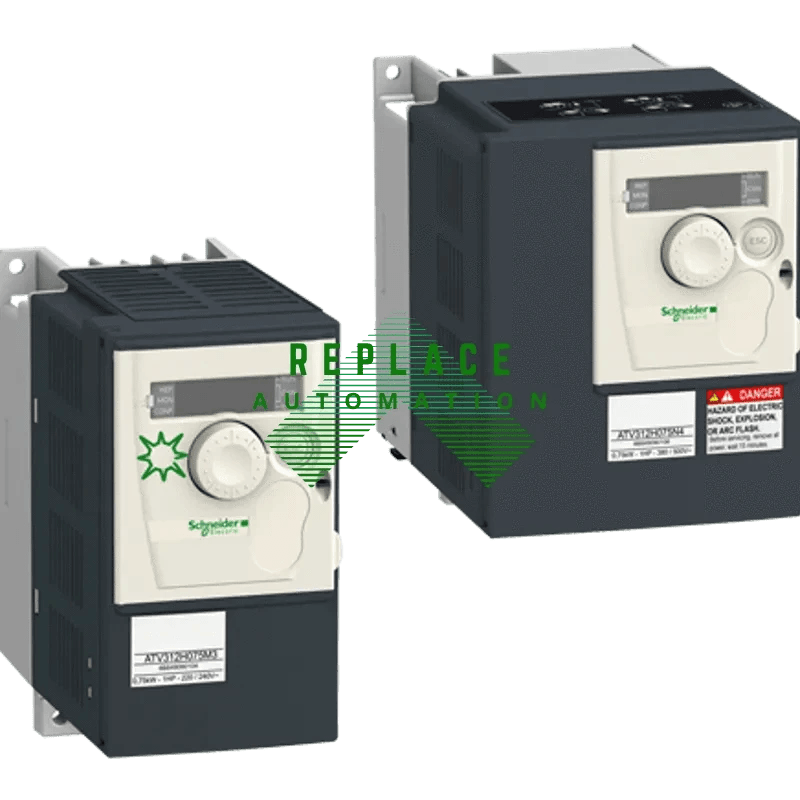

ATV312H037N4
The ATV312H037N4 is a compact Altivar 312 variable speed drive designed for asynchronous motors. It supplies 0.37kW or 0.5 hp with a 380-500V three-phase input. This model boasts integrated EMC filtering, CANopen and Modbus communication protocols, and is suitable for simple machine applications.
