Is the Allen-Bradley 1734-OB8E new or used?

We offer the 1734-OB8E in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1734-OB8E?

The 1734-OB8E draws 3 amps/module.

What is the Allen-Bradley 1734-OB8E?

The 1734-OB8E is an Allen-Bradley Point I/O Digital DC Sourcing Output Modules.

UPC	10612598308580
Brand	Allen-Bradley
Series	POINT I/O
Outputs	8
Dimensions	2.21 x 0.47 x 2.97 inches
Module Type	Digital DC Sourcing Output Modules
Manufacturer	Rockwell Automation
Output Current	3 amps/module
Output Voltage	24 Volts DC
POINTBus Current	75 milliamps
Power Dissipation	2 Watts
Key Switch Position	1
Thermal Dissipation	6.8 BTU/hour
Part Number/Catalog No.	1734-OB8E
Electronically Protected	Yes

Allen-Bradley

1734-OB8E

Rate this product

Ready to ShipPLCs Point I/O

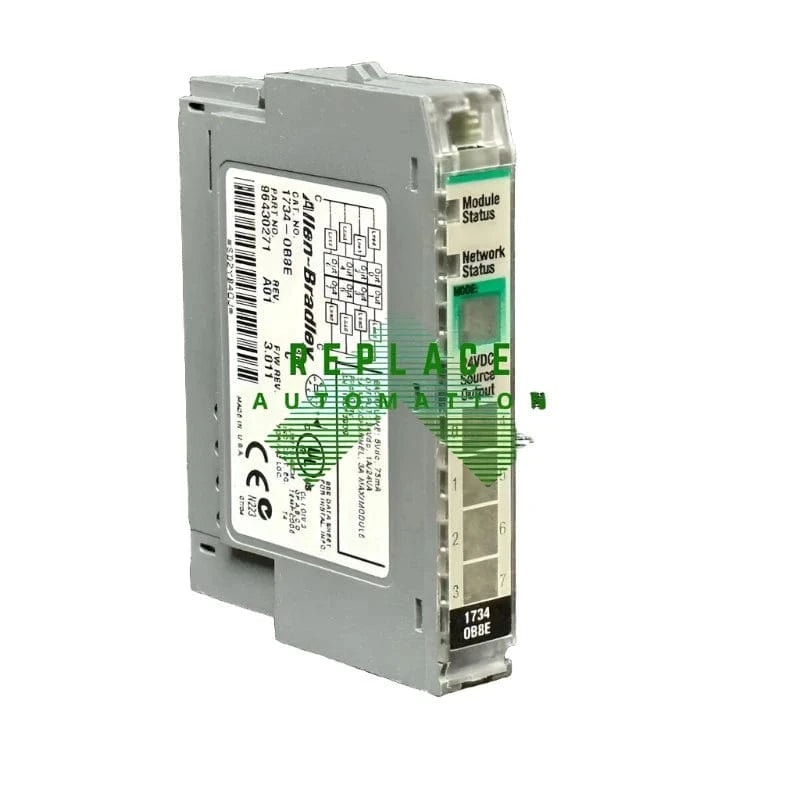

The Rockwell Automation Allen-Bradley 1734-OB8E is a robust POINT I/O digital DC sourcing output module from the Series. It features 8 outputs with 24V DC and is electronically protected. With a POINTBus current of 75mA and output current capability of 3A per module, its power and thermal dissipation are 2W and 6.8 BTU/hour, respectively. Compact in design, it measures 2.21 x 0.47 x 2.97 inches, suitable for discrete control applications.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1734-OB8E

The Allen-Bradley 1734-OB8E is a digital output module that forms part of the POINT I/O series. It is designed and manufactured by Rockwell Automation and is used to control output operations in various industrial and automation settings. It provides a flexible and scalable solution for managing the digital control tasks within an automation system.

Module Specifications

This module comes with eight electronically fused outputs and features an 18-30V DC operating voltage. The 1734-OB8E has a field-side power voltage range of 10...31.2V DC, supporting output currents of up to 2A for each output, with a total module current not to exceed 8A. Its outputs are organized in one group, which allows for easier handling and control of multiple outputs simultaneously.

Installation and Compatibility

The 1734-OB8E is designed for easy installation and is compatible with other POINT I/O modules and bases. It mounts on a DIN rail and requires POINT I/O communication interfaces to function within a distributed system. Its compact design allows for efficient use of space within control cabinets, which is crucial in environments where space saving is a prerogative. The module also features removable terminal blocks for quick and secure wiring.

Communication and Programming

For communication, the 1734-OB8E uses the POINT I/O communication network protocols, enabling seamless integration with Allen-Bradley programmable logic controllers (PLCs) and other compatible devices. Programming the module is carried out using Rockwell Automation's proprietary RSLogix 5000 or Studio 5000 software, providing a user-friendly interface for setup and diagnostics.

Safety and Reliability

Relying on its robust build quality and solid-state outputs, the Allen-Bradley 1734-OB8E ensures high reliability for critical applications. It also comes with various certifications and approvals, including CE, c-UL-us, and C-Tick, assuring users of its compliance with international safety and quality standards. The 1734-OB8E is built with industrial environments in mind, offering resistance to shock, vibration, and other harsh conditions.
