Is the Allen-Bradley 1734-OB8S new or used?

We offer the 1734-OB8S in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1734-OB8S?

The 1734-OB8S draws 8A and runs on 24 Volts DC.

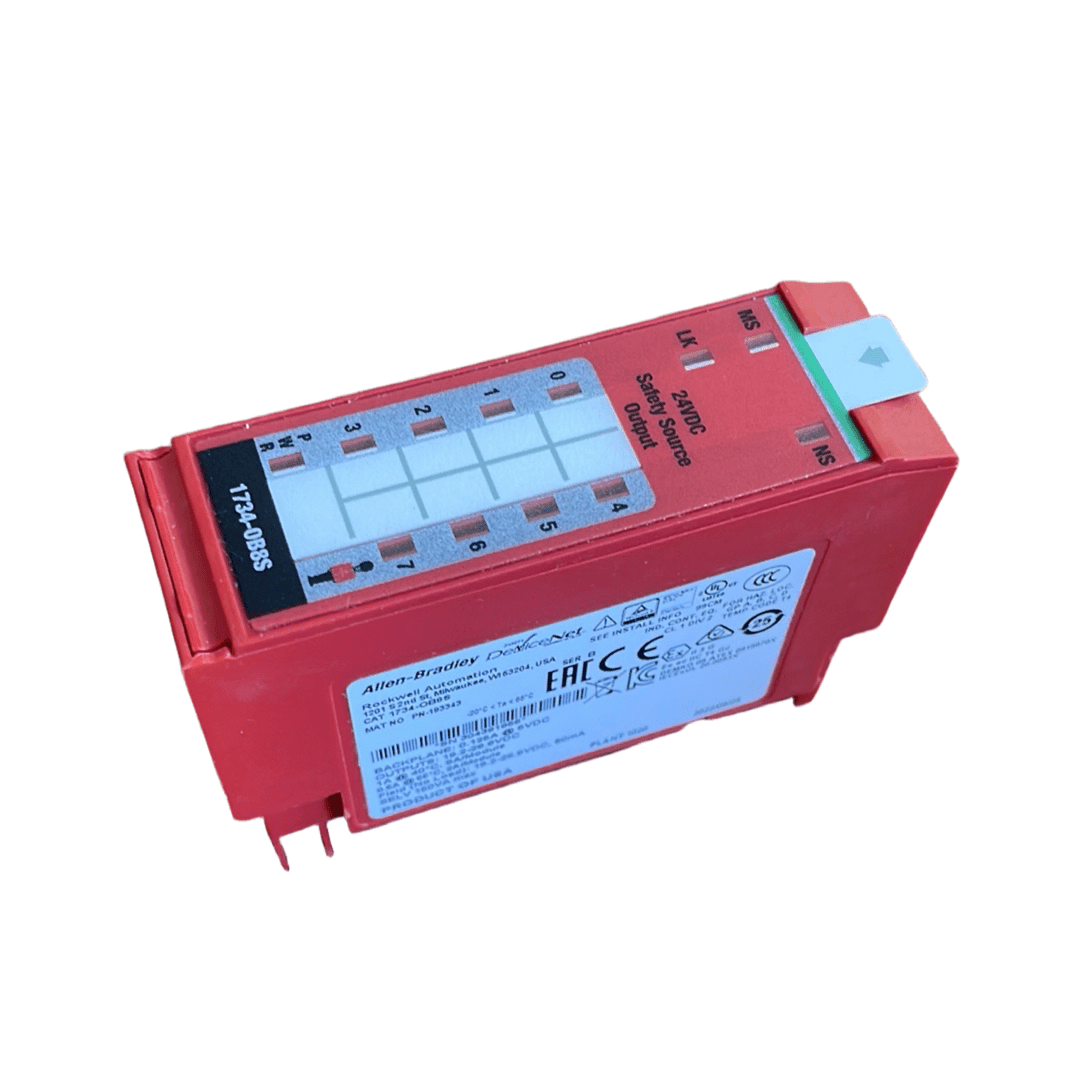

What is the Allen-Bradley 1734-OB8S?

The 1734-OB8S is an Allen-Bradley Point I/O Safety I/O Module.

UPC	10612598350640
Brand	Allen-Bradley
Series	POINT I/O 1734
Weight	2.2 ounces
Outputs	8-Point
Enclosure	Open
Dimensions	3.03 x 0.98 x 2.17 in (HxWxD)
Indicators	1 yellow lock status indicator 1 green/yellow power status indicator 8 I/O channel status indicators
Module Type	Safety I/O Module
Output Type	Current Sourcing
Manufacturer	Industrial Automation
Output Current	8A
Supply Voltage	24 Volts DC
Power Dissipation	4.5 Watts
Thermal Dissipation	15.38 BTU/hour
Part Number/Catalog No.	1734-OB8S

Allen-Bradley

1734-OB8S

Rate this product

Ready to ShipPLCs Point I/O

Industrial Automation offers the non-affiliated Allen-Bradley 1734-OB8S POINT I/O Safety I/O Module. This 24V DC, 8-point current sourcing module features a compact design (3.03 x 0.98 x 2.17 inches) and is ideal for reliable safety applications, with clear status indicators and a 2.2-ounce open enclosure.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Introduction to Allen-Bradley 1734-OB8S

The Allen-Bradley 1734-OB8S is a POINT I/O Safety Output Module designed for use within the Rockwell Automation Integrated Architecture system. It belongs to the family of Allen-Bradley POINT I/O modules that offer flexibility and low-cost installation for distributed control systems. The module provides eight safety-rated output points, which can be utilized to control safety actuators or relay coils within a safety-related control system.

Key Features

The 1734-OB8S module is specifically engineered to meet stringent safety requirements. It complies with Safety Integrity Level (SIL) 3, Performance Level (PL) e, and Category 4 safety standards. Each output channel is designed to be individually connected to a safety device, providing secure, fail-safe operations and reducing the risk of hazardous situations. In addition, the module supports both standard and safety I/O in the same hardware, optimizing space in the control panel and reducing costs.

Connectivity and Installation

This module uses the POINT I/O backplane to connect to the rest of the automation system, ensuring reliable communication. With its 'snap-together' design, the 1734-OB8S simplifies installation and wiring. It efficiently clips onto DIN rail or mounts directly onto a panel, which expedites setup and saves valuable time in the assembly process. Furthermore, it supports a removable terminal block which provides a convenient means of disconnecting and reconnecting wiring.

Configuration and Diagnostics

The 1734-OB8S module is configured using Rockwell Software tools such as RSLogix 5000 or Studio 5000 Logix Designer applications. These tools allow users to integrate the module into their safety system easily and configure safety parameters accordingly. Diagnostic capabilities are built into the module, which assist in quick fault detection and resolution, resulting in reduced system downtime and increased productivity.

Applications

Due to its safety features and robust design, the Allen-Bradley 1734-OB8S module is widely used in various industrial applications where safety is paramount. Such applications often include assembly machinery, packaging equipment, and robotic systems, among others, where it plays a crucial role in ensuring the safe and efficient operation of safety-critical components of the machinery.
