Is the Allen-Bradley 1746-IB16 new or used?

We offer the 1746-IB16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 1746-IB16?

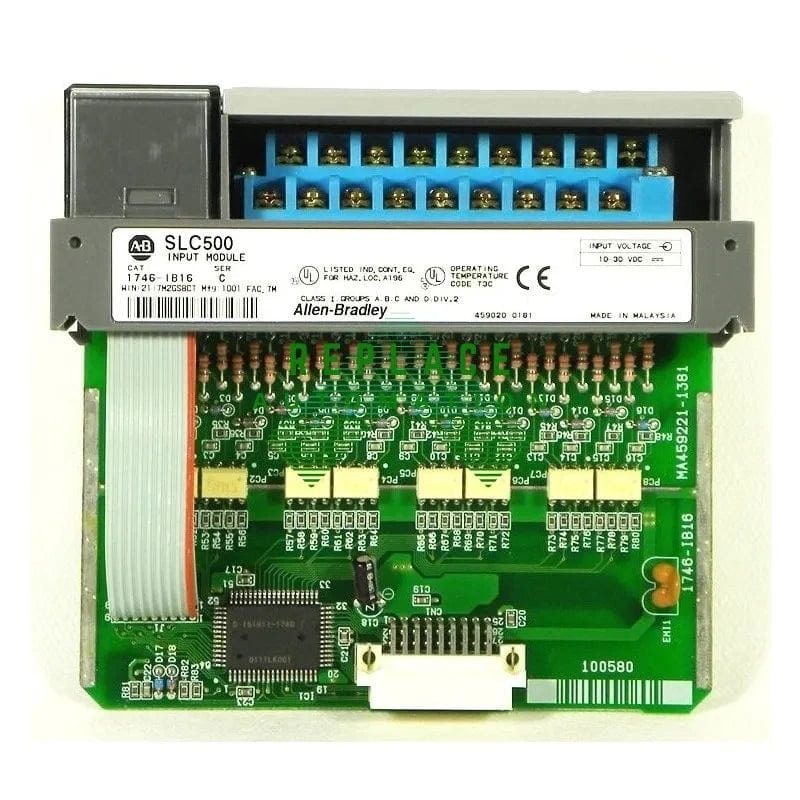

The 1746-IB16 is an Allen-Bradley SLC 500 Digital DC Input Module.

How fast does the 1746-IB16 ship?

In-stock orders for the 1746-IB16 ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

UPC	10662468067048
Brand	Allen-Bradley
Inputs	16
Series	SLC 500
UNSPSC	32151705
Module Type	Digital DC Input Module
Applications	General Purpose DC Inputs
Manufacturer	Rockwell Automation
Signal delay	8 milliseconds
Step Response	100 milliseconds in, 2.5 milliseconds out
Voltage Range	10-30 Volts DC Sink
I/O Connection	1746-HT and 1746-HCA
Off State Current	1 milliamps
Part Number/Catalog No.	1746-IB16
Backplane Current (5 Volts DC)	85 milliamps

Allen-Bradley

1746-IB16

Rate this product

Ready to ShipPLCs SLC 500

The Allen-Bradley 1746-IB16 is a digital DC input module from Rockwell Automation's SLC 500 series. It features 16 sink inputs, operating within a 10-30 VDC range and a signal delay of 8ms. Designed for general purpose DC inputs, it draws 85mA backplane current at 5VDC and supports 1746-HT and 1746-HCA I/O connections.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1746-IB16

The Allen-Bradley 1746-IB16 is a digital input module specifically designed for the SLC 500 system. Manufactured by Rockwell Automation, it offers a compact solution for industrial digital input applications. This module provides users with a reliable and efficient way to integrate digital inputs into their automation systems.

Module Specifications

The 1746-IB16 input module has 16 single-ended, sinking or sourcing inputs. It operates on a 10-30 VDC voltage range and is suitable for connecting with various field input devices. The module --detects the ON/OFF status and communicates the state to the processor to enable accurate monitoring and control within an industrial setting.

Installation and Compatibility

Installation of the 1746-IB16 module is straightforward and user-friendly. It slots into the SLC 500 chassis alongside other I/O modules, ensuring a seamless integration within the system. The module is also compatible with SLC 500 modular hardware style, enabling it to work efficiently with a variety of SLC 500 processors.

Features and Benefits

One of the key features of the 1746-IB16 is its LED indicators which provide real-time diagnostic information that simplifies troubleshooting. Moreover, the module's detachable terminal block allows for easy installation and replacement, reducing downtime. The module provides high-level electrical isolation between inputs and the backplane, which enhances safety and reliability.

Reliability and Durability

The Allen-Bradley 1746-IB16 is built to withstand the demanding conditions of industrial environments. It has a robust construction, featuring a sturdy build quality that promotes longevity and consistent performance. Additionally, its electronic components are rated for high performance, ensuring stable operations over a wide range of temperatures and conditions.
