| UPC | 10662468165911 |
| Brand | Allen-Bradley |
| Inputs | 4 |
| Series | SLC 500 |
| Channels | 4 backplane isolated |
| Resolution | 16 bits in, 14 bits out |
| Module Type | Thermocouple/mV Analog Input Module |
| Update Time | 26 milliseconds-1.2 seconds |
| Manufacturer | Industrial Automation |
| No. of Inputs | Four (4) |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Backplane Current | 0.06 mA @ 5VDC; 0.04 mA @ 24VDC |
| Storage Temperature | -40 to 85 degrees Celsius |
| I/O Chassis location | Any slot except Slot 0 |
| A/D Conversion method | Sigma-delta modulation |
| Operating Temperature | 0 to 60 degrees Celsius |
| Open Circuit Detection | Zero; Upscale; Downscale |
| Part Number/Catalog No. | 1746-NT4 |
| Compatible miliVolt signal | +/- 50 mV and +/- 100 mV |
| Backplane Current (5 Volts) | 60 milliamps |
| Backplane Power Consumption | 0.8W maximum (0.3W @ 5V dc, 0.5W @ 24V dc) |
| Backplane Current (24 Volts) | 55 milliamps |
| Compatible Thermocouple Sensors | J, K, T, E, S, R, B and N |
Does the Allen-Bradley 1746-NT4 come with a warranty?
Yes. The 1746-NT4 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1746-NT4 a genuine Allen-Bradley part?
The 1746-NT4 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1746-NT4 new or used?
We offer the 1746-NT4 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1746-NT4?
The 1746-NT4 operates across 0 to 60 degrees Celsius and is rated at 0.8W maximum (0.3W @ 5V dc, 0.5W @ 24V dc).
What is the Allen-Bradley 1746-NT4?
The 1746-NT4 is an Allen-Bradley SLC 500 Thermocouple/mV Analog Input Module.

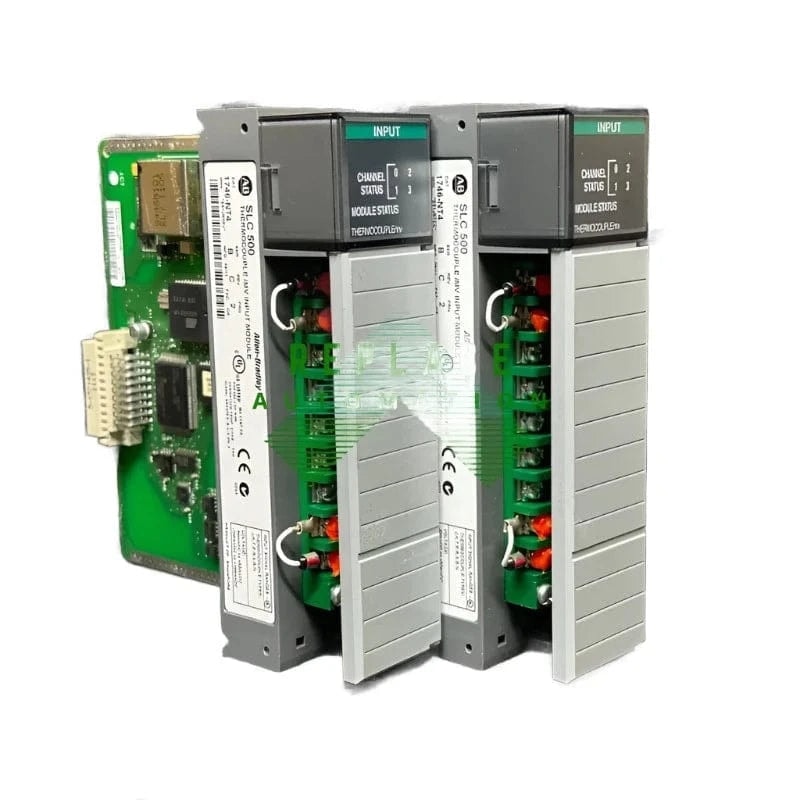

1746-NT4
The Allen-Bradley 1746-NT4 is a thermocouple/mV analog input module for the SLC 500 series with four channels, supporting various thermocouple types. It boasts a 16-bit resolution, swift update times (26 ms to 1.2 s), and sigma-delta A/D conversion. Operating temperatures range from 0 to 60°C.
