| UPC | 10611320130888 |
| Brand | Allen-Bradley |
| Inputs | 8 |
| Series | SLC 500 |
| Resolution | 16 bits in, 14 bits out |
| Module Type | Thermocouple/mV Analog Input Module |
| Update Time | 356 milliseconds-4.05 seconds |
| Manufacturer | Rockwell Automation |
| No. of Inputs | Eight (8) |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Backplane Current | 120 mA @ 5VDC; 70 mA @ 24VDC |
| Storage Temperature | -40 to 85 degrees Celsius |
| I/O Chassis location | Any slot except Slot 0 |
| A/D Conversion method | Sigma-delta modulation |
| Operating Temperature | 0 to 60 degrees Celsius |
| Open Circuit Detection | Zero; Upscale; Downscale |
| Part Number/Catalog No. | 1746-NT8 |
| Compatible miliVolt signal | +/- 50 mV and +/- 100 mV |
| Backplane Current (5 Volts) | 120 milliamps |
| Backplane Power Consumption | 2.28W maximum (0.6W at 5V dc, 1.68W at 24V dc) |
| Backplane Current (24 Volts) | 70 milliamps |
| Compatible Thermocouple Sensors | J, K, T, E, S, R, B and N |
Does the Allen-Bradley 1746-NT8 come with a warranty?
Yes. The 1746-NT8 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1746-NT8 a genuine Allen-Bradley part?
The 1746-NT8 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1746-NT8 new or used?
We offer the 1746-NT8 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1746-NT8?
The 1746-NT8 operates across 0 to 60 degrees Celsius and is rated at 2.28W maximum (0.6W at 5V dc, 1.68W at 24V dc).
What is the Allen-Bradley 1746-NT8?
The 1746-NT8 is an Allen-Bradley SLC 500 Thermocouple/mV Analog Input Module.

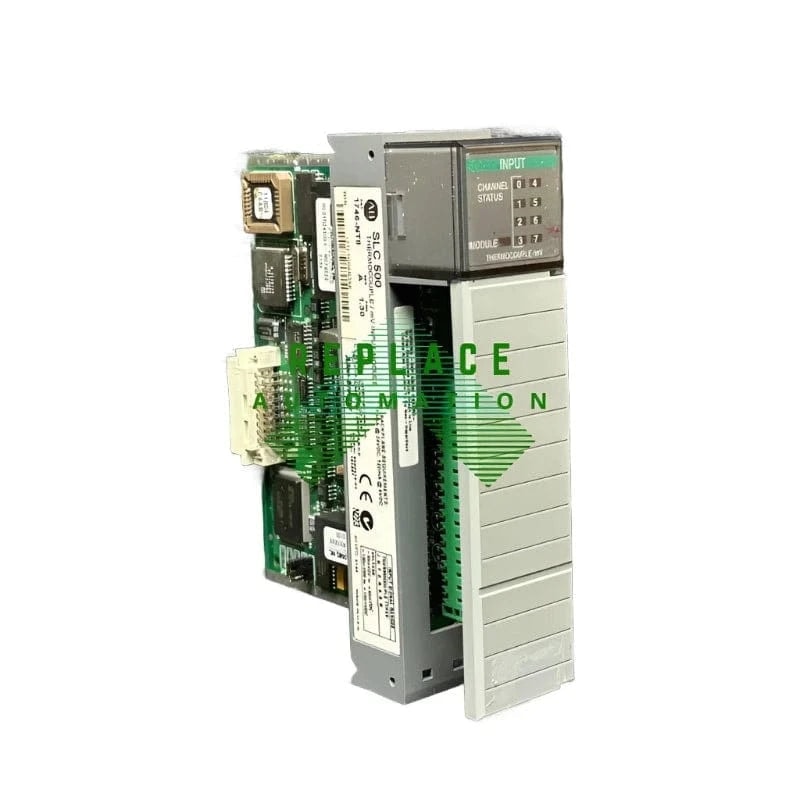

1746-NT8
The Allen-Bradley 1746-NT8 is an SLC 500 series thermocouple/mV analog input module designed by Rockwell Automation with eight input channels. It supports various thermocouple types, including J, K, T, E, S, R, B, and N, featuring a 16-bit resolution and a 356ms-4.05s update time, compatible with +/- 50 mV and +/- 100 mV signals.
