| UPC | 10662468088326 |
| Brand | Allen-Bradley |
| Series | SLC 500 |
| UNSPSC | 32151706 |
| Weight | 1.1 kg or 2.5 lbs. |
| Location | 1746 Chassis |
| Frequency | 47 to 63 Hertz |
| Dimensions | 5.5 x 3.3 x 5.7 inches |
| Input Power | 70 Watts |
| Module Type | Power Supply |
| Manufacturer | Industrial Automation |
| Input Voltage | 120 to 220 Volts AC |
| Inrush Current | 20 Amps |
| Fuse Protection | 1746-F1 or equivalent |
| CPU Hold up time | 20 ms (full load) 3000 ms (no load) |
| Output Voltage Range | 18 to 30 Volts DC |
| Programming Software | RSLogix 500 |
| Operating Temperature | 0 to 60 Celsius |
| Part Number/Catalog No. | 1746-P2 |
| Internal Current Capacity | 5 A at 5V dc; 0.96 A at 24V dc |
| Backplane Current (5 Volts) | 5 amps |
| Backplane Current (24 Volts) | 0.46 Amps |
| Typical line power requirement | 180VA |
Does the Allen-Bradley 1746-P2 come with a warranty?
Yes. The 1746-P2 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1746-P2 a genuine Allen-Bradley part?
The 1746-P2 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1746-P2 new or used?
We offer the 1746-P2 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1746-P2?
The 1746-P2 runs on 120 to 220 Volts AC and operates across 0 to 60 Celsius.
What is the Allen-Bradley 1746-P2?
The 1746-P2 is an Allen-Bradley SLC 500 Power Supply.

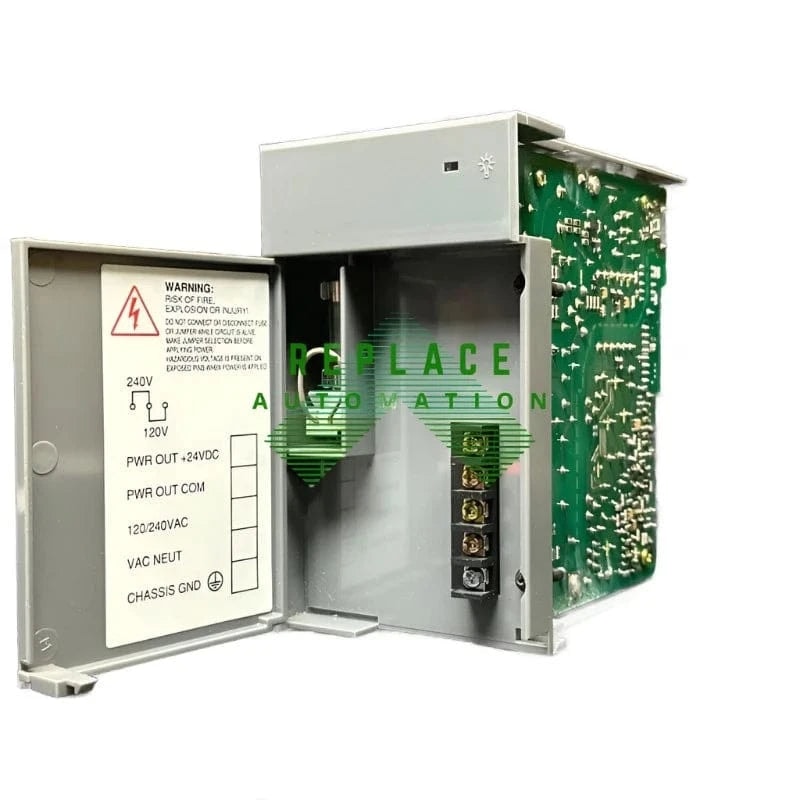

1746-P2
The Allen-Bradley 1746-P2 power supply, part of the SLC 500 series, offers a reliable power solution for industrial automation with its 70W input power, 120-220V AC input voltage, and 5A backplane current. Its compact design and fuse protection ensure efficient operation within the 1746 chassis, maintaining a consistent output voltage range of 18-30V DC across various loads and operating temperatures from 0 to 60°C.
