What are the communication capabilities of the 1747-L543 processor?

The 1747-L543 features integrated communication ports for Data Highway Plus (DH+) and RS-232.

How much user memory does the 1747-L543 contain?

The processor includes 64 KB of battery-backed RAM, which holds up to 64,000 words of user memory.

What is the operating temperature range for the 1747-L543?

The 1747-L543 is designed to operate in temperatures ranging from 0 to 60 degrees Celsius.

How many I/O chassis and module slots can the 1747-L543 support?

The processor supports a maximum of 3 I/O chassis and 30 I/O module slots.

Is the Allen-Bradley 1747-L543 new or used?

We offer the 1747-L543 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1747-L543?

The 1747-L543 operates across 0 to 60 degrees Celsius.

What is the Allen-Bradley 1747-L543?

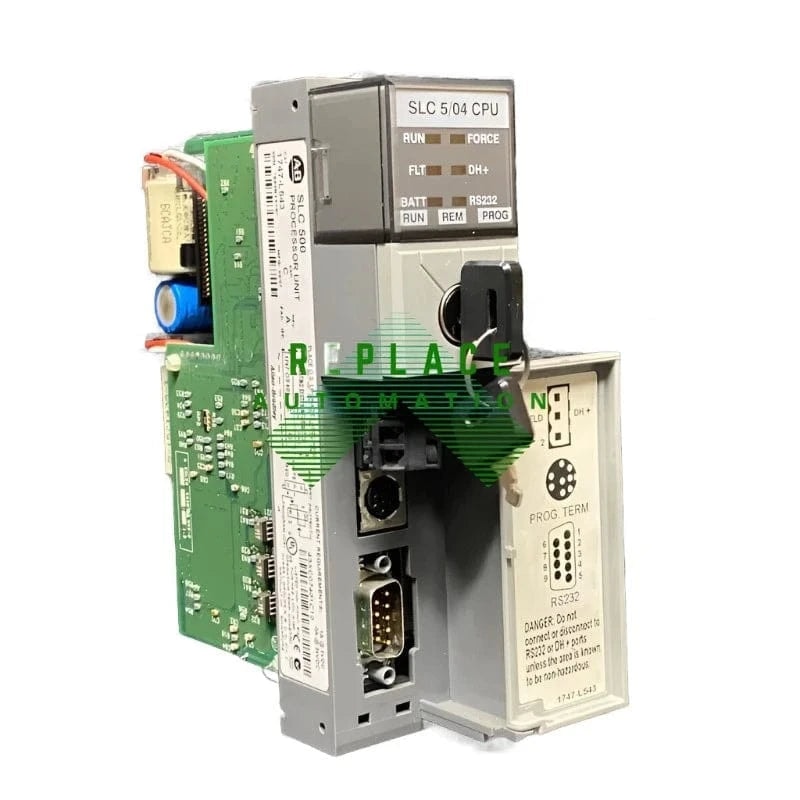

The 1747-L543 is an Allen-Bradley SLC 500 SLC 5/04 Processor.

UPC	10662468653036
Brand	Allen-Bradley
Inputs	4096
Memory	Up to 64 KB, Battery Backed-RAM
Series	SLC 500
UNSPSC	32151705
Outputs	4096
Analog I/O	480
I/O Chassis	3
Module Type	SLC 5/04 Processor
User Memory	64,000 Words
Manufacturer	Rockwell Automation
Backup Memory	1747-M13
Communication	Data Highway Plus (DH+), RS-232
I/O Scan Time	0.225 milliseconds
Program Scan Time	0.9 ms/K
Chassis Module Slots	30
Programming software	RSLogix500 software
Operating Temperature	0 to 60 degrees Celsius
Battery back-up memory	Yes; 1747-BA
Part Number/Catalog No.	1747-L542

Allen-Bradley

1747-L543

Q: What is the maximum I/O capacity for the 1747-L543?

The 1747-L543 supports a maximum of 4,096 discrete inputs and 4,096 discrete outputs.

Q: What are the scan time specifications for the 1747-L543?

The processor has an average program scan time of 0.9 milliseconds per K and a typical I/O scan time of 0.225 milliseconds.

Rate this product

PLCs SLC 500

The Allen-Bradley 1747-L543 is a Rockwell Automation SLC 500 series processor known for its reliability and flexibility in industrial settings. It features a 64 KB battery-backed RAM, supports up to 4096 inputs/outputs, and works with RSLogix500 software. Ideal for modular applications, it boasts rapid scan times and DH+ communication.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1747-L543

The Allen-Bradley 1747-L543 is a processor module for the SLC 500 series, specifically classified as an SLC 5/04 controller. It is designed for medium to large control applications, offering the highest memory capacity among the SLC 5/04 processor variants. This unit provides a robust solution for centralized control over widely spread I/O signals, supporting distributed I/O topologies that eliminate the need for long cable runs.

Key Features

This processor features 64 KB of battery-backed RAM, with 60,000 words allocated for data and program storage and 4,000 words for data only. It includes a Flash EPROM backup memory and supports 107 programming instructions. The module is equipped with integrated front-panel status LEDs for forced I/O, run, CPU fault, RS-232, and DH+ to facilitate quick diagnosis of module status.

Performance and Capacity

The 1747-L543 supports a maximum of 4096 discrete inputs and 4096 discrete outputs, along with 480 analog I/O points. It achieves an average program scan time of 0.9 milliseconds per K and a typical I/O scan time of 0.225 milliseconds, with bit execution at 0.37 microseconds. The processor can support up to three I/O chassis with a maximum of 30 module slots. It operates on backplane currents of 1 A at 5 V DC and 125 mA at 24 V DC, with an operating temperature range of 0 to 60 degrees Celsius.

Installation and Compatibility

Communication is handled via a 9-pin RS-232 port and a 3-wire terminal Data Highway Plus (DH+) port. The 1747-L543 is compatible with RSLogix 500 software for programming and configuration. It is part of the SLC 500 Modular Hardware family and is designed to work with SLC 5/02 or higher processors in distributed I/O configurations using communication scanners and adapters.

Applications and Industries

Designed for industrial settings requiring reliability and flexibility, the 1747-L543 is ideal for modular applications in medium to large scale processes. Its support for distributed I/O makes it suitable for environments where I/O signals are spread across a wide physical area, allowing for efficient centralized control without the complexity of multiple processors or extensive cabling.
