Is the Allen-Bradley 1756-A7 new or used?

We offer the 1756-A7 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 1756-A7?

The 1756-A7 is an Allen-Bradley ControlLogix 1756 Chassis.

How fast does the 1756-A7 ship?

In-stock orders for the 1756-A7 ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

UPC	10612598129314
Brand	Allen-Bradley
Slots	7
Series	ControlLogix
UNSPSC	32151704
Weight	2.4 pounds (1.1 kilograms)
Mounting	Horizontal
Enclosure	Open
Dimensions	20 x 24 x 8 inches
Module Type	Chassis
Manufacturer	Rockwell Automation
Part Number/Catalog No.	1756-A7
Power Dissipation (Max)	4.5 Watts
Backplane Current (5 Volts DC)	10 Amps
Backplane Current (24 Volts DC)	2.8 Amps

Allen-Bradley

1756-A7

Rate this product

Ready to ShipPLCs ControlLogix 1756

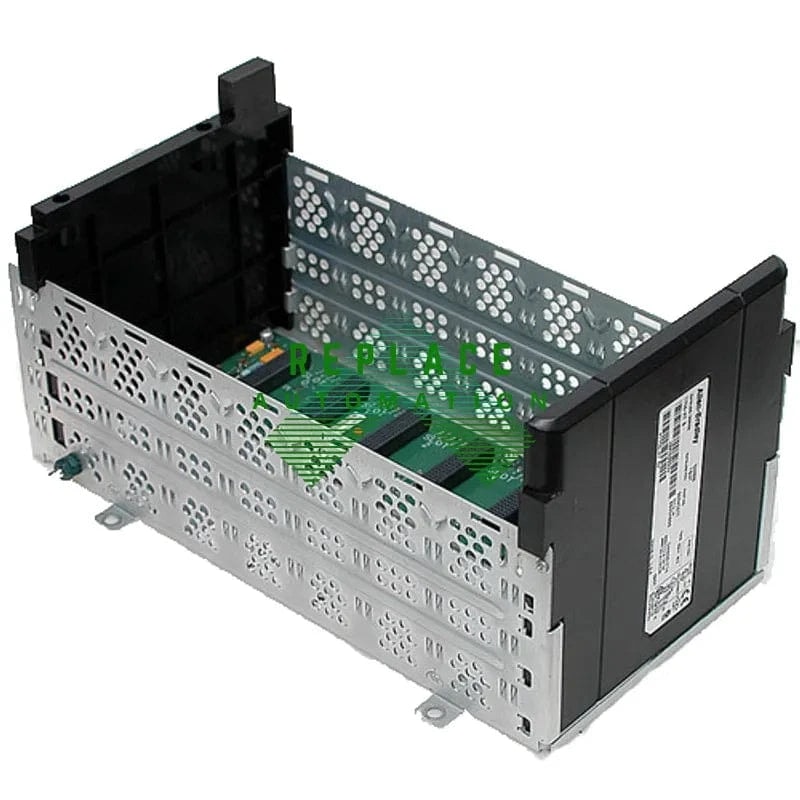

The Allen-Bradley 1756-A7 is a Rockwell Automation ControlLogix chassis with 7 slots for housing compatible modules. It has a maximum power dissipation of 4.5 watts, supports a horizontal mounting orientation, and measures 20 x 24 x 8 inches. Weighing 2.4 pounds, the open enclosure design facilitates a backplane current of 10 Amps at 5V DC and 2.8 Amps at 24V DC.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Allen-Bradley 1756-A7 ControlLogix Chassis

The Allen-Bradley 1756-A7 is a 7-slot ControlLogix chassis designed to house compatible modules from the ControlLogix product family. It is part of Rockwell Automation's larger Allen-Bradley integrated control system line. Its modular design allows for flexible configuration to meet various automation needs and scalability for future expansion.

Design and Build Quality

Constructed with a rugged design, the 1756-A7 chassis is built to withstand the harsh conditions often encountered in industrial environments. It ensures reliable performance and stable operation by implementing a backplane that provides a high-speed communication path between modules. Additionally, the chassis is designed for easy installation and maintenance, enhancing its overall usability in the field.

Compatibility and Expansion

This 7-slot chassis supports a range of ControlLogix modules, including processors, digital and analog I/O, specialty modules, and communication modules. Its main function is to provide power and establish communication between the modules. The 1756-A7 allows for a mix-and-match approach to system configuration, which enables users to tailor their system to specific needs without being confined to predetermined module setups.

Networking and Communication

The Allen-Bradley 1756-A7 chassis utilizes the ControlLogix backplane to provide high-speed communication among modules. It is compatible with various communication protocols depending on the modules installed, allowing it to integrate seamlessly with existing networks and other Allen-Bradley products. This facilitates efficient data exchange, essential for complex industrial operations and processes.

Power Supply and Safety Features

The 1756-A6 chassis requires an external power supply, which is not included with the chassis itself. It is important to select a power supply that meets the current and voltage requirements of the installed modules. Safety features include overvoltage and overcurrent protection, which help prevent damage to the system and ensure a safer operating environment for both the hardware and personnel.
