Is the Allen-Bradley 1756-IF16 new or used?

We offer the 1756-IF16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1756-IF16?

The 1756-IF16 is rated at 2.3 Watts and draws 1.5 milliamperes.

What is the Allen-Bradley 1756-IF16?

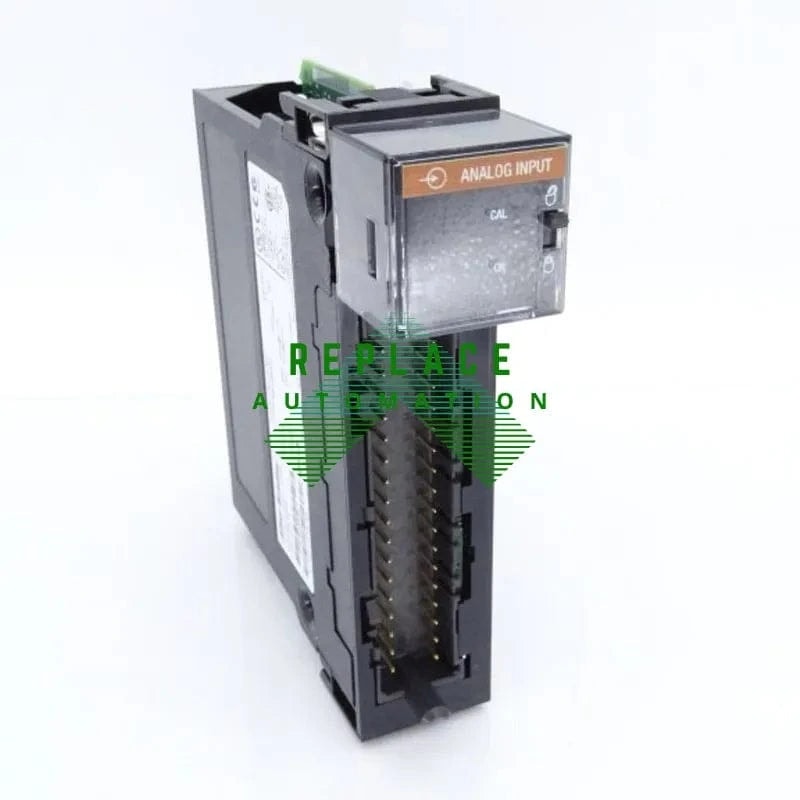

The 1756-IF16 is an Allen-Bradley ControlLogix 1756 Analog Input Module.

UPC	10612598171788
Brand	Allen-Bradley
Inputs	16 single, 8 differential, 4 highspeed differential
Series	ControlLogix
Module Type	Analog Input Module
Manufacturer	Rockwell Automation
Input Resolution	(+/-) 10.25 Volts, 0 to 5.125 Volts, 0 to 10.25 Volts
Power Consumption	2.3 Watts
RSLogix 5000 Software	Verson 8.02.00 or later
Part Number/Catalog No.	1756-IF16
Power Dissipation (Max)	2.3 Watts (Voltage), 3.9 Watts (Current)
Backplane Current (5Volts)	150 milliamps
Removeable Terminal Blocks	1756-TBCH, 1756-TBS6H
Backplane Current (24Volts)	65 milliamps
Maximum Input Current, Off-State	1.5 milliamperes

Allen-Bradley

1756-IF16

Rate this product

Ready to ShipPLCs ControlLogix 1756

The Rockwell Automation Allen-Bradley 1756-IF16 is a ControlLogix Analog Input Module providing 16 configurable inputs, supporting different voltage ranges and resolutions. It consumes up to 2.3 watts, with a backplane current of 150 mA at 5V and 65 mA at 24V, and is compatible with RSLogix 5000 software version 8.02.00 or later.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1756-IF16

The Allen-Bradley 1756-IF16 is an analog input module designed for use with the ControlLogix system. It falls under the category of I/O modules that play a crucial role in interfacing the processor with field devices. This module helps in converting incoming analog signals from process and equipment sensors to digital data that can be processed by the controller.

Features of the 1756-IF16 Module

The 1756-IF16 module offers 16 differential or single-ended inputs, supporting a range of input signals including current and voltage. It provides high-resolution data with 16-bit resolution and includes features such as on-board data alarming, scaling to engineering units, and real-time channel sampling. Moreover, its diagnostic capabilities facilitate troubleshooting and ensure reliable operation.

Flexibility and Compatibility

This module is renowned for its flexibility, compatible with an array of sensors and transducers, making it an ideal choice for diverse industrial environments. It easily integrates into a ControlLogix chassis and operates seamlessly with the Studio 5000 Logix Designer application, allowing for ease of use and configuration.

Installation and Maintenance

Installation of the Allen-Bradley 1756-IF16 is straightforward, with a simple insertion into any available slot of a ControlLogix chassis. Maintenance typically involves routine checks and calibration to ensure continued accuracy and performance. Its rugged construction helps minimize maintenance needs and contributes to the module’s longevity in harsh industrial settings.
