Is the Allen-Bradley 1756-OW16I new or used?

We offer the 1756-OW16I in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1756-OW16I?

The 1756-OW16I draws 2, 0.5, 0.25 Amps and runs on 10-265 Volts AC, 5-150 Volts DC.

What is the Allen-Bradley 1756-OW16I?

The 1756-OW16I is an Allen-Bradley ControlLogix 1756 Isolated Relay Output Module.

UPC	10612598171467
Brand	Allen-Bradley
Series	ControlLogix
Outputs	16-Point Individually Isolated
Enclosure	None
Module Type	Isolated Relay Output Module
Manufacturer	Rockwell Automation
Contact Output	13 N.O.
Output Current	2, 0.5, 0.25 Amps
Isolation Voltage	50 Volts Continuous
Operating Voltage	10-265 Volts AC, 5-150 Volts DC
Part Number/Catalog No.	1756-OW16I
Power Dissipation (Max)	4.5 Watts at 60 Celsius
Maximum Output Delay Time	10 milliseconds
Backplane Current at 5 Volts	150 milliamps
Removeable Terminal Block(s)	1756-TBCH, 1756-TBS6H
Backplane Current at 24 Volts	150 milliamps

Allen-Bradley

1756-OW16I

Rate this product

PLCs ControlLogix 1756

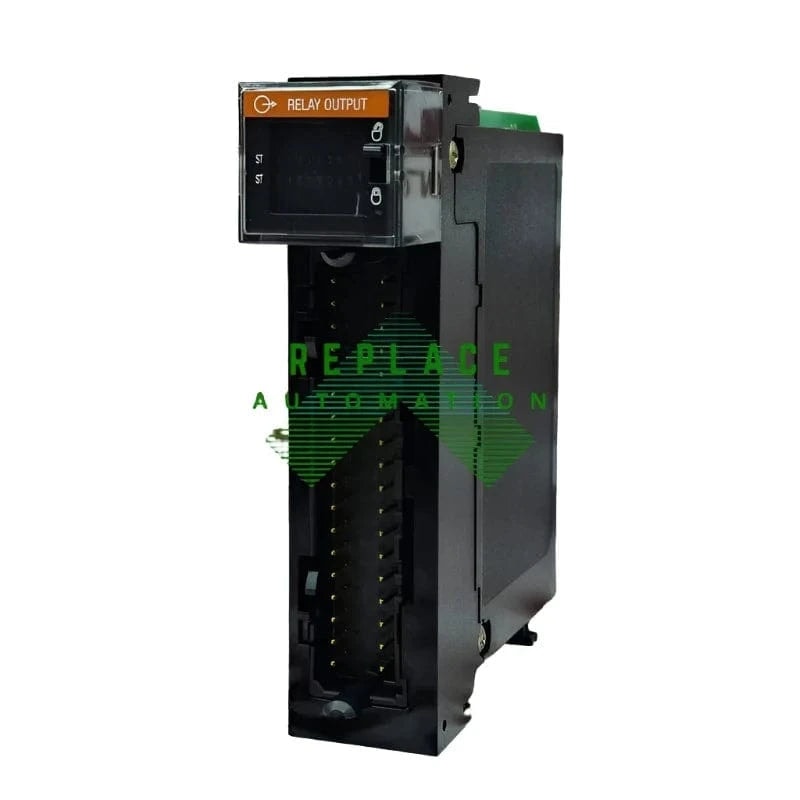

The Allen-Bradley 1756-OW16I is a 16-point individually isolated relay output module from the ControlLogix series, capable of handling operating voltages between 10-265V AC and 5-150V DC. It features output currents of up to 2 amps, a maximum delay time of 10ms, and employs removable terminal blocks 1756-TBCH and 1756-TBS6H.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1756-OW16I

The Allen-Bradley 1756-OW16I is a relay output module that belongs to the ControlLogix family of automation controllers. It is designed to interface with external devices such as actuators, solenoids, and motors, providing a high degree of precision and control in industrial environments. This module offers 16 individually isolated relay outputs, which can be utilized for a variety of output switching tasks within automated systems.

Technical Specifications

The 1756-OW16I relay output module operates with an output voltage range of 5-265V AC or 5-125V DC, supporting a wide variety of applications. Its outputs are organized in a single group, ensuring that each relay operates independently with isolated contacts. The module comes with a removable terminal block, which simplifies installation and maintenance processes. Additionally, the 1756-OW16I features electronically protected outputs to prevent damage from potential wiring faults or overload conditions.

Communication and Integration

As part of the ControlLogix system, the 1756-OW16I integrates seamlessly with Allen-Bradley's RSLogix 5000 programming software, offering sophisticated control logic and diagnostics capabilities. The module communicates using the ControlLogix backplane, which provides high-speed data exchange with the controller and other I/O modules. This integration ensures efficient and reliable performance in diverse industrial applications.

Usage and Applications

The Allen-Bradley 1756-OW16I is commonly used in industrial settings that require reliable control of output functions. Its applications can be found in sectors such as manufacturing, automotive, food and beverage processing, and material handling. This module is particularly well-suited for operations that demand electrical isolation between the switching device and the load, as well as those needing precise timing and sequencing of output signals.

Maintenance and Reliability

The design of the 1756-OW16I emphasizes durability and ease of maintenance. Its rugged construction can withstand harsh industrial environments, and the LED status indicators provide quick visual feedback on the status of each relay, simplifying troubleshooting processes. Allen-Bradley's commitment to quality ensures that this module is a reliable solution for long-term use in demanding automation tasks.
