| UPC | 10612598186287 |
| Brand | Allen-Bradley |
| Inputs | 3 per Counter |
| Series | ControlLogix |
| Outputs | 4-Point |
| Location | Chassis (Any Slot) |
| Slot Width | 1 |
| Count Range | 0-16, 214, 777 |
| Module Type | High Speed Counter Module |
| Manufacturer | Industrial Automation |
| Operation Modes | Counter, Rate Measurement, Encoder, Debounce Filter |
| Firmware Revision | Any |
| Signal Frequencies | 1 MHz in counter modes (A input); 500 KHz in rate measurement mode (A input); 250 KHz in encoder mode (A/B inputs, X1 or X4); 50Hz with debounce filter enabled |
| Programming software | RSLogix 5000 Software Verson 8.02.00 or later; RSNetworx Verson 8.02.00 or later |
| RSLogix 5000 Software | Verson 8.02.00 or later |
| Part Number/Catalog No. | 1756-HSC |
| Power Dissipation (Max) | 5.6 Watts at 60 Celsius |
| Backplane Current (5Volts) | 300 milliamps |
| Removeable Terminal Blocks | 1756-TBCH, 1756-TBS6H |
| Backplane Current (24 Volts) | 3 milliamps |
Does the Allen-Bradley 1756-HSC come with a warranty?
Yes. The 1756-HSC is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-HSC a genuine Allen-Bradley part?
The 1756-HSC is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-HSC new or used?
We offer the 1756-HSC in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What is the Allen-Bradley 1756-HSC?
The 1756-HSC is an Allen-Bradley ControlLogix 1756 High Speed Counter Module.
How fast does the 1756-HSC ship?
In-stock orders for the 1756-HSC ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

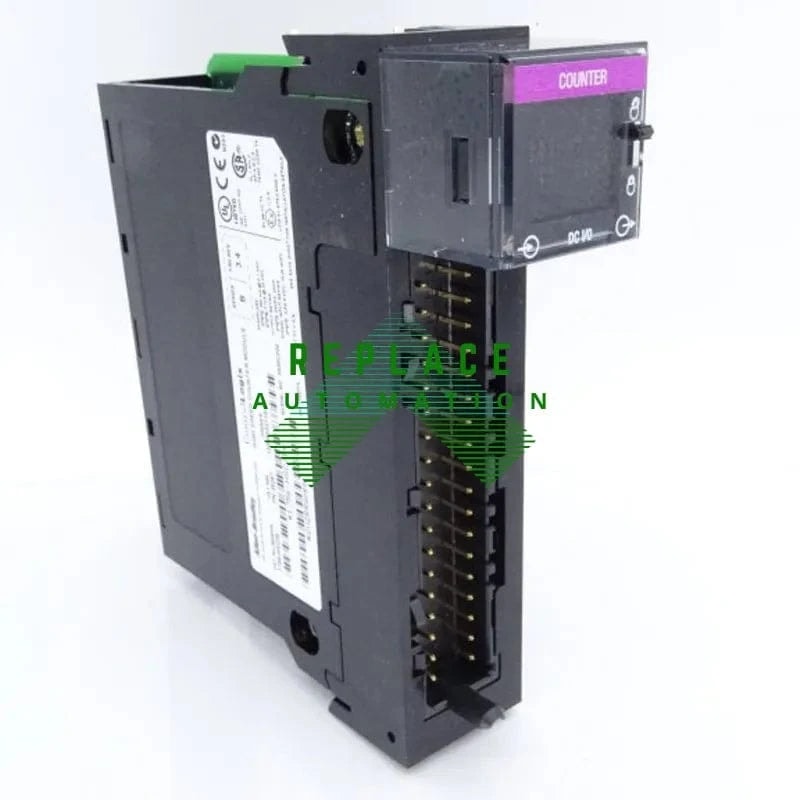

1756-HSC
The Allen-Bradley 1756-HSC is a versatile ControlLogix High Speed Counter Module, featuring three inputs per counter, four outputs, and accepting signal frequencies up to 1 MHz. It supports multiple operation modes including Counter, Rate Measurement, and Encoder, with a broad count range. It requires RSLogix 5000 software and fits in any chassis slot.
