| UPC | 10612598171290 |
| Brand | Allen-Bradley |
| Inputs | 16 |
| Series | ControlLogix |
| Module Type | Digital DC Input Module |
| Manufacturer | Industrial Automation |
| Input Voltage | 12-24 Volts DC Sink |
| Module Keying | Electronic, software configurable |
| No. of Inputs | Thirty-Two (32) Inputs |
| Input Delay Time | 2 milliseconds plus selected filter time |
| Thermal Dissipation | 21.1 BTU/hr @ 60 °C (140 °F) |
| Programming software | RSLogix 5000 Software Verson 8.02.00 or later; Studio 5000 |
| RSLogix 5000 Software | Verson 8.02.00 or later |
| Operating Voltage Range | 10-31.2 Volts DC |
| Part Number/Catalog No. | 1756-IB16 |
| Power Dissipation (Max) | 5.1 W @ 60 °C (140 °F) |
| Maximum Operating Current | 10 milliamperes at 31.2 Volts DC |
| Minimum Operating Current | 2 milliamperes at 10 Volts DC |
| Input Delay Time, OFF to ON | Hardware delay: 290 µs nom/1 ms max + filter time |
| Input Delay Time, ON to OFF | Hardware delay: 700 µs nom/2 ms max + filter time |
| Removeable Terminal Block(s) | 1756-TBCH 1756-TBS6H |
| Backplane Current at 24 Volts | 2 milliamperes |
| Backplane Current at 5.1 Volts | 120 milliamperes |
| Maximum Input Current, Off-State | 1.5 milliamperes |
Does the Allen-Bradley 1756-IB16 come with a warranty?
Yes. The 1756-IB16 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-IB16 a genuine Allen-Bradley part?
The 1756-IB16 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-IB16 new or used?
We offer the 1756-IB16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-IB16?
The 1756-IB16 runs on 12-24 Volts DC Sink and draws 1.5 milliamperes.
What is the Allen-Bradley 1756-IB16?
The 1756-IB16 is an Allen-Bradley ControlLogix 1756 Digital DC Input Module.

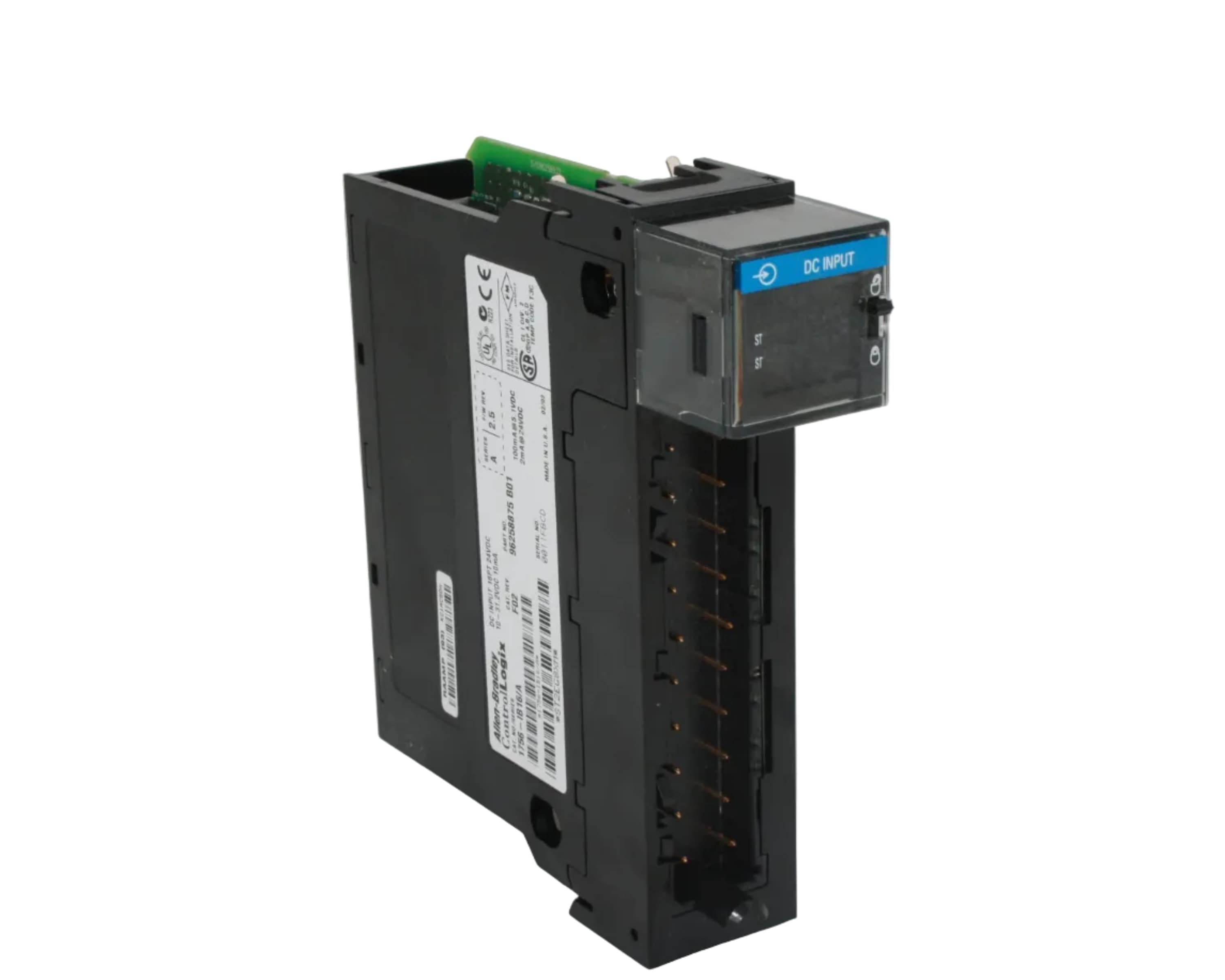

1756-IB16
The Allen-Bradley 1756-IB16 is a 32-input digital DC input module from Industrial Automation's ControlLogix series. It operates on 10-31.2V DC with electronic keying and supports removable terminal blocks. Designed for use with RSLogix 5000 Software, it has a 2ms input delay and a maximum power dissipation of 5.1W.
