| Brand | Allen-Bradley |
| Inputs | 16 Diagnostic Inputs |
| Series | ControlLogix |
| Module Type | Digital DC Input Module |
| Manufacturer | Rockwell Automation |
| Input Voltage | 12-24 Volts DC Sink |
| Input Delay Time | 4 milliseconds plus selected filter time |
| RSLogix 5000 Software | Verson 8.02.00 or later |
| Operating Voltage Range | 10-30 Volts DC |
| Part Number/Catalog No. | 1756-IB16D |
| Power Dissipation (Max) | 5.8 Watts at 60 degrees Celsius |
| Maximum Operating Current | 13 milliamperes at 30 Volts DC |
| Minimum Operating Current | 2 milliamperes at 10 Volts DC |
| Backplane Current at 5 Volts | 150 milliamperes |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Maximum Input Current, Off-State | 1.5 milliamperes per point |
Does the Allen-Bradley 1756-IB16DK come with a warranty?
Yes. The 1756-IB16DK is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-IB16DK a genuine Allen-Bradley part?
The 1756-IB16DK is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-IB16DK new or used?
We offer the 1756-IB16DK in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-IB16DK?
The 1756-IB16DK runs on 12-24 Volts DC Sink and draws 1.5 milliamperes per point.
What is the Allen-Bradley 1756-IB16DK?
The 1756-IB16DK is an Allen-Bradley ControlLogix 1756 Digital DC Input Module.

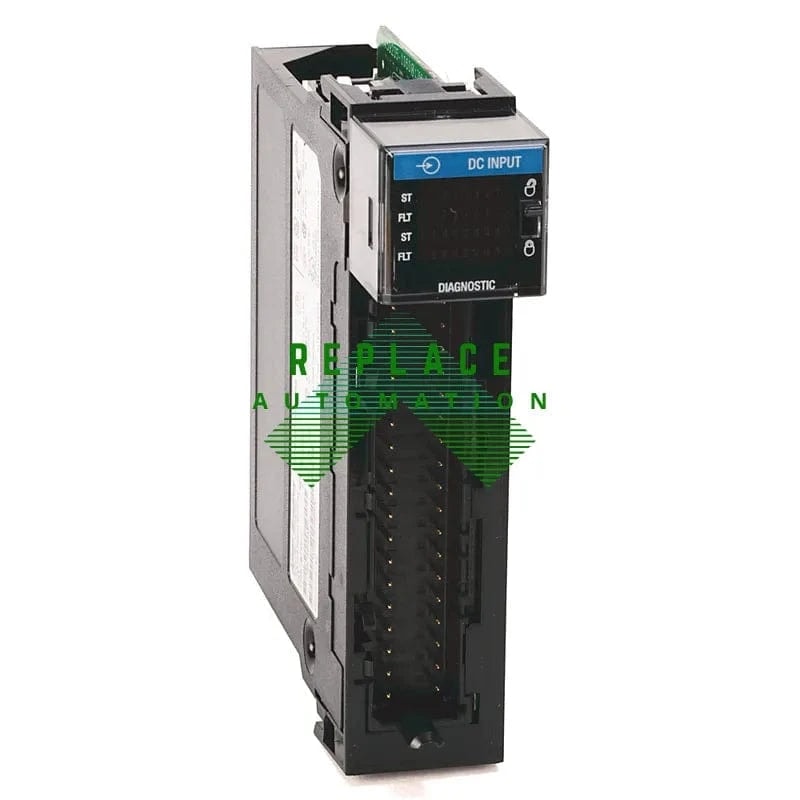

1756-IB16DK
The Allen-Bradley 1756-IB16D is a digital DC input module from Rockwell Automation's ControlLogix series. It features 16 diagnostic inputs with a voltage range of 10-30V DC and a 4ms input delay. Compatible with RSLogix 5000 software v8.02.00 or later, it offers precise input monitoring for industrial control systems.
