Is the Allen-Bradley 1756-IB16S new or used?

We offer the 1756-IB16S in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 1756-IB16S?

The 1756-IB16S is part of the Allen-Bradley ControlLogix 1756 line.

How fast does the 1756-IB16S ship?

In-stock orders for the 1756-IB16S ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

Description

Input Module | ControlLogix

Allen-Bradley

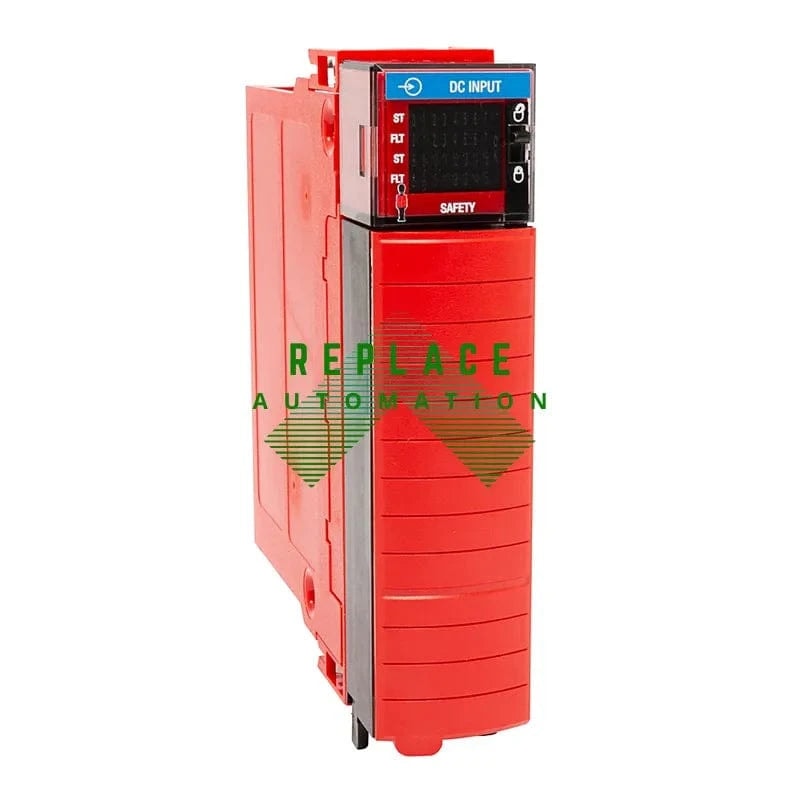

1756-IB16S

Rate this product

PLCs ControlLogix 1756

The 1756-IB16S is a ControlLogix input module by Allen Bradley designed for industrial automation. It features 16 digital inputs, providing reliable interfacing with sensors and switches, and is housed in a robust form factor for integration into larger control systems, ensuring precision and durability in demanding environments.

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1756-IB16S

The Allen-Bradley 1756-IB16S is a digital input module that belongs to the ControlLogix family of programmable automation controllers. It is designed to handle the input side of control applications, converting incoming digital signals from various field devices into a format that can be processed by the ControlLogix system. This module provides a reliable and effective solution for interfacing with switches, push-buttons, and various other digital sensors.

Technical Specifications

The 1756-IB16S module features 16 single-ended inputs with sourcing input type, which requires a common power terminal. These inputs are compatible with 10-31 VDC signal levels. The module has an off-state voltage max of 5V and an on-state current minimum of 2 mA. Additionally, it comes equipped with diagnostic capabilities, which makes troubleshooting simpler and helps reduce downtime.

Installation and Compatibility

Designed for easy installation, the 1756-IB16S module is mounted in a ControlLogix chassis and communicates with the controller through the backplane. It is compatible with a variety of enclosures and can work in harsh industrial environments. The module also supports both point-to-point and network connections, allowing for flexible system configurations.

Robustness and Safety

Allen-Bradley's 1756-IB16S module is built to withstand tough industrial conditions, with a voltage category of 24V DC (Sink/Source). For safety, it has a factory-set feature to ensure electrical isolation between field-side and system-side control components. This isolation helps protect the control system and personnel from electrical shocks and surges.

Programming and Integration

Integrating the 1756-IB16S into a control system is facilitated through the use of Rockwell Automation's Studio 5000 software. This software suite allows for easy programming, configuration, and maintenance of the module. Users can rely on the Studio 5000 environment to create robust applications that take full advantage of the module's features for efficient and effective automation processes.
