Is the Allen-Bradley 1756-IF16H new or used?

We offer the 1756-IF16H in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1756-IF16H?

The 1756-IF16H runs on 0-20 or 4-20 milliamps.

What is the Allen-Bradley 1756-IF16H?

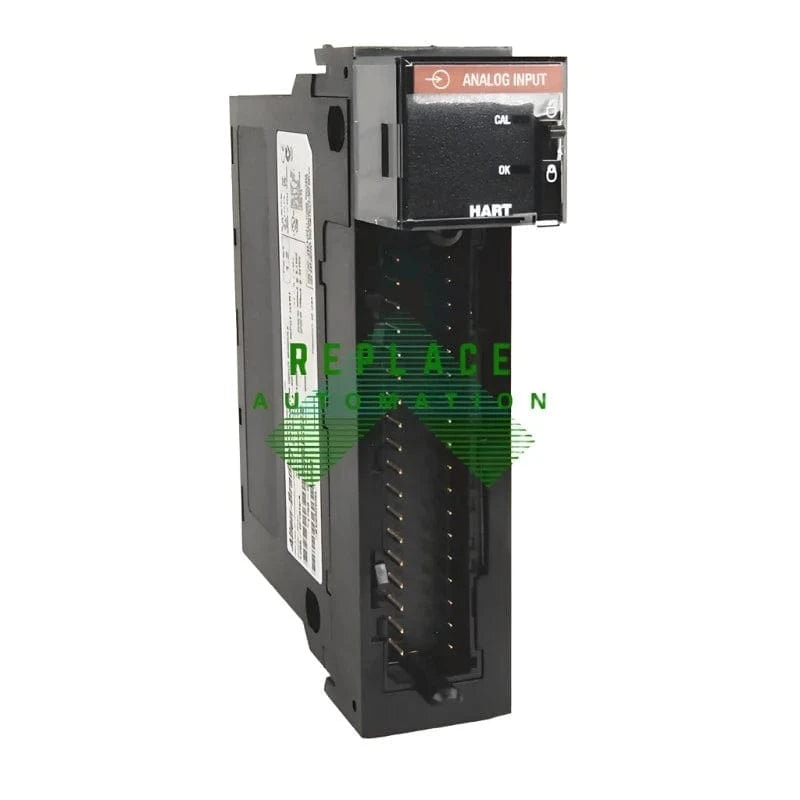

The 1756-IF16H is an Allen-Bradley ControlLogix 1756 Hart Analog Input Module.

UPC	10885630003419
Brand	Allen-Bradley
Inputs	16 Differential
Series	ControlLogix
Enclosure	Open
Resolution	16-21 bits
Module Type	Hart Analog Input Module
Manufacturer	Rockwell Automation
Isolation Voltage	50 Volts Continuous
Input Voltage Range	0-20 or 4-20 milliamps
RSLogix 5000 Software	Verson 8.02.00 or later
Overvoltage Protection	8 Volts DC
Part Number/Catalog No.	1756-IF16H
Removeable Terminal Blocks	1756-TBCH, 1756-TBS6H

Allen-Bradley

1756-IF16H

Rate this product

PLCs ControlLogix 1756

The Allen-Bradley 1756-IF16H is a ControlLogix Hart Analog Input Module designed for precision data gathering, featuring 16 differential inputs, a 0-20 or 4-20 mA voltage range, and a high-resolution of 16-21 bits. It ensures reliability with overvoltage protection up to 8V DC and 50V continuous isolation voltage, compatible with RSLogix 5000 software version 8.02.00 or later.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1756-IF16H

The Allen-Bradley 1756-IF16H is an analog input module part of Rockwell Automation's ControlLogix product line. Designed for flexibility and performance, it caters to a wide array of industrial control systems. The module features 16 differential or single-ended inputs, which can be configured individually to fit various application needs. It is well-suited for applications requiring high accuracy and resolution in measurement of analog signals.

Key Features

The 1756-IF16H module supports High-resolution analog inputs with HART protocol communication capability. This feature allows the module to communicate with HART-enabled field devices to extract additional device status and diagnostic information, beyond the primary process variable. Each channel on the module can be independently configured for current or voltage signals, and it boasts on-board data alarming, scaling, and real-time channel sampling.

Integration and Compatibility

Integration with Rockwell's Studio 5000 Logix Designer software simplifies setup and configuration of the 1756-IF16H. Additionally, the module's compatibility with other products in the ControlLogix family allows for seamless interoperability. This can be crucial for complex systems where various input and output modules must communicate smoothly.

Safety and Diagnostics

The Allen-Bradley 1756-IF16H includes features that emphasize operational safety and proactive diagnostics. It has the capability to detect open wire conditions, over-range, under-range, and other fault conditions, which can help prevent costly downtime. On-device LEDs provide immediate visual indicators of the module status, assisting in rapid troubleshooting.

Applications

Suitable for a variety of industrial environments, the 1756-IF16H module is commonly used in sectors such as oil and gas, chemical processing, and water/wastewater treatment. Its reliable performance in measurement and the added intelligence of HART protocol support make it a go-to choice for precision control and monitoring of analog variables in these demanding applications.
