| UPC | 10612598269218 |
| Brand | Allen-Bradley |
| Inputs | 4 high speed sub-millisecond differential |
| Series | ControlLogix |
| Outputs | 2 high speed current-voltage |
| Module Type | High Speed Analog Input / Ouptut Module |
| Manufacturer | Industrial Automation |
| No. of Outputs | 2 high speed current/ voltage |
| Input Resolution | 14 bits across ±10.5V DC ; 12 bits across 21 mA |
| Output Resolution | 13 bits across 21 mA = 2.8 µA/bit; 14 bits across 21.8V = 1.3 mV/bit |
| Input signals ranges | ± 10V; 0…10V; 0…5V; 0…20 mA |
| Output Signal Ranges | ± 10V; 0…20 mA |
| Programming Software | RSLogix 5000; Studio 5000 Logix Designer |
| RSLogix 5000 Software | Verson 8.02.00 or later |
| Part Number/Catalog No. | 1756-IF4FXOF2F |
| Power Dissipation (Max) | 4.3 Watts (Voltage), 4.7 Watts (Current) |
| Backplane Current (5Volts) | 375 milliamps |
| Removeable Terminal Blocks | 1756-TBCH, 1756-TBS6H |
| Backplane Current (24Volts) | 100 milliamps |
Does the Allen-Bradley 1756-IF4FXOF2F come with a warranty?
Yes. The 1756-IF4FXOF2F is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-IF4FXOF2F a genuine Allen-Bradley part?
The 1756-IF4FXOF2F is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-IF4FXOF2F new or used?
We offer the 1756-IF4FXOF2F in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What is the Allen-Bradley 1756-IF4FXOF2F?
The 1756-IF4FXOF2F is an Allen-Bradley ControlLogix 1756 High Speed Analog Input / Ouptut Module.
How fast does the 1756-IF4FXOF2F ship?
In-stock orders for the 1756-IF4FXOF2F ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

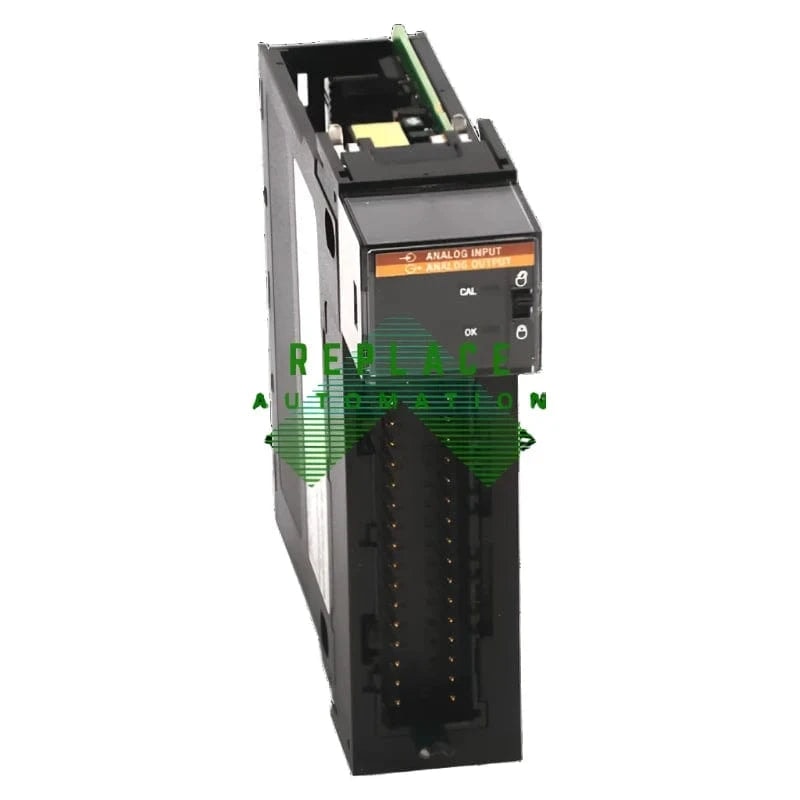

1756-IF4FXOF2F
The Allen-Bradley 1756-IF4FXOF2F is a high-speed analog input/output module designed for the ControlLogix platform. It offers four differential inputs and two high-speed outputs, with input/output signal ranges of ±10V or 0-20mA. This module ensures precise data capture and control with 14-bit input and 13-bit output resolution.
