| UPC | 10885630245420 |
| Brand | Allen-Bradley |
| Inputs | 8 Isolated Channels |
| Series | ControlLogix |
| UNSPSC | 32151705 |
| Resolution | 24 bits 0…510 ?: 0.06 m?/count 0…1020 ?: 0.12 m?/count 0…2040 ?: 0.25 m?/count 0…4080 ?: 0.50 m?/count -101…101 mV: 0.01 ?V/count |
| Data Format | IEEE 32-bit floating point |
| Input Range | 1…500 ? 2…1000 ? 4…2000 ? 8…4000 ? -100…100 mV |
| Module Type | Analog RTD / Thermocouple / milivolt Module |
| Manufacturer | Industrial Automation |
| No. of Inputs | Eight (8) Point Isolated RTD / Thermocouple / milivolt |
| Module Scan Time | 1 ms |
| Isolation Voltage | 250 Volts Continuous |
| Compatible RTD Type | 100, 200, 500, 1000 ? Platinum, alpha=385 100, 200, 500, 1000 ? Platinum, alpha=3916 120 ? Nickel, alpha=672 100, 120, 200, 500 ? Nickel, alpha=618 10 ? Copper, alpha=427 |
| Thermal Dissipation | 15.7 BTU per hour |
| Programming Software | RSLogix 5000; Studio 5000 Logix Designer |
| RSLogix 5000 Software | Verson 8.02.00 or later |
| Current Draw (24 Volts) | 150 milliamps |
| Part Number/Catalog No. | 1756-IRT8I |
| Power Dissipation (Max) | 4.6 W |
| Current Draw (5.1 Volts) | 200 milliamps |
| Removable Terminal Blocks | 1756-TBNH, 1756-TBS6H |
| Backplane Current (5Volts) | 250 mA |
| Power Dissipation (Maximum) | 4.6 Watts |
| Backplane Current (24 Volts) | 150 mA |
| Backplane Current at 24 Volts | 2 milliamps |
| Compatible Thermocouple Types | B, C, D, E, J, K, N, R, S, T, TXK/XK (L) |
Does the Allen-Bradley 1756-IRT8I come with a warranty?
Yes. The 1756-IRT8I is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-IRT8I a genuine Allen-Bradley part?
The 1756-IRT8I is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-IRT8I new or used?
We offer the 1756-IRT8I in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-IRT8I?
The 1756-IRT8I draws 150 milliamps.
What is the Allen-Bradley 1756-IRT8I?
The 1756-IRT8I is an Allen-Bradley ControlLogix 1756 Analog RTD / Thermocouple / milivolt Module.

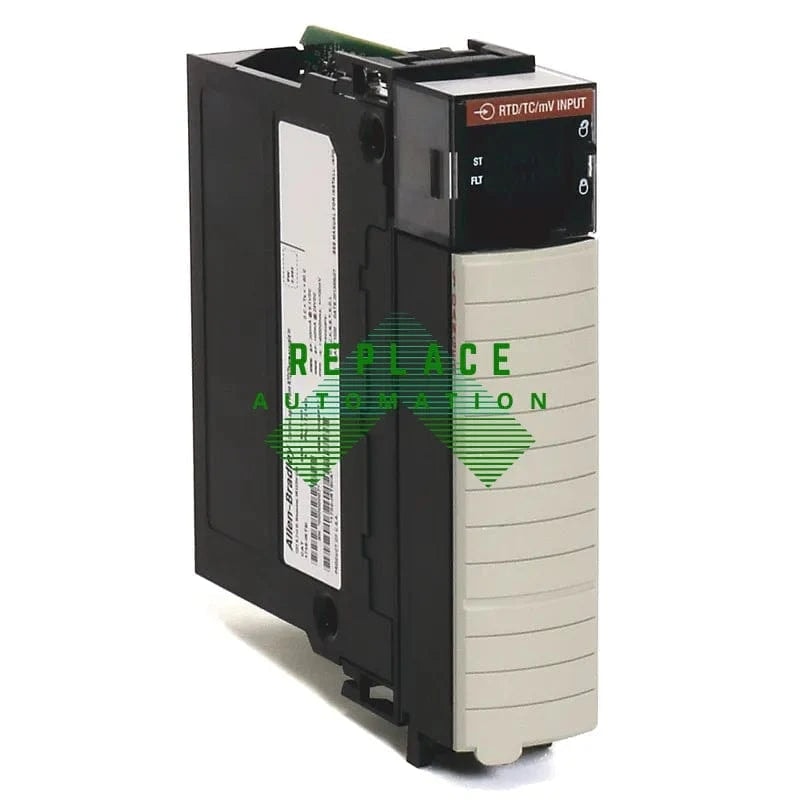

1756-IRT8I
The Allen-Bradley 1756-IRT8I is a ControlLogix module with eight isolated analog RTD, thermocouple, and millivolt input channels. Compatible with a variety of RTD and thermocouple types, it offers 24-bit resolution and requires RSLogix 5000 software version 8.02.00 or later for programming.
