| UPC | 10612598264343 |
| Brand | Allen-Bradley |
| Inputs | 16 |
| Series | ControlLogix |
| Module Type | Digital DC Input Module |
| Manufacturer | Rockwell Automation |
| Input Voltage | 12-24 Volts DC |
| Input Delay Time | 2 milliseconds plus selected filter time |
| RSLogix 5000 Software | Verson 8.02.00 or later |
| Operating Voltage Range | 10-30 Volts DC |
| Part Number/Catalog No. | 1756-IV16 |
| Power Dissipation (Max) | 5.41 Watts at 60 degrees Celsius |
| Maximum Operating Current | 10 milliamps at 30 Volts DC |
| Minimum Operating Current | 2 milliamps at 10 Volts DC |
| Backplane Current at 5 Volts | 110 milliamps |
| Backplane Current at 24 Volts | 2 milliamps |
| Maximum Input Current, Off-State | 1.5 milliamps |
Does the Allen-Bradley 1756-IV16 come with a warranty?
Yes. The 1756-IV16 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-IV16 a genuine Allen-Bradley part?
The 1756-IV16 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-IV16 new or used?
We offer the 1756-IV16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-IV16?
The 1756-IV16 runs on 12-24 Volts DC and draws 1.5 milliamps.
What is the Allen-Bradley 1756-IV16?
The 1756-IV16 is an Allen-Bradley ControlLogix 1756 Digital DC Input Module.

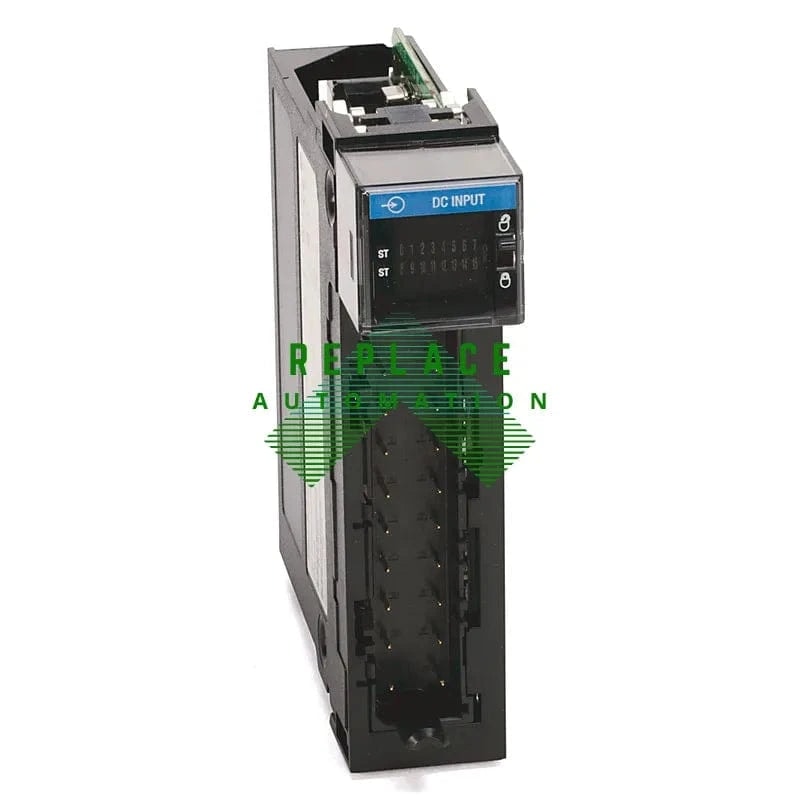

1756-IV16
The Allen-Bradley 1756-IV16 ControlLogix module provides 16 DC digital inputs, compatible with 12-24V DC and operates optimally within a 10-30V DC range. With an input delay of 2ms, it demands a minimal operating current of 2mA at 10V DC, capping at 10mA at 30V DC. It is configurable with RSLogix 5000 software version 8.02.00 or later.
