| UPC | 10612598172396 |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Enclosure | None |
| Input Type | Encoder input: Incremental AB quadraturewith marker |
| Module Type | Servo Analog Encoder Module |
| Manufacturer | Rockwell Automation |
| Axes per Module | Two (2) |
| Discrete Output | Solid-state isolated relay contact |
| Isolation Voltage | 50 Volts Continuous |
| Operating voltage | 24V DC (Class 2 source) |
| Power Dissipation | 6.2 Watts |
| Servo Output Type | Analog voltage |
| Axes per Controller | Thirty-Two (32) |
| Discrete Input type | Optically isolated, current sinking |
| Thermal Dissipation | 21.2 BTU-hour |
| Part Number/Catalog No. | 1756-M02AE |
| Servo Output Resolution | 16 Bits |
| Current Draw (5.1 Volts) | 1.2 amps |
| Backplane Current (5Volts) | 700 mA |
| Removeable Terminal Blocks | Removeable Terminal Blocks |
| Backplane Current (24Volts) | 2.5 mA |
| Discrete Input operating Voltage | 24VDC |
Does the Allen-Bradley 1756-M02AE come with a warranty?
Yes. The 1756-M02AE is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-M02AE a genuine Allen-Bradley part?
The 1756-M02AE is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-M02AE new or used?
We offer the 1756-M02AE in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-M02AE?
The 1756-M02AE runs on 24V DC (Class 2 source) and draws 1.2 amps.
What is the Allen-Bradley 1756-M02AE?
The 1756-M02AE is an Allen-Bradley ControlLogix 1756 Servo Analog Encoder Module.
1756-M02AE

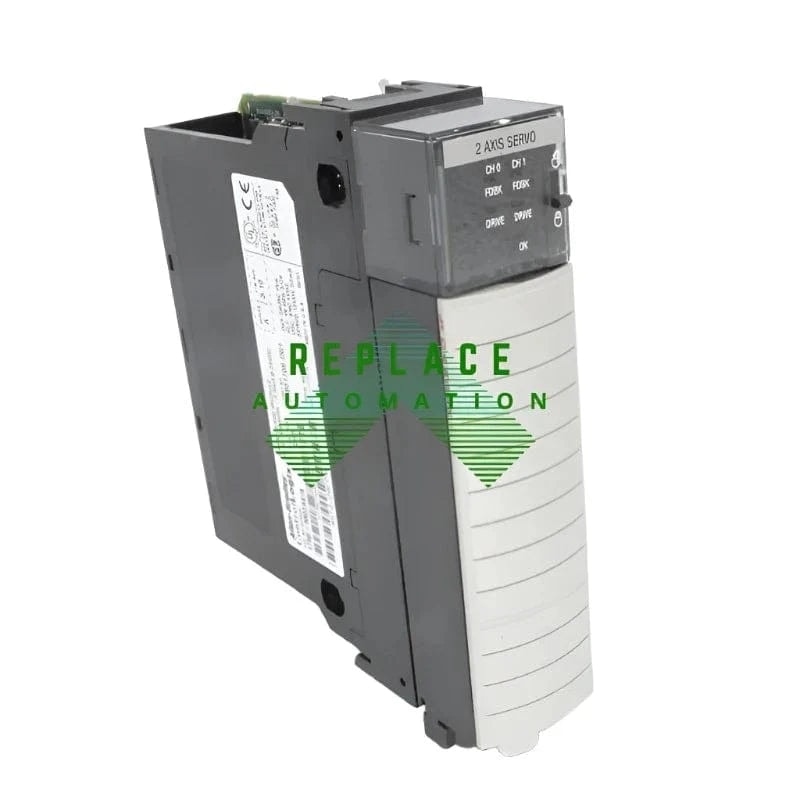

The Allen-Bradley 1756-M02AE is a ControlLogix Servo Analog Encoder Module designed by Rockwell Automation to manage two axes, scalable to thirty-two per controller. It supports incremental AB quadrature inputs with marker and outputs analog signals at 16-bit resolution, operating with 24V DC and featuring optically isolated inputs and relay contact outputs.
