| UPC | 10612598171368 |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Outputs | 16-Points |
| Voltage | 120-140 Volts AC |
| Enclosure | None |
| Module Type | Digital AC Output Module |
| Manufacturer | Rockwell Automation |
| No. of Outputs | Sixteen (16) mechanically fused |
| Voltage Category | 120 / 240 Volts AC |
| Current per point | 0.5 A @ 60 °C (140 °F) |
| Isolation Voltage | 50 Volts Continuous |
| Output Delay Time | Programmable 9.3 or 11 milliseconds |
| Current per module | 4 A @ 60 °C (140 °F) |
| Programming software | RSLogix 5000 SoftwareVerson 8.02.00 or later; Studio 5000 Logix Designer |
| Operating Voltage Range | 74-265 Volts AC |
| Part Number/Catalog No. | 1756-OA16 |
| Power Dissipation (Max) | 6.5 W @ 60 °C (140 °F) |
| Removable Terminal Block(s) | 1756-TBCH, 1756-TBSH |
| Backplane Current at 5 Volts | 400 mA |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Backplane Current at 24 Volts | 2 mA |
| Maximum Output Current Rating-Point | 0.5 Amps at 60 degrees Celsius |
| Maximum Output Current Rating-Module | 4 Amps at 60 degrees Celsius |
Does the Allen-Bradley 1756-OA16 come with a warranty?
Yes. The 1756-OA16 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-OA16 a genuine Allen-Bradley part?
The 1756-OA16 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-OA16 new or used?
We offer the 1756-OA16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-OA16?
The 1756-OA16 runs on 74-265 Volts AC and draws 0.5 Amps at 60 degrees Celsius.
What is the Allen-Bradley 1756-OA16?
The 1756-OA16 is an Allen-Bradley ControlLogix 1756 Digital AC Output Module.

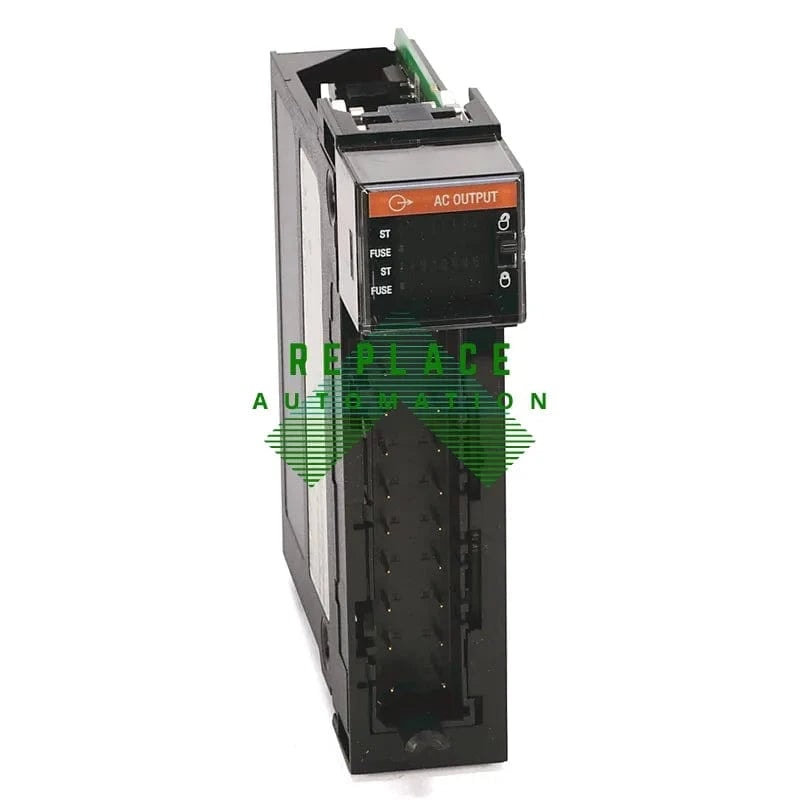

1756-OA16
The Allen-Bradley 1756-OA16 is a 16-point digital AC output module from Rockwell Automation's ControlLogix series, facilitating reliable interfacing with 120-240 Volts AC loads. Each output supports 0.5 A at 60°C with mechanical fusing, and it utilizes RSLogix 5000 or Studio 5000 Logix Designer for programming.
