| Brand | Allen-Bradley |
| Series | ControlLogix |
| Outputs | 16 Points Individually Isolated |
| Voltage | 120-240 Volts AC |
| Enclosure | None |
| Module Type | Isoloated AC Output Module |
| Manufacturer | Rockwell Automation |
| Isolation Voltage | 50 Volts Continuous |
| Operating Voltage Range | 74-265 Volts AC |
| Part Number/Catalog No. | 1756-OA16IK |
| Power Dissipation (Max) | 5.5 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 300 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Backplane Current at 24 Volts | 3 milliamps |
| Maximum Output Current Rating-Point | 2 Amps at 30 degrees Celsius, 1 Amp at 60 degrees Celsius |
| Maximum Output Current Rating-Module | 5 Amps at 30 degrees Celsius, 4 Amps at 60 degrees Celsius |
Does the Allen-Bradley 1756-OA16IK come with a warranty?
Yes. The 1756-OA16IK is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-OA16IK a genuine Allen-Bradley part?
The 1756-OA16IK is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-OA16IK new or used?
We offer the 1756-OA16IK in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-OA16IK?
The 1756-OA16IK runs on 74-265 Volts AC and draws 2 Amps at 30 degrees Celsius, 1 Amp at 60 degrees Celsius.
What is the Allen-Bradley 1756-OA16IK?
The 1756-OA16IK is an Allen-Bradley ControlLogix 1756 Isoloated AC Output Module.

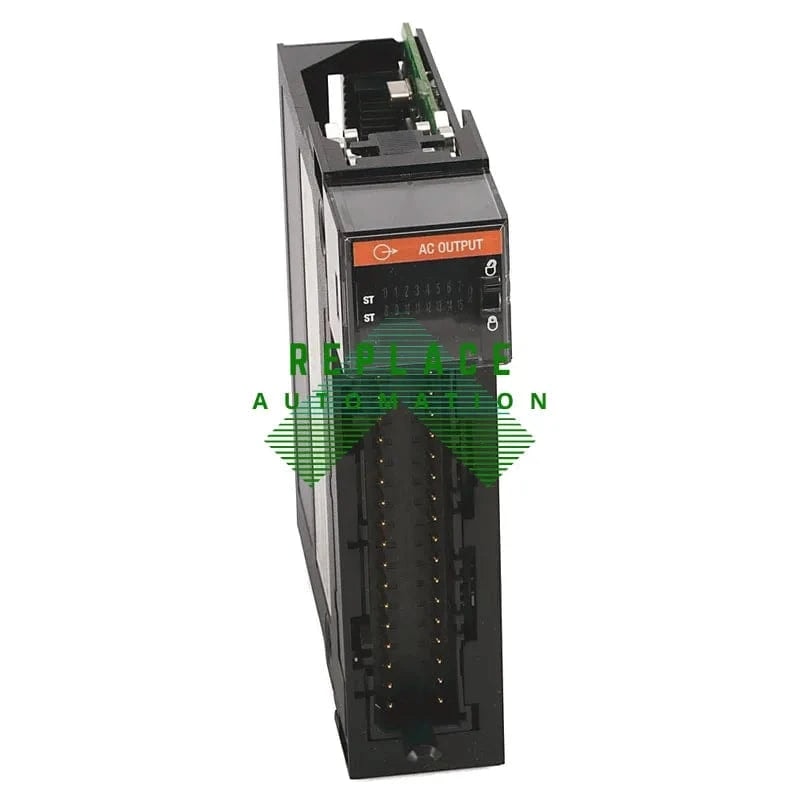

1756-OA16IK
The Allen-Bradley 1756-OA16IK is a Rockwell Automation ControlLogix isolated AC output module featuring 16 individually isolated outputs, handling 120-240V AC within a 74-265V AC range. This module supports up to 2A output per point and 5A per module at 30°C, with power dissipation up to 5.5W. It includes removable terminal blocks 1756-TBCH and 1756-TBS6H.
