| UPC | 10612598164544 |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Outputs | 16-Point Individually Isolated |
| Voltage | 12-24 Volts DC Sink-Source |
| Enclosure | None |
| Module Type | Isoloated DC Output Module |
| Manufacturer | Rockwell Automation |
| Current per point | 2 A @ 30 °C (86 °F) 1 A @ 60 °C (140 °F)(linear derating) |
| Isolation Voltage | 50 Volts Continuous |
| Current per module | 8 A @ 30 °C (86 °F) 4 A @ 60 °C (140 °F) (linear derating) |
| Operating Voltage Range | 10-30 Volts DC |
| Part Number/Catalog No. | 1756-OB16I |
| Power Dissipation (Max) | 3.6 Watts at 60 Celsius |
| Backplane Current at 5 Volts | 350 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Backplane Current at 24 Volts | 3 milliamps |
| Output Delay Time ( OFF to ON) | 1 ms max |
| Output Delay Time ( ON to OFF) | 2 ms max |
| Maximum Output Current Rating-Point | 2 Amps at 30 degrees Celsius, 1 Amp at 60 degrees Celsius |
| Maximum Output Current Rating-Module | 8 Amps at 30 degrees Celsius and 4 Amps at 60 degrees Celsius |
Does the Allen-Bradley 1756-OB16I come with a warranty?
Yes. The 1756-OB16I is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-OB16I a genuine Allen-Bradley part?
The 1756-OB16I is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-OB16I new or used?
We offer the 1756-OB16I in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-OB16I?
The 1756-OB16I runs on 10-30 Volts DC and draws 2 Amps at 30 degrees Celsius, 1 Amp at 60 degrees Celsius.
What is the Allen-Bradley 1756-OB16I?
The 1756-OB16I is an Allen-Bradley ControlLogix 1756 Isoloated DC Output Module.

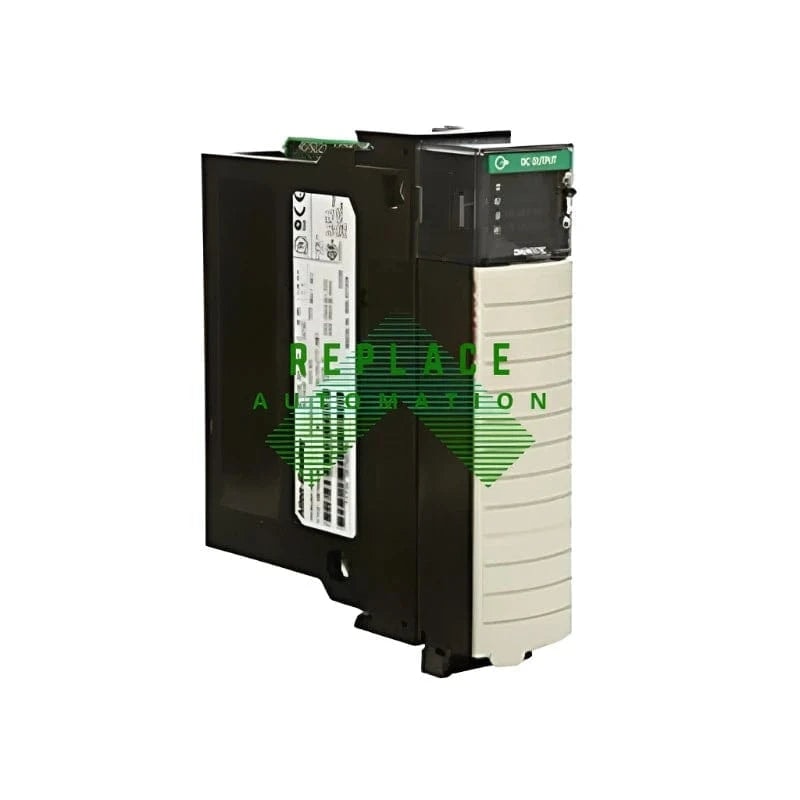

1756-OB16I
The Allen-Bradley 1756-OB16I is a Rockwell Automation ControlLogix isolated DC output module with 16 individually isolated points. It operates on 10-30VDC with sink-source capabilities and a rapid response of up to 1ms ON and 2ms OFF delay times. Boasting a robust 2A per point output current at 30°C, it's designed for high-demand applications.
