| Brand | Allen-Bradley |
| Series | ControlLogix |
| Outputs | 8 Current |
| Enclosure | None |
| esolution | 16-Bit |
| Resolution | 15 bits |
| Data Format | IEEE 32-bit floating point |
| Module Type | Isoloated Analog Output Module |
| Manufacturer | Industrial Automation |
| Output Range | 0-20 or 4-20 milliamps |
| No. of Outputs | Eight (8) Current / Voltage |
| Conversion Method | R-Ladder DAC, monotonicity with no missing codes |
| Isolation Voltage | 50 Volts Continuous |
| Power Dissipation | 6.5 Watts |
| Output Current Range | 0-20 mA; 4-20 mA |
| Output Voltage Range | 10…10V; 0…10V; 0…5V |
| Open circuit detection | Current only |
| Overvoltage protection | ±30V DC (voltage/current) |
| Part Number/Catalog No. | 1756-OF8I |
| Short circuit detection | Voltage only |
| Current Draw (24 Volts DC) | 400 milliamps |
| Removable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
Does the Allen-Bradley 1756-OF8I come with a warranty?
Yes. The 1756-OF8I is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-OF8I a genuine Allen-Bradley part?
The 1756-OF8I is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-OF8I new or used?
We offer the 1756-OF8I in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-OF8I?
The 1756-OF8I draws 0-20 mA; 4-20 mA.
What is the Allen-Bradley 1756-OF8I?
The 1756-OF8I is an Allen-Bradley ControlLogix 1756 Isoloated Analog Output Module.

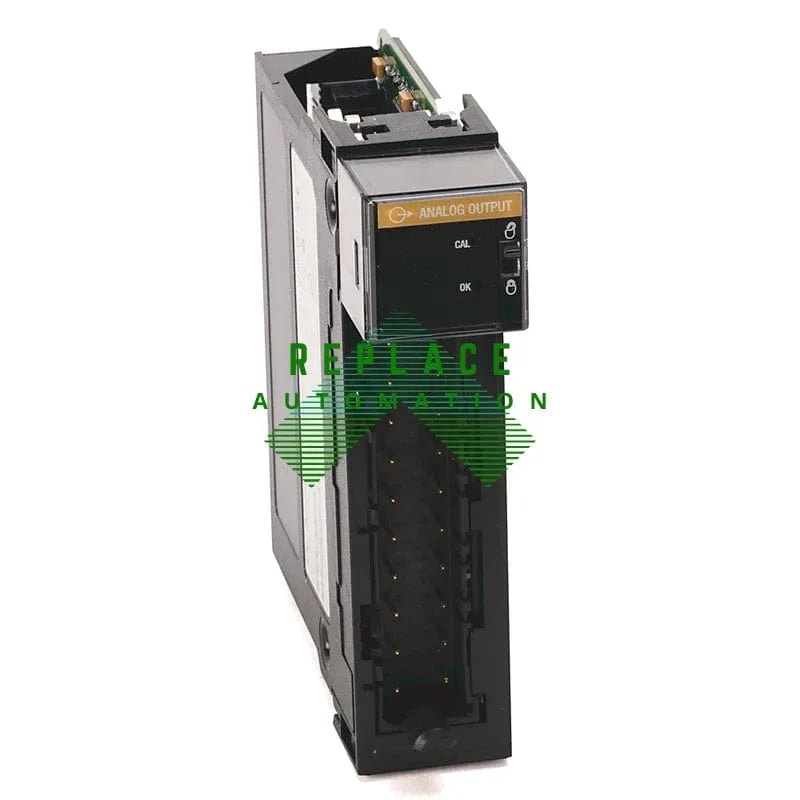

1756-OF8I
Industrial Automation offers the non-affiliated Allen-Bradley 1756-OF8I ControlLogix module, featuring eight isolated analog outputs for precise control in automation systems. It supports a range of current and voltage outputs, with high-resolution conversion and built-in protections, all requiring a minimal power draw of just 6.5 watts.
