| UPC | 10612598264367 |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Outputs | 16-Point Electronically Fused |
| Voltage | 12-24 Volts DC Sink |
| Enclosure | None |
| Module Type | Electronically Fused Sinking Output Module |
| Manufacturer | Rockwell Automation |
| Isolation Voltage | 50 Volts Continuous |
| Operating Voltage Range | 10-30 Volts DC |
| Part Number/Catalog No. | 1756-OV16E |
| Power Dissipation (Max) | 6.72 Watts at 60 Celsius |
| Backplane Current at 5 Volts | 210 milliamps |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Maximum Output Current Rating-Point | 1 Amp at 60 Celsius |
| Maximum Output Current Rating-Module | 8 Amps at 60 Celsius |
Does the Allen-Bradley 1756-OV16E come with a warranty?
Yes. The 1756-OV16E is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-OV16E a genuine Allen-Bradley part?
The 1756-OV16E is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-OV16E new or used?
We offer the 1756-OV16E in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-OV16E?
The 1756-OV16E runs on 10-30 Volts DC and draws 1 Amp at 60 Celsius.
What is the Allen-Bradley 1756-OV16E?
The 1756-OV16E is an Allen-Bradley ControlLogix 1756 Electronically Fused Sinking Output Module.

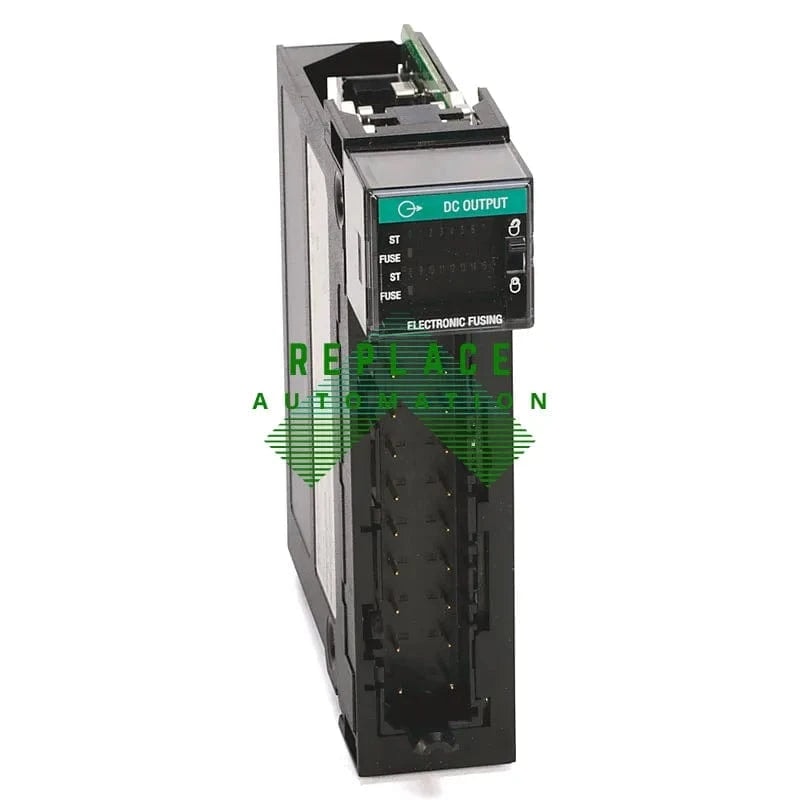

1756-OV16E
The Allen-Bradley 1756-OV16E, part of Rockwell Automation's ControlLogix series, is a 16-point electronically fused sinking output module. It operates within a voltage range of 10-30V DC and handles up to 1 Amp per point at 60°C, with a total module capacity of 8 Amps. This module features a maximum power dissipation of 6.72 Watts and is compatible with 1756-TBNH and 1756-TBSH terminal blocks.
