| Brand | Allen-Bradley |
| Series | ControlLogix |
| Weight | 2.10 lbs (0.95 kg) |
| Location | 1756 Chassis Left Side |
| Dimensions | 5.51 x 4.41 x 5.71 in (14.0 x 11.2 x 14.5 cm) |
| Module Type | ControlLogix-XT Power Supply |
| Manufacturer | Rockwell Automation |
| Current Capacity | 1.5 A at 1.2 V, 4 A at 3.3 V, 8 A at 5.1 V, 1.75 at 24 V |
| Isolation Voltage | 250 Volts Continuous |
| Nom Input Voltage | 24 Volts DC |
| Max Inrush Current | 20 Amperes |
| Input Voltage Range | 18-32 Volts DC |
| Part Number/Catalog No. | 1756-PB30XT |
Does the Allen-Bradley 1756-PB30XT come with a warranty?
Yes. The 1756-PB30XT is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-PB30XT a genuine Allen-Bradley part?
The 1756-PB30XT is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-PB30XT new or used?
We offer the 1756-PB30XT in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-PB30XT?
The 1756-PB30XT runs on 24 Volts DC.
What is the Allen-Bradley 1756-PB30XT?
The 1756-PB30XT is an Allen-Bradley ControlLogix 1756 ControlLogix-XT Power Supply.

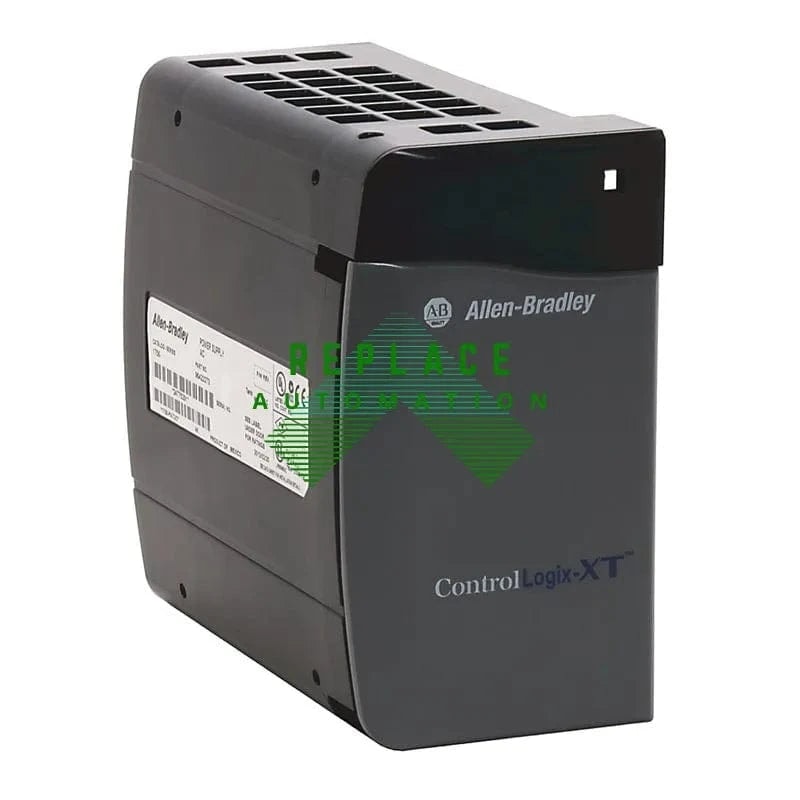

1756-PB30XT
The Allen-Bradley 1756-PB30XT, crafted by Rockwell Automation, is a robust ControlLogix-XT Power Supply module designed for industrial settings. Installing to the left side of a 1756 chassis, it operates on 24V DC with a range of 18-32V DC, providing multiple output currents up to 8 A at 5.1V. With an isolation voltage of 250V, it sustains demanding environments and measures 5.51 x 4.41 x 5.71 inches at a weight of 2.10 lbs.
All products are covered by our 2-Year (24-Month) Replace Industrial Warranty. If a unit is found defective under normal use within the warranty period, we repair or replace it at no additional cost, and a unit may be returned for a full refund within 30 days if returned in the same condition it was sent.
Replace Industrial is an independent distributor and does not convey the manufacturer's warranty; all warranties are provided by Replace Industrial alone. Read the full warranty policy
