Manufacturer	Allen-Bradley
Product Type	Input Module
Product Line	ControlLogix
Part Number	1756-IG16K
Weight	0.69 lbs (0.31 kg)
Number of Input Points	16
Input Type	DC Digital Input
Voltage Rating	5 V DC
Signal Type	TTL (Transistor-Transistor Logic)
Current Type	Current Sourcing
Coating Type	Conformal Coating
Storage Humidity	80% Max. (Non-Condensing)
Installation Altitude	1000 MSL
Operating Humidity Range	80% Max. (Non-Condensing)
Minimum Storage Temperature	0 °C
Maximum Storage Temperature	40 °C

What type of input signals does the 1756-IG16K module support?

The 1756-IG16K is a DC digital input module that supports 16 points of 5 V DC TTL (Transistor-Transistor Logic) signals using current sourcing technology.

Is the 1756-IG16K compatible with the ControlLogix system?

Yes, the 1756-IG16K is a module designed specifically for Allen-Bradley's ControlLogix PLC system.

What are the environmental operating and storage limits for the 1756-IG16K?

The module is designed to operate and store at a maximum humidity of 80% (non-condensing). It can be installed at altitudes up to 1000 meters above sea level and must be stored at temperatures between 0 °C and 40 °C.

Does the 1756-IG16K have any special protective features?

Yes, the module features a conformal coating to enhance protection against environmental factors and improve durability in industrial settings.

What is the weight of the 1756-IG16K module?

The 1756-IG16K module weighs approximately 0.69 lbs (0.31 kg).

Does the Allen-Bradley 1756-IG16K come with a warranty?

Yes. The 1756-IG16K is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.

Is this 1756-IG16K a genuine Allen-Bradley part?

The 1756-IG16K is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.

Is the Allen-Bradley 1756-IG16K new or used?

We offer the 1756-IG16K in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What is the Allen-Bradley 1756-IG16K?

The 1756-IG16K is an Allen-Bradley ControlLogix 1756 Input Module.

How fast does the 1756-IG16K ship?

In-stock orders for the 1756-IG16K ship the same day when placed before our daily cutoff. Expedited and same-day air options are available if you are facing downtime, with no rush fees. Our team is based in Raleigh, North Carolina.

Allen-Bradley

1756-IG16K

Rate this product

PLCs ControlLogix 1756

The 1756-IG16K is a module for Allen-Bradley's ControlLogix PLC system, providing 16 isolated voltage inputs. It allows for high-density signal collection with diagnostic capabilities, integrating seamlessly with industrial automation and control environments, ensuring reliable, real-time digital input monitoring for complex machinery and processes.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

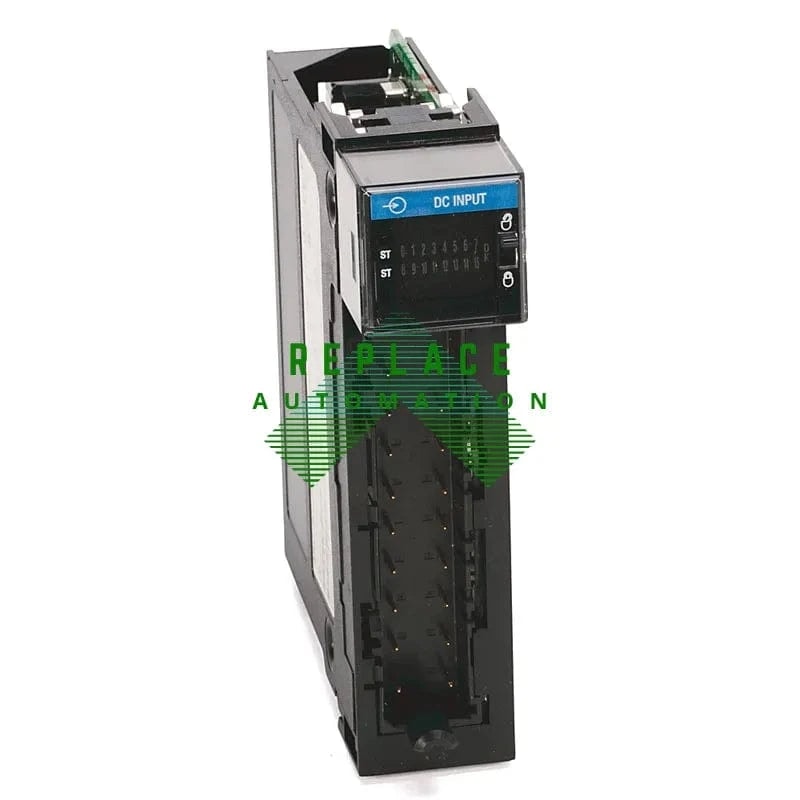

Overview of Allen-Bradley 1756-IG16K

The 1756-IG16K is a DC digital input module designed for the Allen-Bradley ControlLogix system. It provides 16 isolated input points, allowing for high-density signal collection within industrial automation environments. This module is engineered to facilitate accurate data processing and reliable real-time digital input monitoring for complex machinery and processes.

Key Features

Featuring a conformal coating, the 1756-IG16K offers enhanced protection against environmental factors, improving durability in industrial settings. The module utilizes current sourcing technology to effectively drive input signals, ensuring consistent performance. It is designed to handle a maximum humidity level of 80% (non-condensing) during both operation and storage, ensuring reliable functionality in humid environments.

Performance and Capacity

The module operates at a consistent voltage rating of 5 V DC and supports Transistor-Transistor Logic (TTL) signal types. It accommodates up to 16 DC digital input points, providing a robust solution for efficient monitoring and control. The 1756-IG16K is built to endure storage conditions ranging from 0 °C to 40 °C, ensuring it remains operational after being stored in a range of temperatures.

Installation and Compatibility

Designed for the ControlLogix product line, the 1756-IG16K integrates seamlessly with industrial automation and control environments. It is built to be installed at altitudes up to 1000 meters above sea level without affecting performance. The module weighs approximately 0.69 lbs (0.31 kg), making it a compact addition to PLC racks.

Applications and Industries

The 1756-IG16K is a robust choice for applications requiring efficient monitoring and control while maintaining necessary environmental resistance. Its design supports various industrial applications where reliable digital input monitoring is critical for the operation of complex machinery and processes.
