| UPC | 10612598172600 |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| UNSPSC | 32151706 |
| Weight | 0.95 kg (2.10 lb) |
| Chassis | Series A |
| Location | 1756 Chassis Left Side |
| Enclosure | None |
| Dimensions | 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.) |
| Input Power | 95 Watts |
| Module Type | Standard DC Power Supply |
| Hold Up time | 35 ms @ 18V DC; 40 ms @ 24V DC; 40 ms @ 32V DC |
| Manufacturer | Industrial Automation |
| Power Output | 75 Watts at 60 Celsius |
| Input Voltage | 24 Volts DC |
| Voltage Range | 18-32 Volts DC |
| Current Capacity | 1.5A at 1.2V; 2A at 3.3V; 8 A @ 50 °C (122 °F) 6 A @ 60 °C (140 °F) at 5.1V and 2.5 A @ 50 °C (122 °F) 2.0 A @ 60 °C (140 °F) at 24V |
| Isolation Voltage | 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s |
| Max Inrush Current | 30 Amperes |
| Chassis Compatibility | 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Part Number/Catalog No. | 1756-PB72 |
Does the Allen-Bradley 1756-PB72 come with a warranty?
Yes. The 1756-PB72 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-PB72 a genuine Allen-Bradley part?
The 1756-PB72 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-PB72 new or used?
We offer the 1756-PB72 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-PB72?
The 1756-PB72 runs on 24 Volts DC and operates across 32-140 Fahrenheit (0-60 Celsius).
What is the Allen-Bradley 1756-PB72?
The 1756-PB72 is an Allen-Bradley ControlLogix 1756 Standard DC Power Supply.

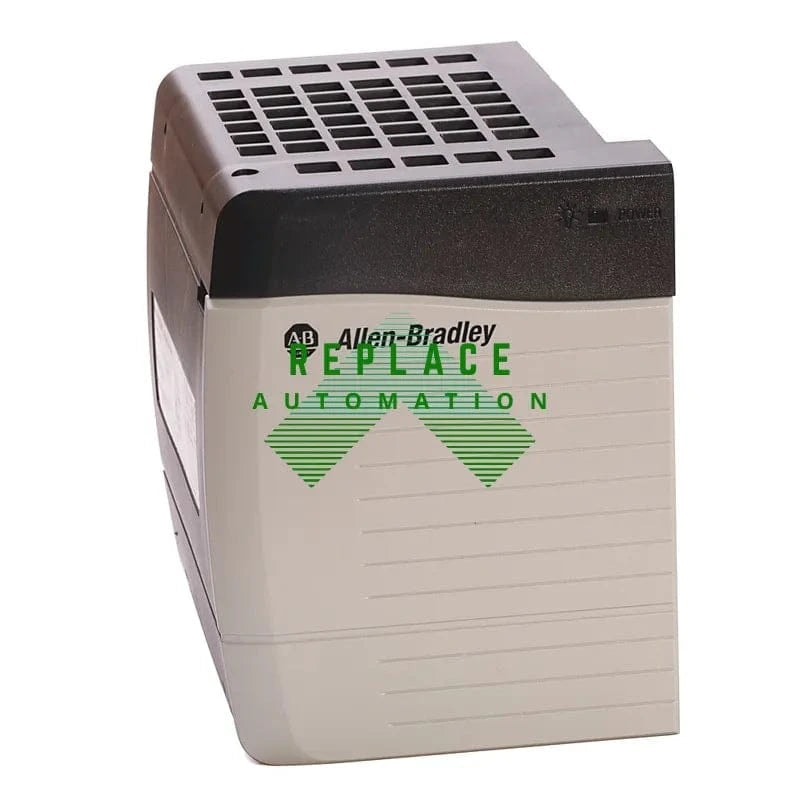

1756-PB72
The Allen-Bradley 1756-PB72 by Industrial Automation is a robust, standard DC power supply for ControlLogix systems. It delivers a steady 24V DC from an 18-32V range and outputs up to 75W at 60°C with reinforced insulation. Designed for 1756 chassis, this module ensures reliable performance with a maximum inrush current of 30A.
