| UPC | 10612598171856 |
| Pins | 20-Pin Connection |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Weight | 0.3 pounds (0.1 kilograms) |
| Enclosure | None |
| Wire Size | 20 AWG |
| Clamp Type | Screw-Clamp |
| Dimensions | 5.51 x 4.41 x 5.71 inches |
| Module Type | Terminal Block |
| Manufacturer | Rockwell Automation |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Part Number/Catalog No. | 1756-TBNH |
| Power Dissipation (Max) | 6.19 Watts |
| Backplane Current (5Volts) | 1,200 milliamps |
| Backplane Current (24 Volts) | 2.5 milliamps |
Does the Allen-Bradley 1756-TBNH come with a warranty?
Yes. The 1756-TBNH is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1756-TBNH a genuine Allen-Bradley part?
The 1756-TBNH is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1756-TBNH new or used?
We offer the 1756-TBNH in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1756-TBNH?
The 1756-TBNH operates across 32-140 Fahrenheit (0-60 Celsius).
What is the Allen-Bradley 1756-TBNH?
The 1756-TBNH is an Allen-Bradley ControlLogix 1756 Terminal Block.

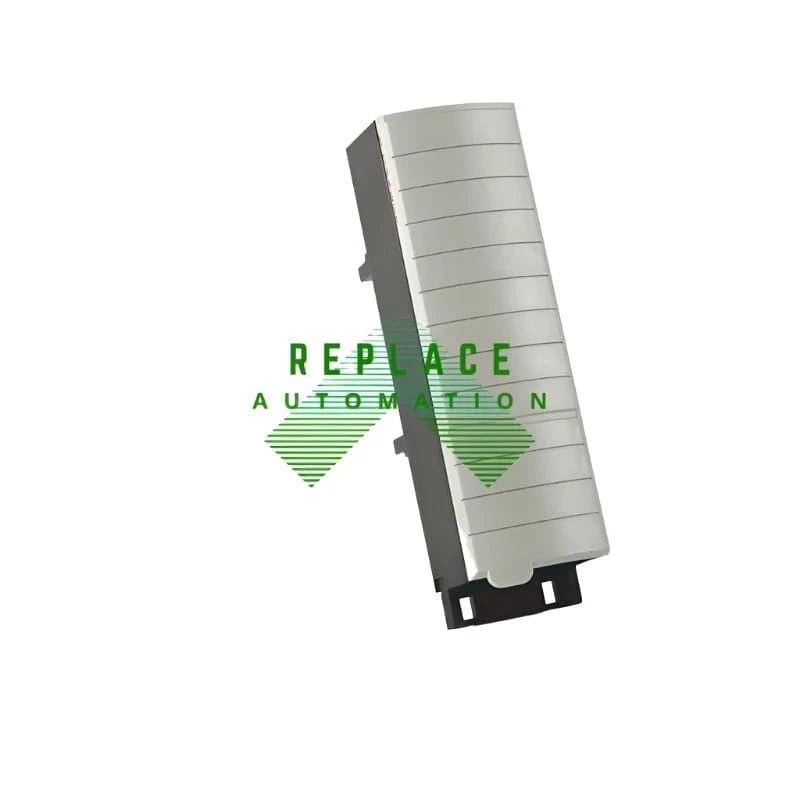

1756-TBNH
The Allen-Bradley 1756-TBNH, part of the ControlLogix series by Rockwell Automation, is a 20-pin screw-clamp terminal block designed to streamline connections. Weighing 0.3 pounds, it supports maximum power dissipation of 6.19 Watts and accommodates 20 AWG wires. Dimensioned at 5.51 x 4.41 x 5.71 inches, it operates between 32-140°F.
