Is the Allen-Bradley 1762-IQ16 new or used?

We offer the 1762-IQ16 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.

What are the key ratings of the 1762-IQ16?

The 1762-IQ16 carries IP20 protection and runs on 10â€¦30V DC; 10â€¦26.4V DC.

What is the Allen-Bradley 1762-IQ16?

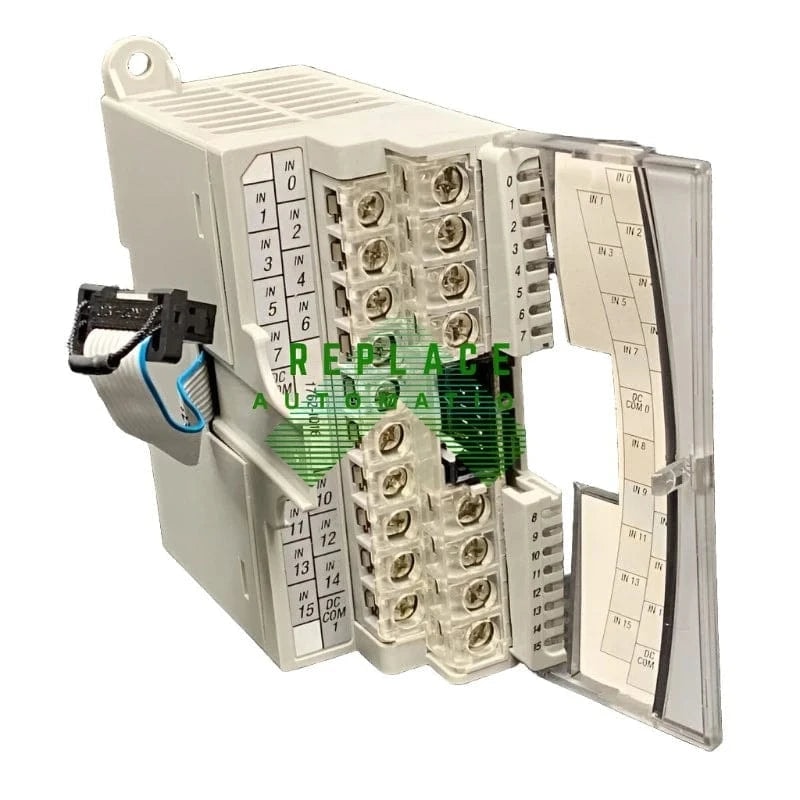

The 1762-IQ16 is an Allen-Bradley MicroLogix 1200 Discrete Input Module.

UPC	10611320152132
Brand	Allen-Bradley
Inputs	(16) Sinking and Sourcing Inputs
Series	A and B
Commons	2
Outputs	10 to 30 Volts DC
Dimensions	3.54 x 1.59 x 3.43 in (HxWxD)
Input Power	24 Volts DC
Manufacturer	Rockwell Automation
Product Type	Discrete Input Module
Signal Delay	8.0 ms
Product Family	MicroLogix
Enclosure Rating	IP20
On-State Current, max	2.0 mA min @ 10V DC; 8.0 mA nom @ 24V DC; 12.0 mA max @ 30V DC;
On-State voltage, min	10V DC
Compatible Controllers	MicroLogix 1100, 1200 and 1400
Off-State current, max	1.5 mA
Off-State voltage, max	5V DC
Operating Voltage Range	10â€¦30V DC; 10â€¦26.4V DC
Part Number/Catalog No.	1762-IQ16

Allen-Bradley

1762-IQ16

Rate this product

PLCs MicroLogix 1200

The Allen-Bradley 1762-IQ16 is a discrete input module from the MicroLogix family, designed for use with MicroLogix 1100, 1200, and 1400 controllers. It features 16 sinking and sourcing inputs, operates on 24V DC power, and offers a compact size of 3.54 x 1.59 x 3.43 inches with an IP20 enclosure rating.

PDF

We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.

If you have already placed an order, please send us your form and we can refund the charged taxes.

Overview of Allen-Bradley 1762-IQ16

The Allen-Bradley 1762-IQ16 is a compact digital input module that forms part of the MicroLogix 1200 system. Designed for industrial use, this module provides a reliable solution for integrating digital inputs into a programmable logic controller (PLC) system. The module features 16 inputs, which can accommodate both sinking and sourcing input devices, allowing for versatility in connecting to various types of sensors and switches.

Technical Specifications

The 1762-IQ16 input module operates at a voltage category of 24V DC, with an input voltage range of 10-30V DC. Its 16 inputs are organized into two groups with a common power supply, giving it the flexibility to cater to different types of digital signals within the same module. The Allen-Bradley 1762-IQ16 has a high level of input signal filtering and can identify input states at high speed, making it suitable for applications that require rapid changes in input signals to be detected.

Installation and Operation

Designed for ease of use, the 1762-IQ16 module can be quickly installed onto a DIN rail and seamlessly integrates into the MicroLogix system. Its small form factor is well-suited for control panels with limited space. The module connects to the PLC processor via the 1762 MicroLogix Expansion I/O bus. Users can program and configure the module using RSLogix 500 programming software, which allows for easy setup and troubleshooting within the integrated development environment.

Applications

The Allen-Bradley 1762-IQ16 input module is often used in a variety of industries, including manufacturing, automotive, and material handling. Its robust construction and reliable performance make it suitable for harsh industrial environments where accurate and consistent digital input handling is crucial. With its 16 inputs, it can be tasked with functions such as monitoring limit switches, proximity sensors, and other discrete input devices to facilitate automated processes and machinery control.
