| UPC | 10611320023616 |
| Brand | Allen-Bradley |
| Ports | RS-232 Serial Ports |
| Series | MicroLogix 1500 |
| Function | Base Controller |
| Mounting | Horizontal |
| Dimensions | 5.43 x 6.62 x 3.43 inches |
| I/O Rating | 12 inputs/ 12 outputs |
| Line Power | 85 to 265 Volts AC |
| Time Clock | 1764-RTC or 1764-MM1RTC |
| Module Type | Base Unit |
| Manufacturer | Industrial Automation |
| Input Voltage | 24 Volts DC |
| No. of Inputs | 12 inputs |
| Output Source | Relay Port |
| Memory Modules | This unit is compatible with (1764-MM1-MM4) Memory Modules |
| No. of Outputs | 12 outputs |
| Input Circuit Type | 24 Volt DC Sink/Source |
| Required Processor | 1764-LRP or 1764-LSP |
| Temperature Rating | 32 to 131 degrees Fahrenheit |
| Operating Frequency | 0 to 20 kHz |
| Power Supply Voltage | 85-265 VAC |
| Compatible Processors | 1764-LSP and 1764-LRP |
| Input channel Voltage | 24V dc, sink/source |
| Configuration Software | RSLogix 500 |
| Max Expanded I/O Count | 512 |
| Output channel Voltage | 24-125VDC; 120-240VAC |
| Part Number/Catalog No. | 1764-24BWA |
| Product Lifecycle Status* | Discontinued/Obsolete |
Does the Allen-Bradley 1764-24BWA come with a warranty?
Yes. The 1764-24BWA is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1764-24BWA a genuine Allen-Bradley part?
The 1764-24BWA is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1764-24BWA new or used?
We offer the 1764-24BWA in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1764-24BWA?
The 1764-24BWA runs on 24 Volts DC and runs at 0 to 20 kHz.
What is the Allen-Bradley 1764-24BWA?
The 1764-24BWA is an Allen-Bradley MicroLogix 1500 Base Unit.

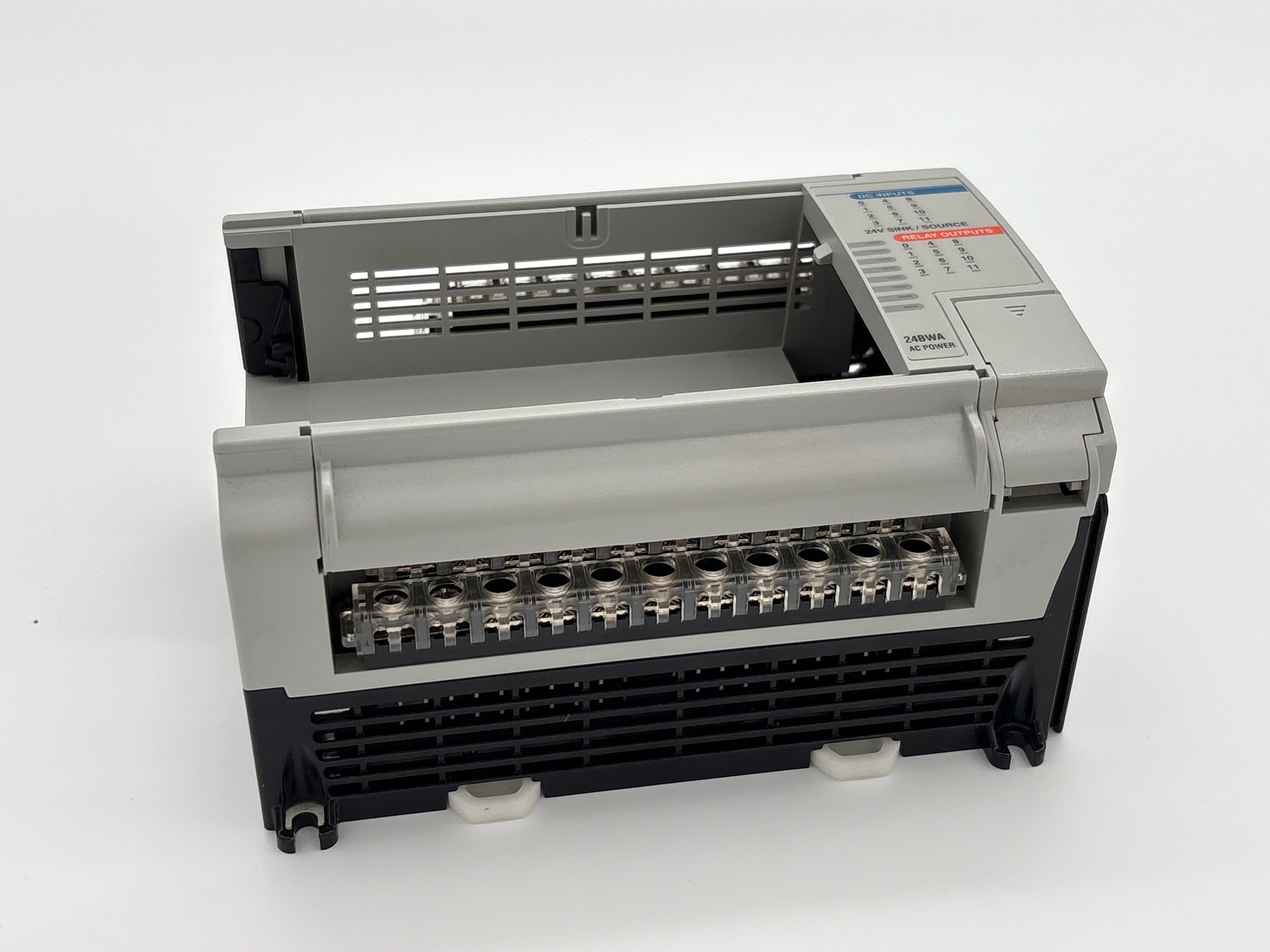

1764-24BWA
The Allen-Bradley 1764-24BWA is a MicroLogix 1500 base controller with 12 DC sink/source inputs, 12 relay outputs, expandable to 512 I/O, featuring a 24VDC input voltage and a power supply of 85-265VAC. It is programmed via RSLogix 500, supports memory modules, a time clock, and discontinued status.
