| UPC | 10612598286215 |
| Brand | Allen-Bradley |
| Inputs | 4 Isolated Differential |
| Series | A and B |
| UNSPSC | 32151705 |
| Software | RSLogix5000 |
| Dimension | 118 mm (height) x 87 mm (depth) x 35 mm (width) [52.5 mm (width) for 1769-IF8] Height including mounting tabs is 138 mm 4.65 in (height) x 3.43 in (depth) x 1.38 in (width) [2.07 in (width) for 1769-IF8] Height including mounting tabs is 5.43 in |
| Wire Type | Copper-90 degrees Celsius |
| Input Type | Analog Input |
| Resolution | 8 bits plus sign (Sign is always positive) |
| Slot width | 1 |
| Module Type | Analog Input/Output Combo Module |
| Manufacturer | Industrial Automation / Allen-Bradley |
| Product Line | CompactLogix |
| Product Type | Analog Input Module |
| No. of Inputs | 4 inputs; Differential or Single Ended |
| Converter Type | Delta Sigma |
| Shipping Weight | 2 pounds |
| Number of outputs | 2 Single ended |
| Recommended cable | Beldenâ„¢ 8761 (shielded) |
| Wire Size (Solid) | 22-14 AWG |
| Channel Diagnostics | Over- or under-range by bit reporting, process alarms |
| Communication Cable | 4 Point |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Programming Software | RSLogix 500; RSLogix 5000; Studio 5000 |
| Compatible Controllers | CompactLogix / MicroLogix 1500 |
| Part Number/Catalog No. | 1769-IF4XOF2 |
| Current signal full range | 0-21 mA; 3.2 - 21 mA. |
| Voltage signal full range | ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC |
| Replacement Terminal Block | 1769-RTBN18 |
| Current signal normal ranges | 0-20mA; 4-20 mA |
| Input / Output current range | 0-21 mA |
| Input / Output voltage range | 0-10.5VDC |
| Power Supply Distance rating | 8 |
| Voltage signal normal ranges | ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC |
Does the Allen-Bradley 1769-IF4XOF2 come with a warranty?
Yes. The 1769-IF4XOF2 is backed by our 24-Month Replace Industrial Warranty, with no rush fees or hidden warranty charges. If a unit fails under normal use within the warranty period, we repair or replace it.
Is this 1769-IF4XOF2 a genuine Allen-Bradley part?
The 1769-IF4XOF2 is sourced and verified independently. Replace Industrial, LLC is not a Rockwell Automation Authorized Distributor, and all warranties are provided directly by Replace Industrial.
Is the Allen-Bradley 1769-IF4XOF2 new or used?
We offer the 1769-IF4XOF2 in multiple conditions, from unused surplus to professionally reconditioned units. Every option is sourced and verified independently and covered by our 2-year replacement warranty.
What are the key ratings of the 1769-IF4XOF2?
The 1769-IF4XOF2 draws 0-21 mA.
What is the Allen-Bradley 1769-IF4XOF2?
The 1769-IF4XOF2 is an Allen-Bradley CompactLogix 1769 Analog Input/Output Combo Module.

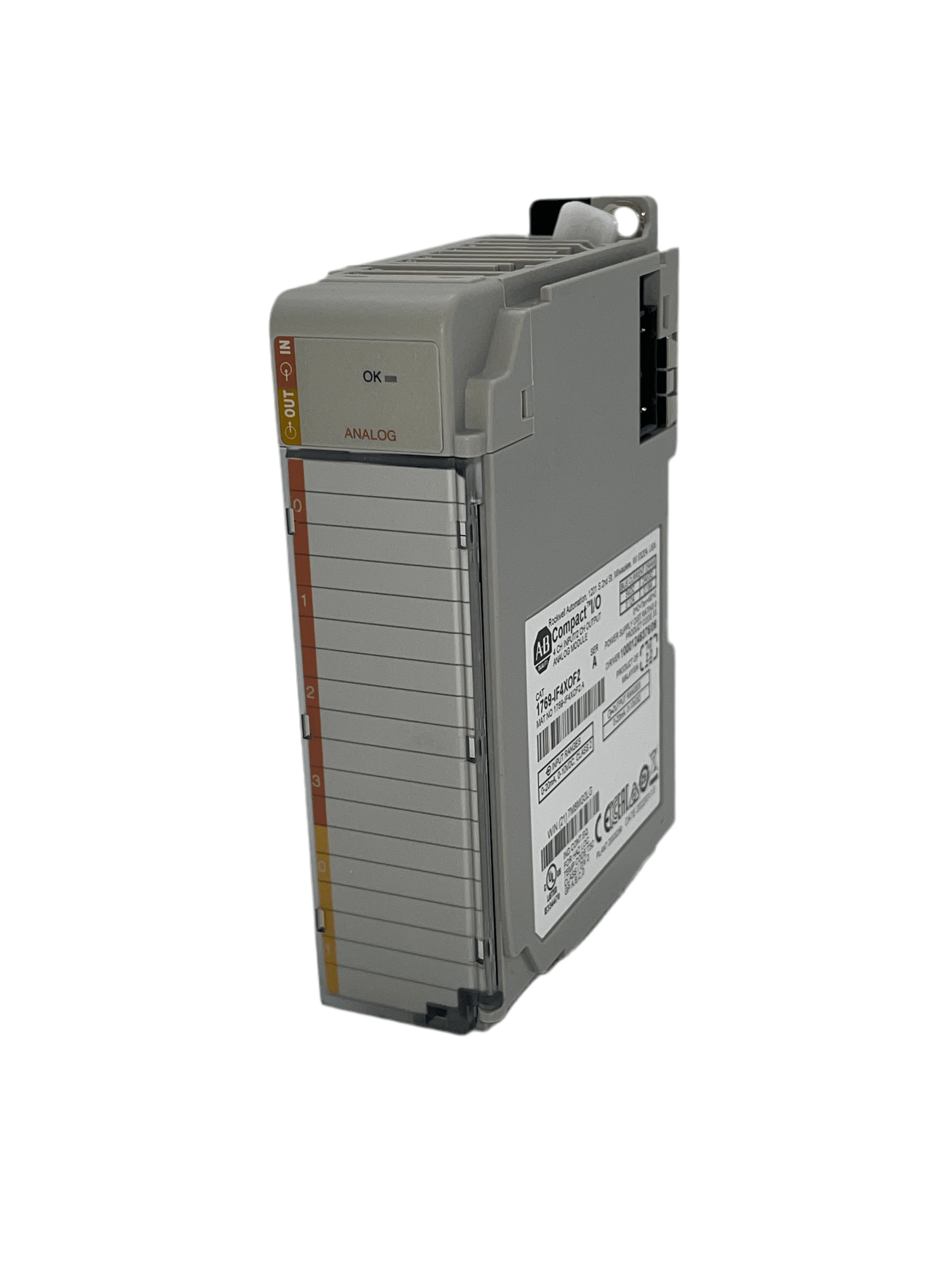

1769-IF4XOF2
The Allen-Bradley 1769-IF4XOF2 is a CompactLogix Analog Input/Output Combo Module offering 4 isolated differential inputs and 2 single ended outputs for versatile signal processing. Compatible with RSLogix5000 software, it supports a range of current and voltage signals, ensuring precise control within industrial automation systems.
All products are covered by our 2-Year (24-Month) Replace Industrial Warranty. If a unit is found defective under normal use within the warranty period, we repair or replace it at no additional cost, and a unit may be returned for a full refund within 30 days if returned in the same condition it was sent.
Replace Industrial is an independent distributor and does not convey the manufacturer's warranty; all warranties are provided by Replace Industrial alone. Read the full warranty policy
